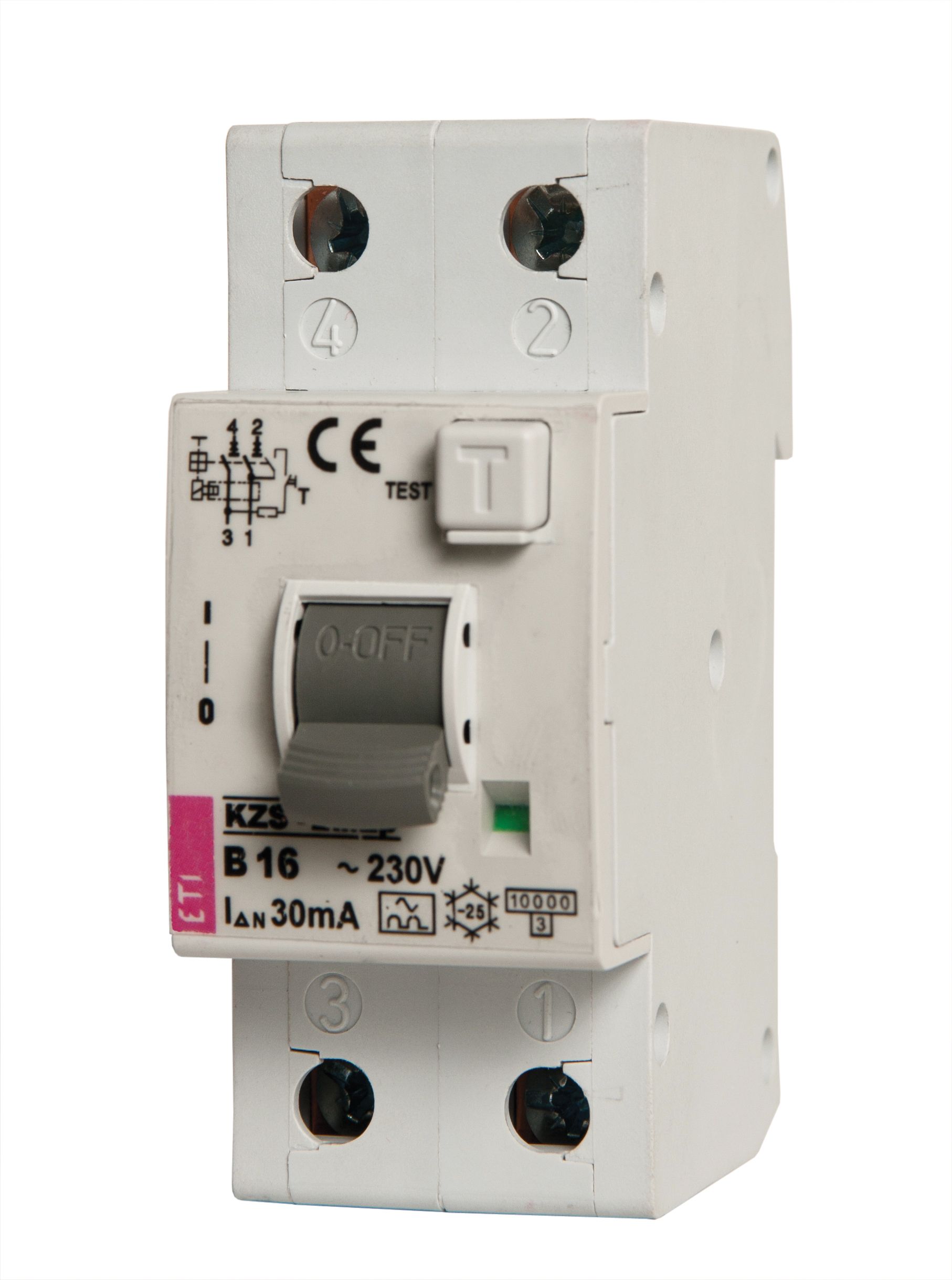

RCBO KZS 2M2p
KZS 2M2p is a residual current circuit breaker with both poles protected combining the features of a miniature circuit breaker and a residual current circuit breaker and is functionally independent on line voltage.
Used primarily in circuits with an increased requirements regarding touch voltage such as circuits of portable appliances, in kindergartens, schools, hospitals etc.
- Rated short-circuit capacity: 10kA
- Rated current: 6-25A
- Tripping characteristics: B,C
- Rated residual current: 0,03A
