NH fuse-switch disconnectors and fuse bases
Items:
0
001690910
KVL-B-00 3p M8-M8
- Class name:
- Fuse switch disconnector
- Rated operational current Ie AC-21 A/B at 690V (A):
- 160
001690911

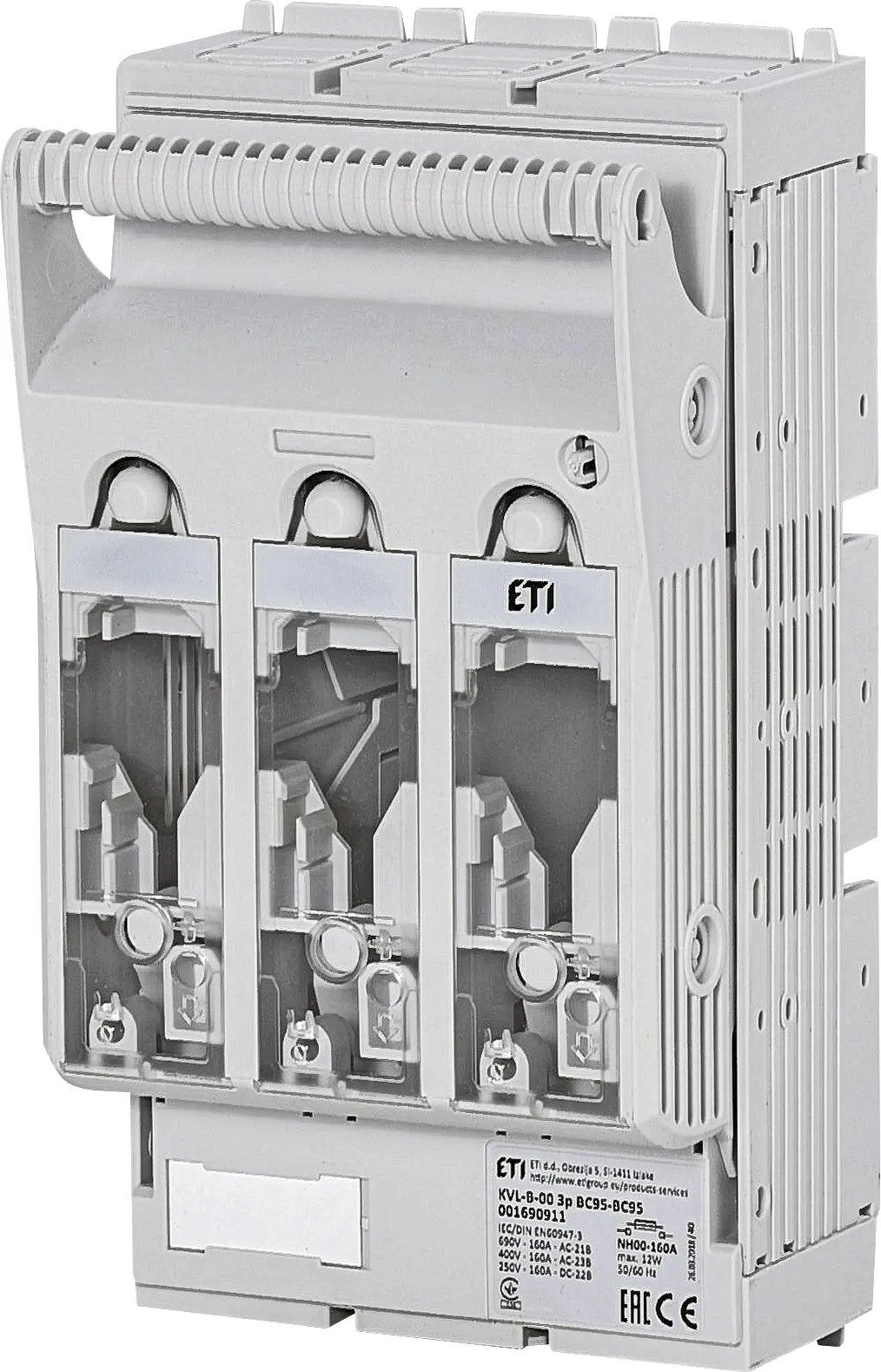

KVL-B-00 3p BC95-BC95
- Class name:
- Fuse switch disconnector
- Rated operational current Ie AC-21 A/B at 690V (A):
- 160
- Clamping cross-section (mm²):
- 1,5 ... 90
001690912
KVL-B-1 3p M10-M10
- Class name:
- Fuse switch disconnector
- Rated operational current Ie AC-21 A/B at 690V (A):
- 250
001690913

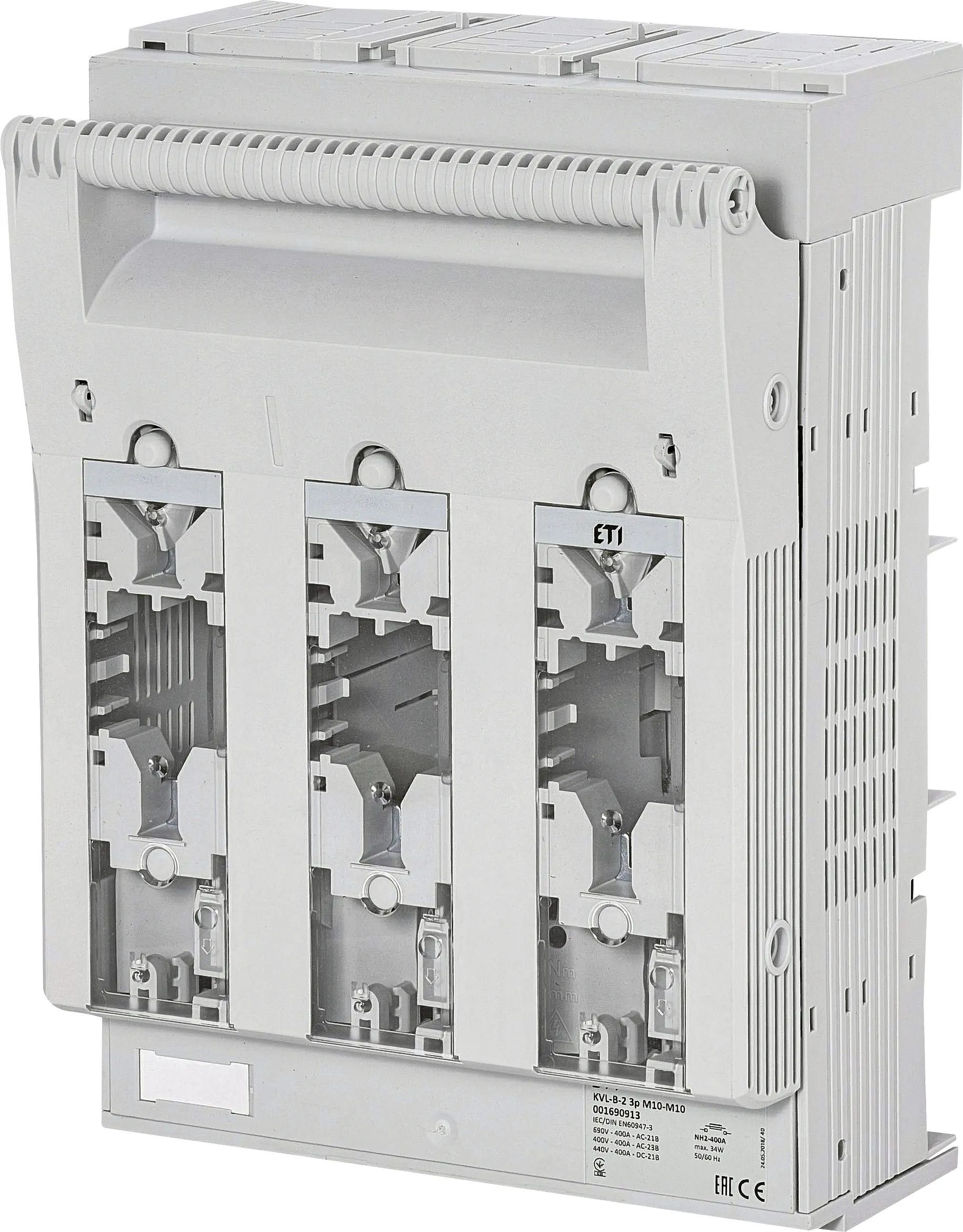

KVL-B-2 3p M10-M10
- Class name:
- Fuse switch disconnector
- Rated operational current Ie AC-21 A/B at 690V (A):
- 400
001690914

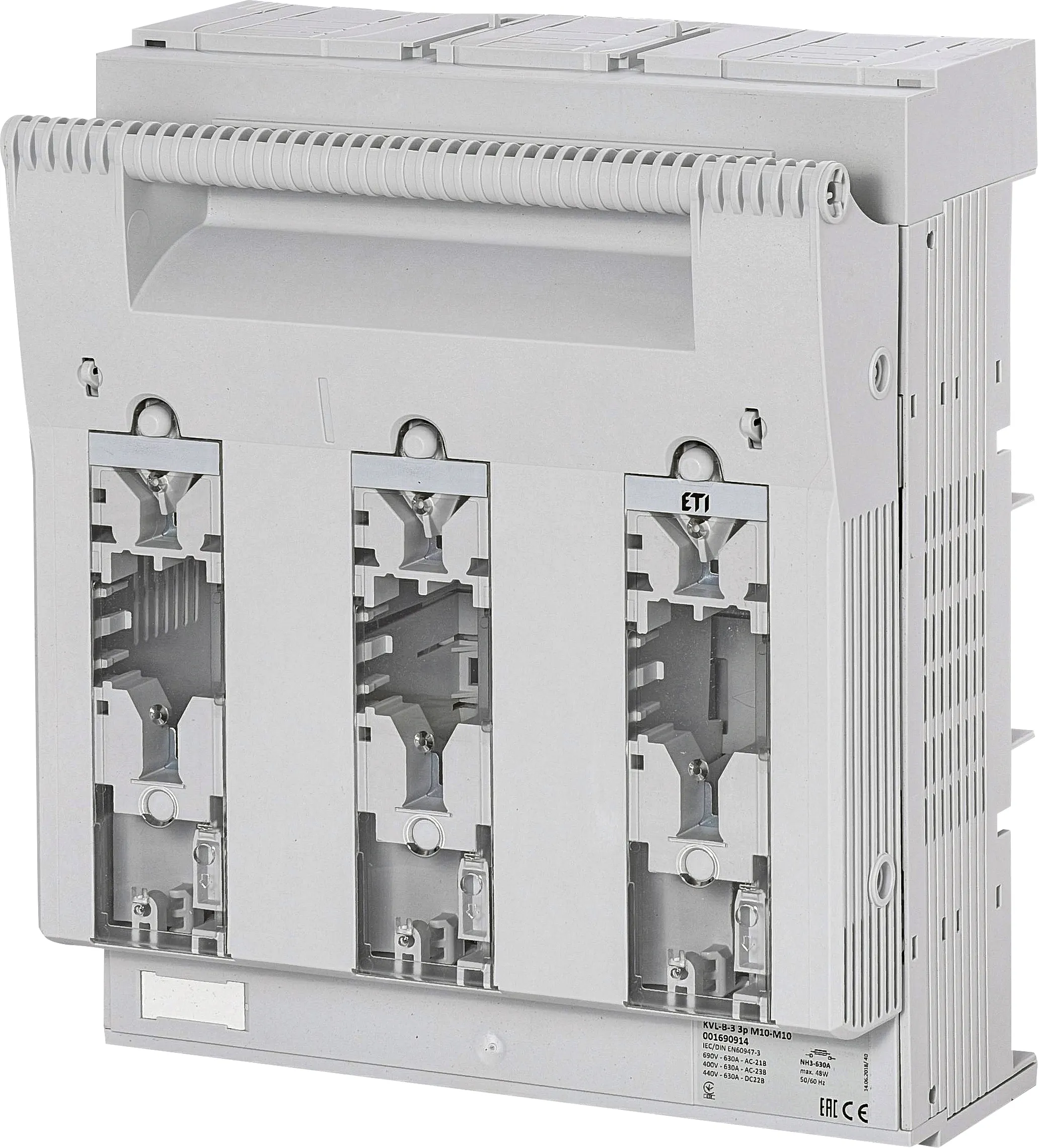

KVL-B-3 3p M10-M10
- Class name:
- Fuse switch disconnector
- Rated operational current Ie AC-21 A/B at 690V (A):
- 630
001690920

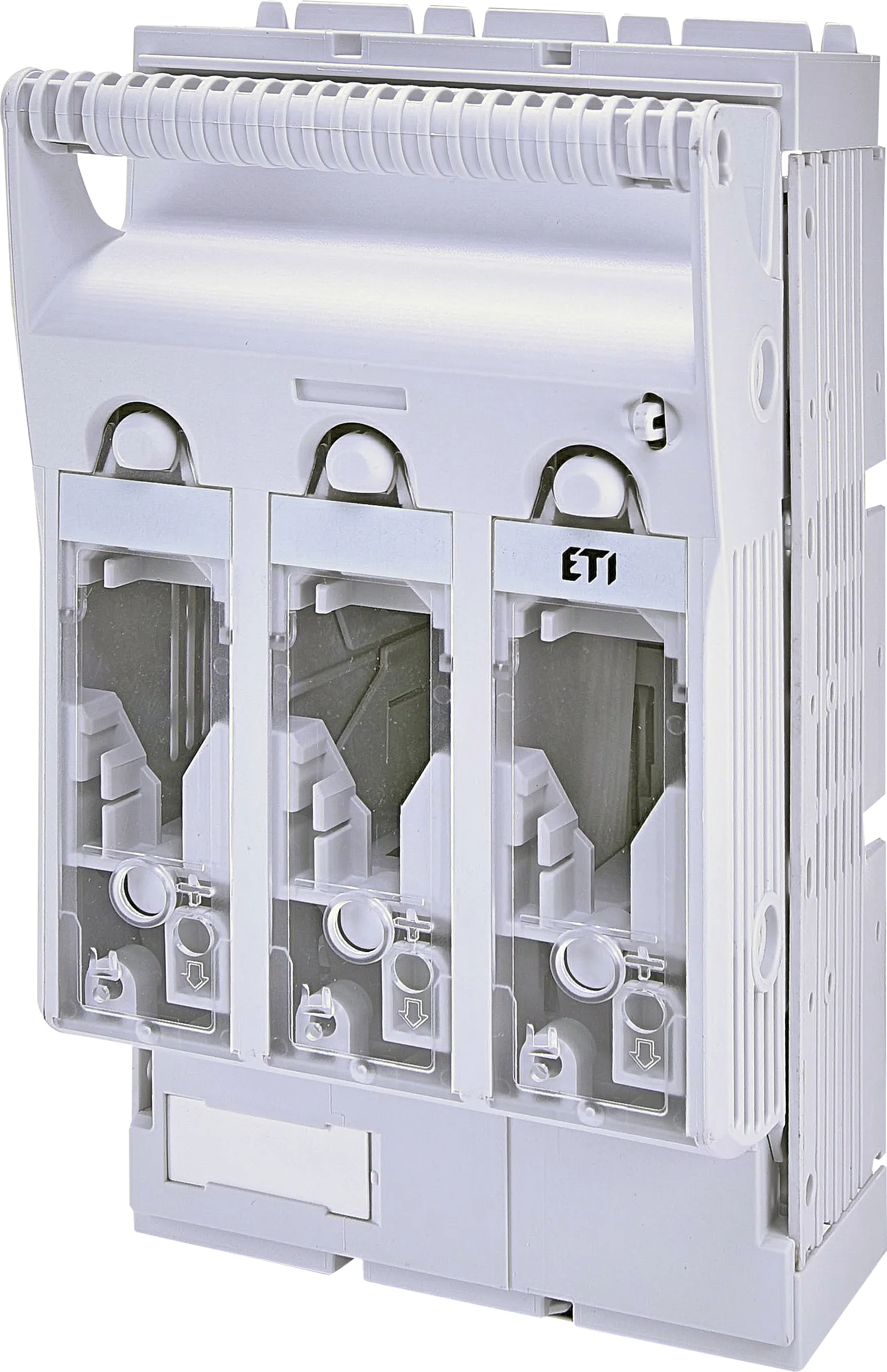

KVL-B/FT-00 3p M8-M8
- Class name:
- Fuse switch disconnector
- Rated operational current Ie AC-21 A/B at 690V (A):
- 160
001690922
KVL-B/FT-1 3p M10-M10
- Class name:
- Fuse switch disconnector
- Rated operational current Ie AC-21 A/B at 690V (A):
- 250
001690923
KVL-B/FT-2 3p M10-M10 TOP
- Class name:
- Fuse switch disconnector
- Rated operational current Ie AC-21 A/B at 690V (A):
- 400
001690924
KVL-B/FT-2 3p M10-M10 BOTTOM
- Class name:
- Fuse switch disconnector
- Rated operational current Ie AC-21 A/B at 690V (A):
- 400
001690930
KVL-B/SF-00 1p M8-M8
- Class name:
- Fuse switch disconnector
- Rated operational current Ie AC-21 A/B at 690V (A):
- 160
001690931
KVL-B/CF-00 1p M8-M8
- Class name:
- Fuse switch disconnector
- Rated operational current Ie AC-21 A/B at 690V (A):
- 160
001690932
KVL-B/SF-1 1p M10-M10
- Class name:
- Fuse switch disconnector
- Rated operational current Ie AC-21 A/B at 690V (A):
- 250
001690933
KVL-B/SF-3 1p M10-M10
- Class name:
- Fuse switch disconnector
- Rated operational current Ie AC-21 A/B at 690V (A):
- 630
001690926
KVL-B/FT-3 3p M10-M10
- Class name:
- Fuse switch disconnector
- Rated operational current Ie AC-21 A/B at 690V (A):
- 630
001690915

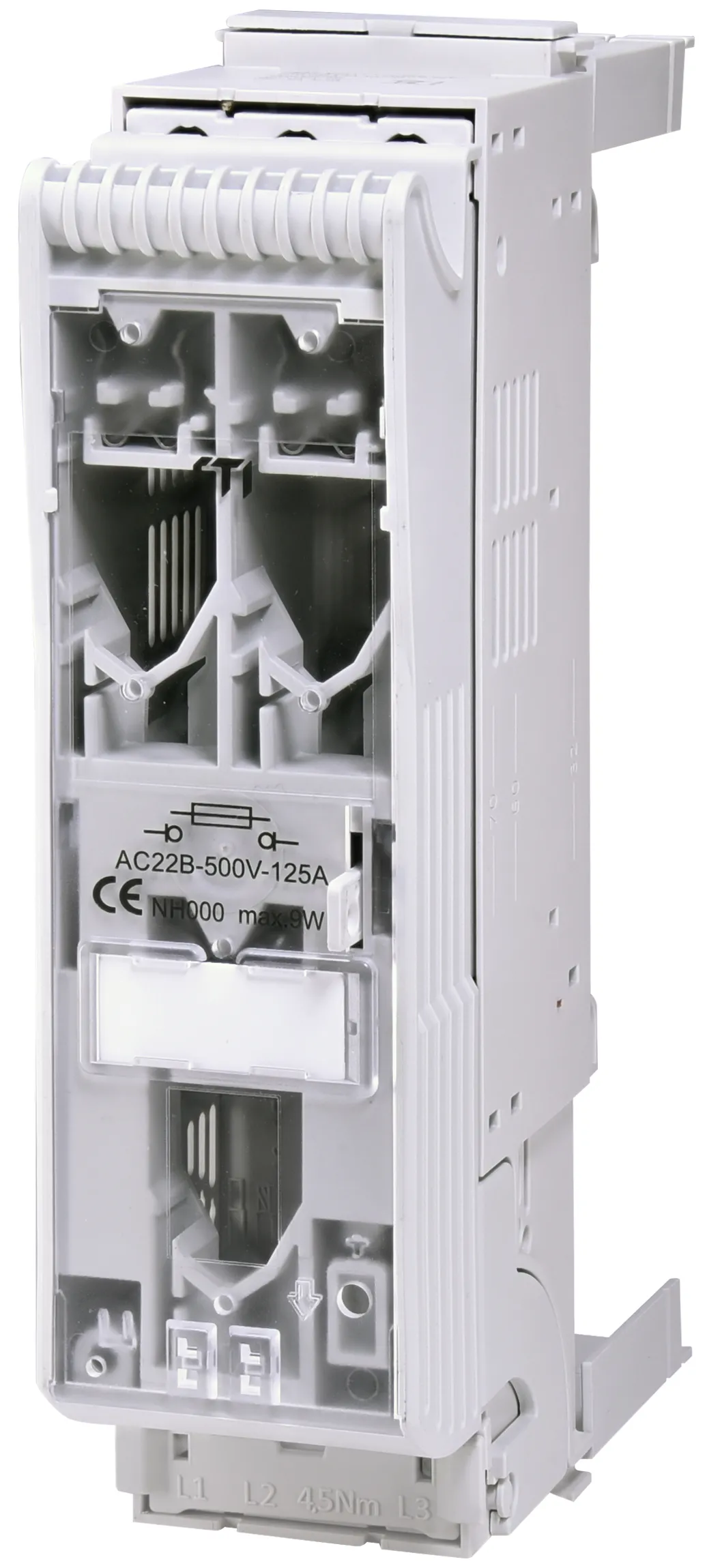

KVL-B-000 3p F50 Bottom
- Class name:
- Fuse switch disconnector
- Rated operational current Ie AC-21 A/B at 690V (A):
- 80
- Clamping cross-section (mm²):
- 1,5 ... 50
001690916

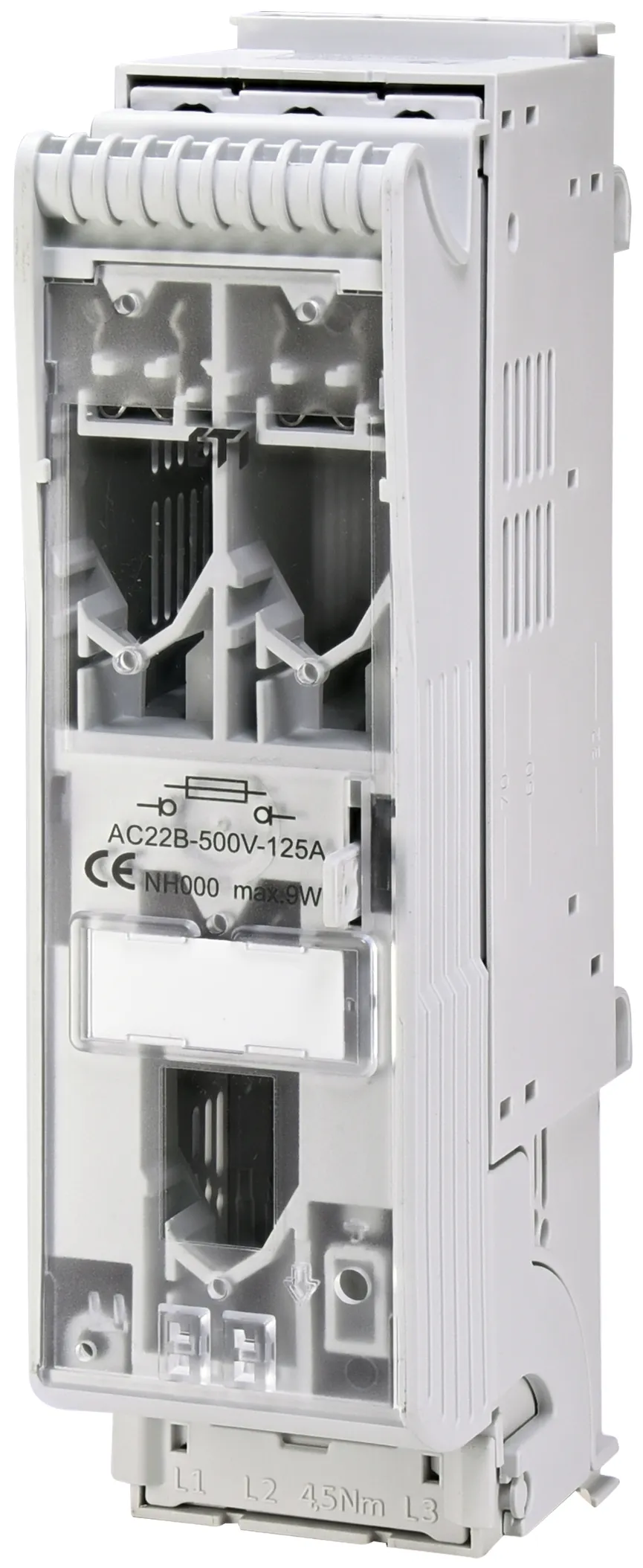

KVL-B-000 3p F50 Top
- Class name:
- Fuse switch disconnector
- Rated operational current Ie AC-21 A/B at 690V (A):
- 80
- Clamping cross-section (mm²):
- 1,5 ... 50
001691071
PRS KVL-000 3p TOP
- Class name:
- Protection cover
001691072
PRS KVL-000 3p BOTTOM
- Class name:
- Protection cover
001691073
UGS KVL-000 3p/34-39
- Class name:
- Protection cover
001691074

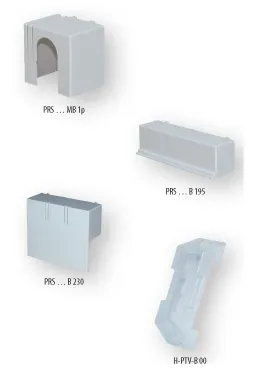

BLAL KVL-000 lateral
- Class name:
- Cover support
