/ International / Reactive power compensation devices CP

Detuning reactors

Items: 0 New items: 9

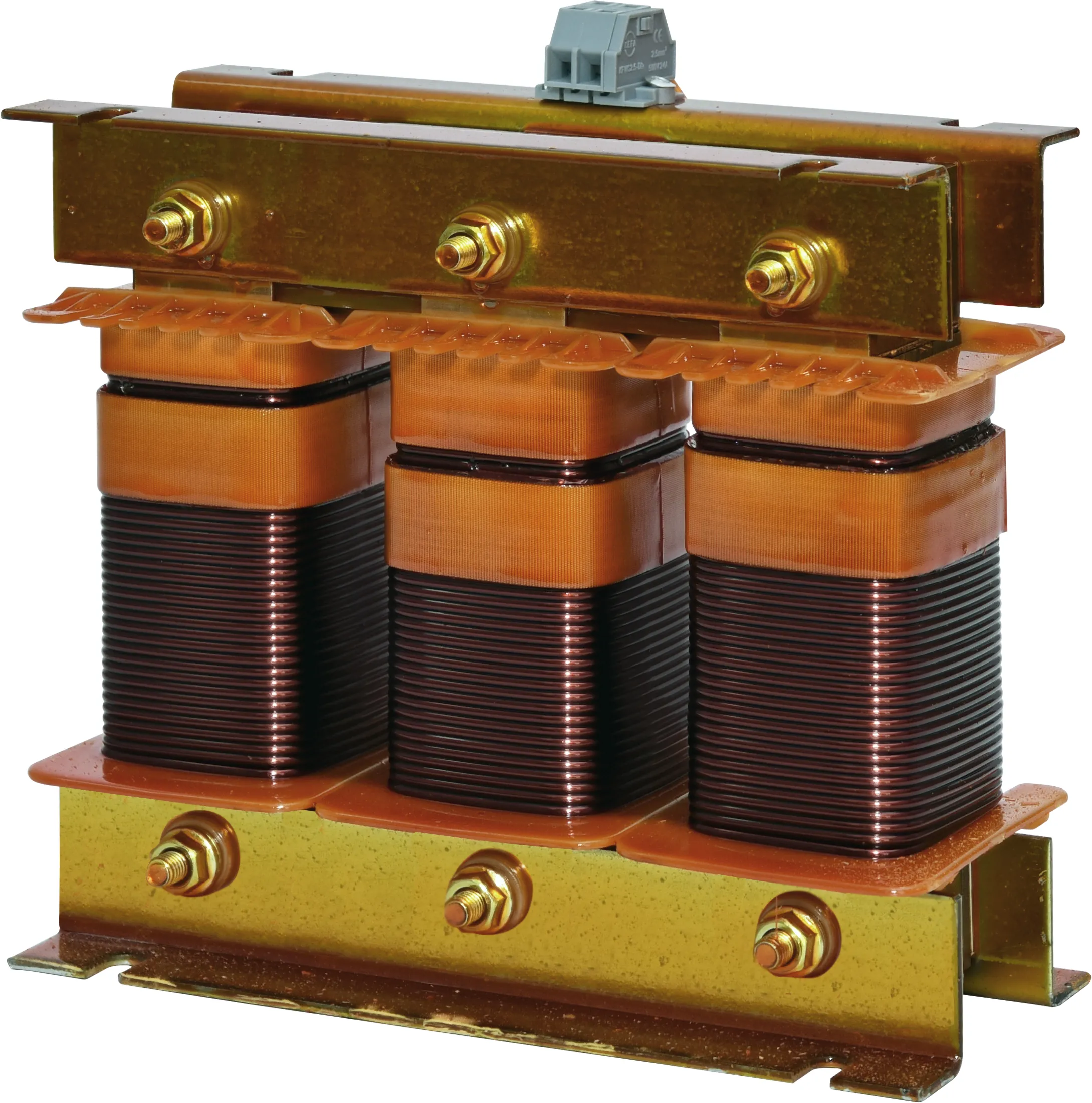

Detuning reactor HFL 7/5 Cu 004656800
004656800
HFL 7/5 Cu
Class name:
Detuning reactor
Type (description):
copper wire
Rated current (A):
7.2A
Filtering factor:
0.07%
Inductance (µH):
7660μH
Detuning reactor HFL 7/10 Cu 004656801
004656801
HFL 7/10 Cu
Class name:
Detuning reactor
Type (description):
copper wire
Rated current (A):
14.4A
Filtering factor:
0.07%
Inductance (µH):
3830μH

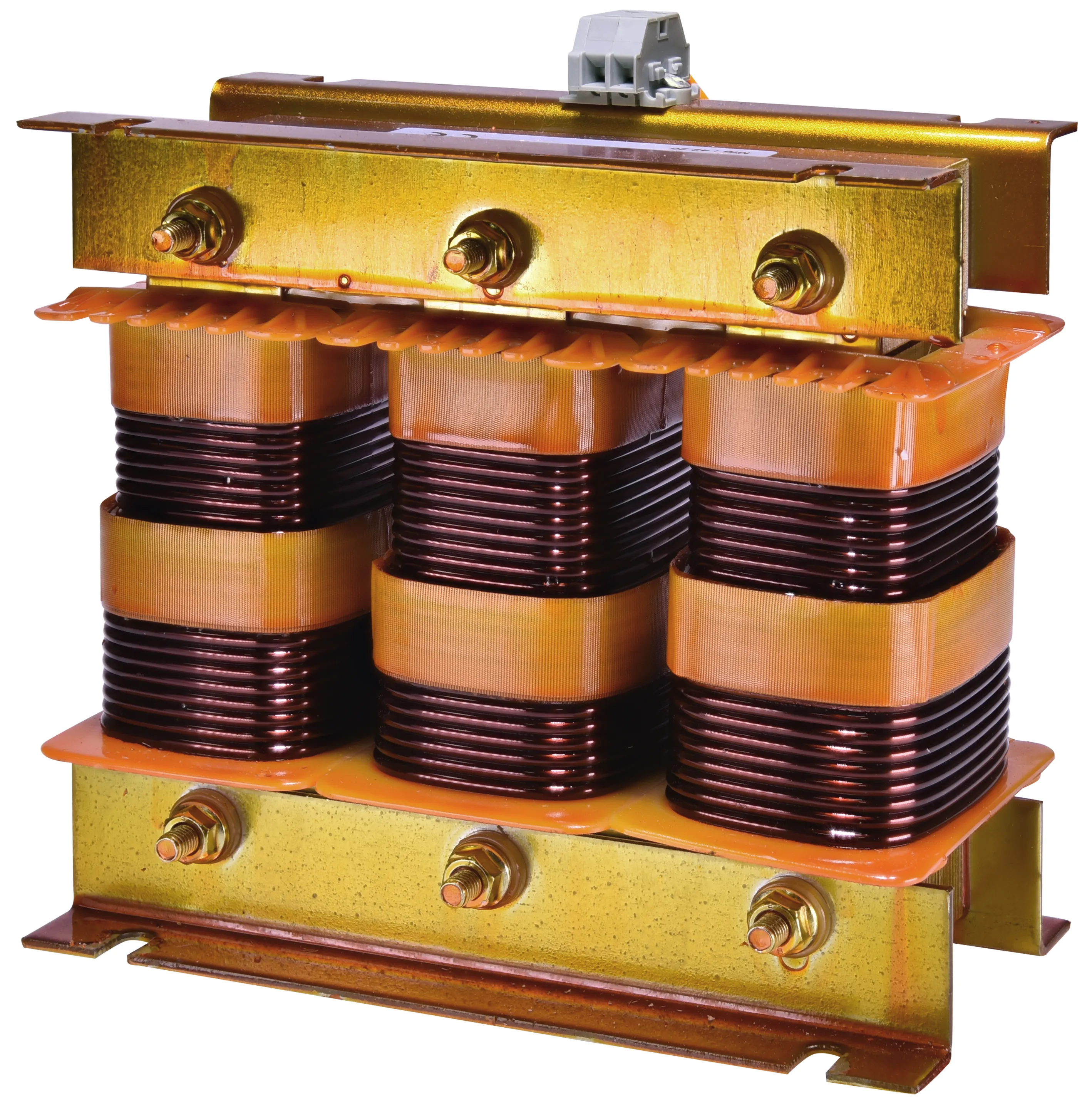

Detuning reactor HFL 7/12,5 Cu 004656802
004656802
HFL 7/12,5 Cu
Class name:
Detuning reactor
Type (description):
copper wire
Rated current (A):
18A
Filtering factor:
0.07%
Inductance (µH):
3070μH
Detuning reactor HFL 7/15 Cu 004656803
004656803
HFL 7/15 Cu
Class name:
Detuning reactor
Type (description):
copper wire
Rated current (A):
21.7A
Filtering factor:
0.07%
Inductance (µH):
2560μH
Detuning reactor HFL 7/20 Cu 004656804
004656804
HFL 7/20 Cu
Class name:
Detuning reactor
Type (description):
copper wire
Rated current (A):
28.9A
Filtering factor:
0.07%
Inductance (µH):
1920μH

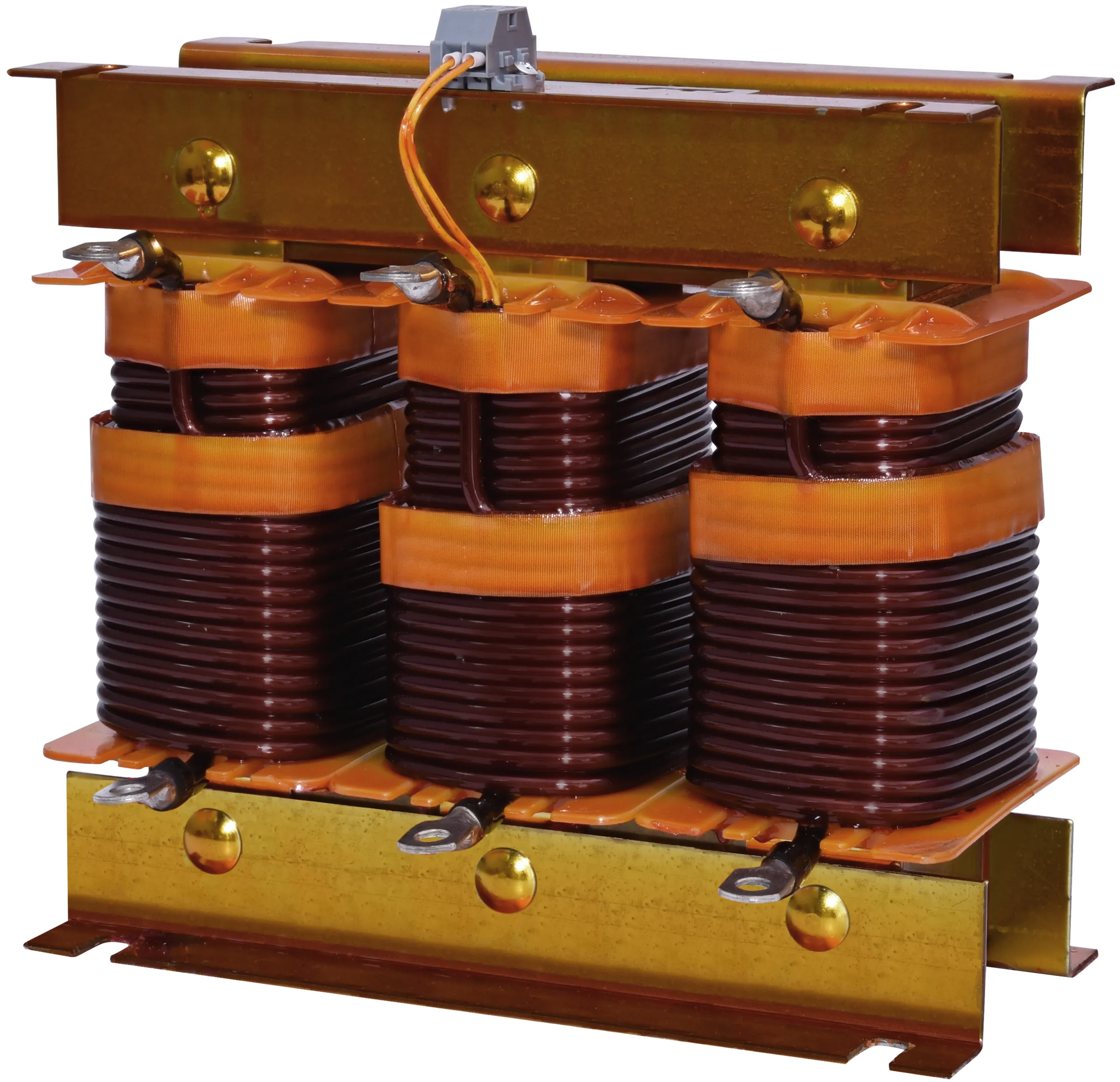

Detuning reactor HFL 7/25 Cu 004656805
004656805
HFL 7/25 Cu
Class name:
Detuning reactor
Type (description):
copper wire
Rated current (A):
36.1A
Filtering factor:
0.07%
Inductance (µH):
1530μH
Detuning reactor HFL 7/30 Cu 004656806
004656806
HFL 7/30 Cu
Class name:
Detuning reactor
Type (description):
copper wire
Rated current (A):
43.3A
Filtering factor:
0.07%
Inductance (µH):
1280μH
Detuning reactor HFL 7/40 Cu 004656807
004656807
HFL 7/40 Cu
Class name:
Detuning reactor
Type (description):
copper wire
Rated current (A):
57.7A
Filtering factor:
0.07%
Inductance (µH):
960μH

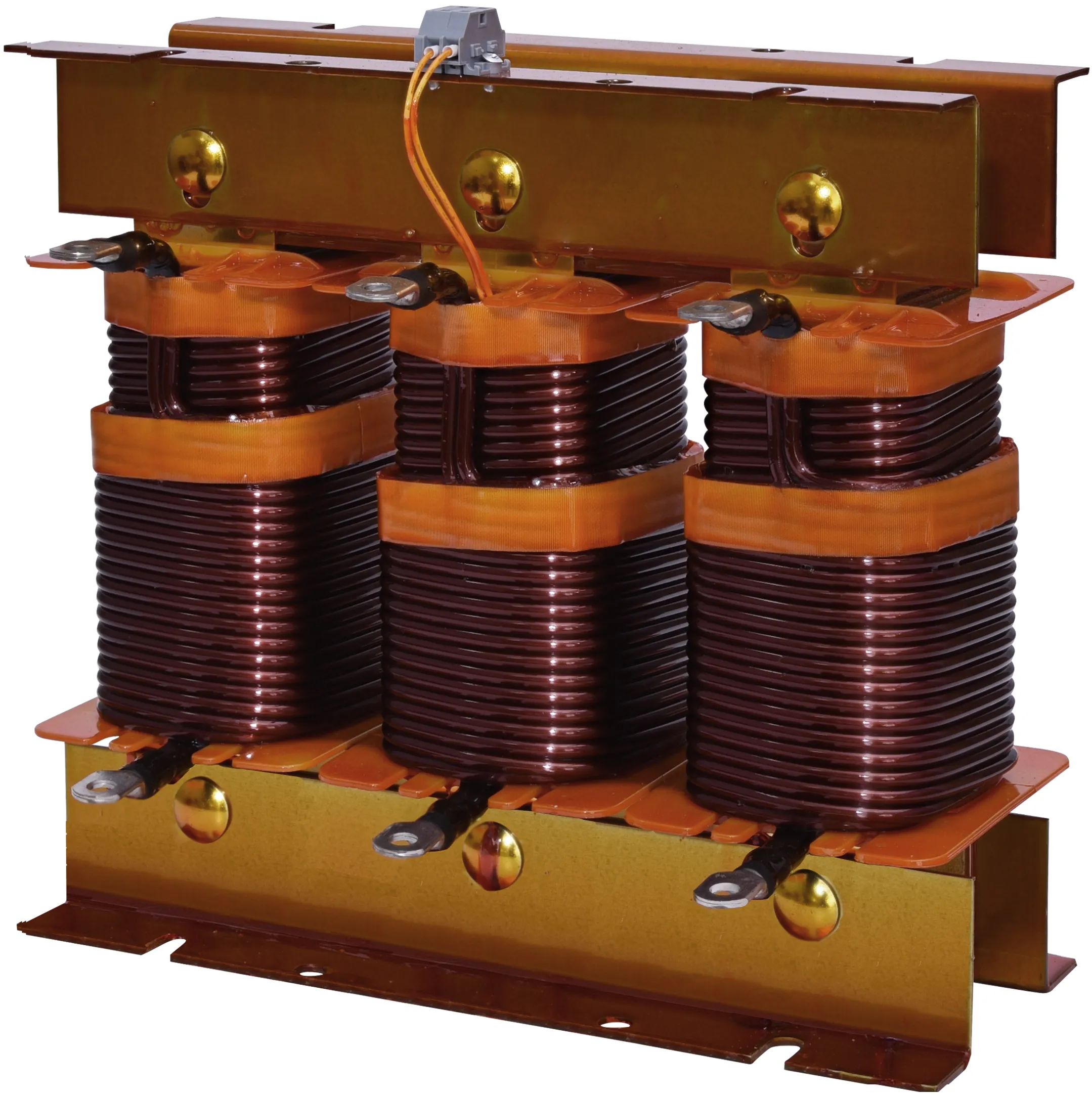

Detuning reactor HFL 7/50 Cu 004656808
004656808
HFL 7/50 Cu
Class name:
Detuning reactor
Type (description):
copper wire
Rated current (A):
72.2A
Filtering factor:
0.07%
Inductance (µH):
770μH

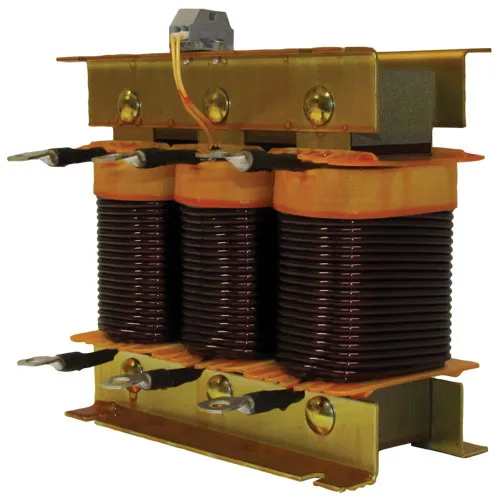

Detuning reactor HFL 7/100 Cu 004656809
004656809
HFL 7/100 Cu
Class name:
Detuning reactor
Type (description):
copper wire
Rated current (A):
144A
Filtering factor:
0.07%
Inductance (µH):
380μH
Detuning reactor HFL 7/2,5 Cu 004656835
004656835
HFL 7/2,5 Cu
Class name:
Detuning reactor
Type (description):
copper wire
Filtering factor:
0.07
Detuning reactor HFL 7/20 Al 004656820
004656820
HFL 7/20 Al
Class name:
Detuning reactor
Type (description):
aluminum wire
Rated current (A):
28.9A
Filtering factor:
0.07%
Inductance (µH):
1920μH
Detuning reactor HFL 7/25 Al 004656821
004656821
HFL 7/25 Al
Class name:
Detuning reactor
Type (description):
aluminum wire
Rated current (A):
36.1A
Filtering factor:
0.07%
Inductance (µH):
1530μH
Detuning reactor HFL 7/30 Al 004656822
004656822
HFL 7/30 Al
Class name:
Detuning reactor
Type (description):
aluminum wire
Rated current (A):
43.3A
Filtering factor:
0.07%
Inductance (µH):
1280μH
Detuning reactor HFL 7/40 Al 004656823
004656823
HFL 7/40 Al
Class name:
Detuning reactor
Type (description):
aluminum wire
Rated current (A):
57.7A
Filtering factor:
0.07%
Inductance (µH):
960μH
Detuning reactor HFL 7/50 Al 004656824
004656824
HFL 7/50 Al
Class name:
Detuning reactor
Type (description):
aluminum wire
Rated current (A):
72.2A
Filtering factor:
0.07%
Inductance (µH):
770μH
Detuning reactor HFL 14/5 Cu 004656810
004656810
HFL 14/5 Cu
Class name:
Detuning reactor
Type (description):
copper wire
Rated current (A):
7.2A
Filtering factor:
0.14%
Inductance (µH):
16580μH
Detuning reactor HFL 14/10 Cu 004656811
004656811
HFL 14/10 Cu
Class name:
Detuning reactor
Type (description):
copper wire
Rated current (A):
14.4A
Filtering factor:
0.14%
Inductance (µH):
8290μH
Detuning reactor HFL 14/12,5 Cu 004656812
004656812
HFL 14/12,5 Cu
Class name:
Detuning reactor
Type (description):
copper wire
Rated current (A):
18A
Filtering factor:
0.14%
Inductance (µH):
6630μH
Detuning reactor HFL 14/15 Cu 004656813
004656813
HFL 14/15 Cu
Class name:
Detuning reactor
Type (description):
copper wire
Rated current (A):
21.7A
Filtering factor:
0.14%
Inductance (µH):
5530μH
Detuning reactor HFL 14/20 Cu 004656814
004656814
HFL 14/20 Cu
Class name:
Detuning reactor
Type (description):
copper wire
Rated current (A):
28.9A
Filtering factor:
0.14%
Inductance (µH):
4150μH
Detuning reactor HFL 14/25 Cu 004656815
004656815
HFL 14/25 Cu
Class name:
Detuning reactor
Type (description):
copper wire
Rated current (A):
36.1A
Filtering factor:
0.14%
Inductance (µH):
3320μH
Detuning reactor HFL 14/30 Cu 004656816
004656816
HFL 14/30 Cu
Class name:
Detuning reactor
Type (description):
copper wire
Rated current (A):
43.3A
Filtering factor:
0.14%
Inductance (µH):
2760μH
Detuning reactor HFL 14/40 Cu 004656817
004656817
HFL 14/40 Cu
Class name:
Detuning reactor
Type (description):
copper wire
Rated current (A):
57.7A
Filtering factor:
0.14%
Inductance (µH):
2070μH
Detuning reactor HFL 14/50 Cu 004656818
004656818
HFL 14/50 Cu
Class name:
Detuning reactor
Type (description):
copper wire
Rated current (A):
72.2A
Filtering factor:
0.14%
Inductance (µH):
1660μH
Detuning reactor HFL 14/20 Al 004656830
004656830
HFL 14/20 Al
Class name:
Detuning reactor
Type (description):
aluminum wire
Rated current (A):
28.9A
Filtering factor:
0.14%
Inductance (µH):
4150μH
Detuning reactor HFL 14/25 Al 004656831
004656831
HFL 14/25 Al
Class name:
Detuning reactor
Type (description):
aluminum wire
Rated current (A):
36.1A
Filtering factor:
0.14%
Inductance (µH):
3320μH
Detuning reactor HFL 14/30 Al 004656832
004656832
HFL 14/30 Al
Class name:
Detuning reactor
Type (description):
aluminum wire
Rated current (A):
43.3A
Filtering factor:
0.14%
Inductance (µH):
2760μH
Detuning reactor HFL 14/40 Al 004656833
004656833
HFL 14/40 Al
Class name:
Detuning reactor
Type (description):
aluminum wire
Rated current (A):
57.7A
Filtering factor:
0.14%
Inductance (µH):
2070μH
Detuning reactor HFL 14/50 Al 004656834
004656834
HFL 14/50 Al
Class name:
Detuning reactor
Type (description):
aluminum wire
Rated current (A):
72.2A
Filtering factor:
0.14%
Inductance (µH):
1660μH
Detuning reactor HFL 5,67/10 Al 004656839
004656839
HFL 5,67/10 Al
Class name:
Detuning reactor
Type (description):
aluminum wire
Filtering factor:
0.0567
Detuning reactor HFL 5,67/12,5 Al 004656836
004656836
HFL 5,67/12,5 Al
Class name:
Detuning reactor
Type (description):
aluminum wire
Filtering factor:
0.0567
Detuning reactor HFL 5,67/15 Al 004656840
004656840
HFL 5,67/15 Al
Class name:
Detuning reactor
Type (description):
aluminum wire
Filtering factor:
0.0567
Detuning reactor HFL 5,67/20 Al 004656841
004656841
HFL 5,67/20 Al
Class name:
Detuning reactor
Type (description):
aluminum wire
Filtering factor:
0.0567
Detuning reactor HFL 5,67/25 Al 004656837
004656837
HFL 5,67/25 Al
Class name:
Detuning reactor
Type (description):
aluminum wire
Filtering factor:
0.0567
Detuning reactor HFL 5,67/30 Al 004656842
004656842
HFL 5,67/30 Al
Class name:
Detuning reactor
Type (description):
aluminum wire
Filtering factor:
0.0567
Detuning reactor HFL 5,67/5 Al 004656838
004656838
HFL 5,67/5 Al
Class name:
Detuning reactor
Type (description):
aluminum wire
Filtering factor:
0.0567
Detuning reactor HFL 5,67/50 Al 004656844
004656844
HFL 5,67/50 Al
Class name:
Detuning reactor
Type (description):
aluminum wire
Filtering factor:
0.0567
>
>
