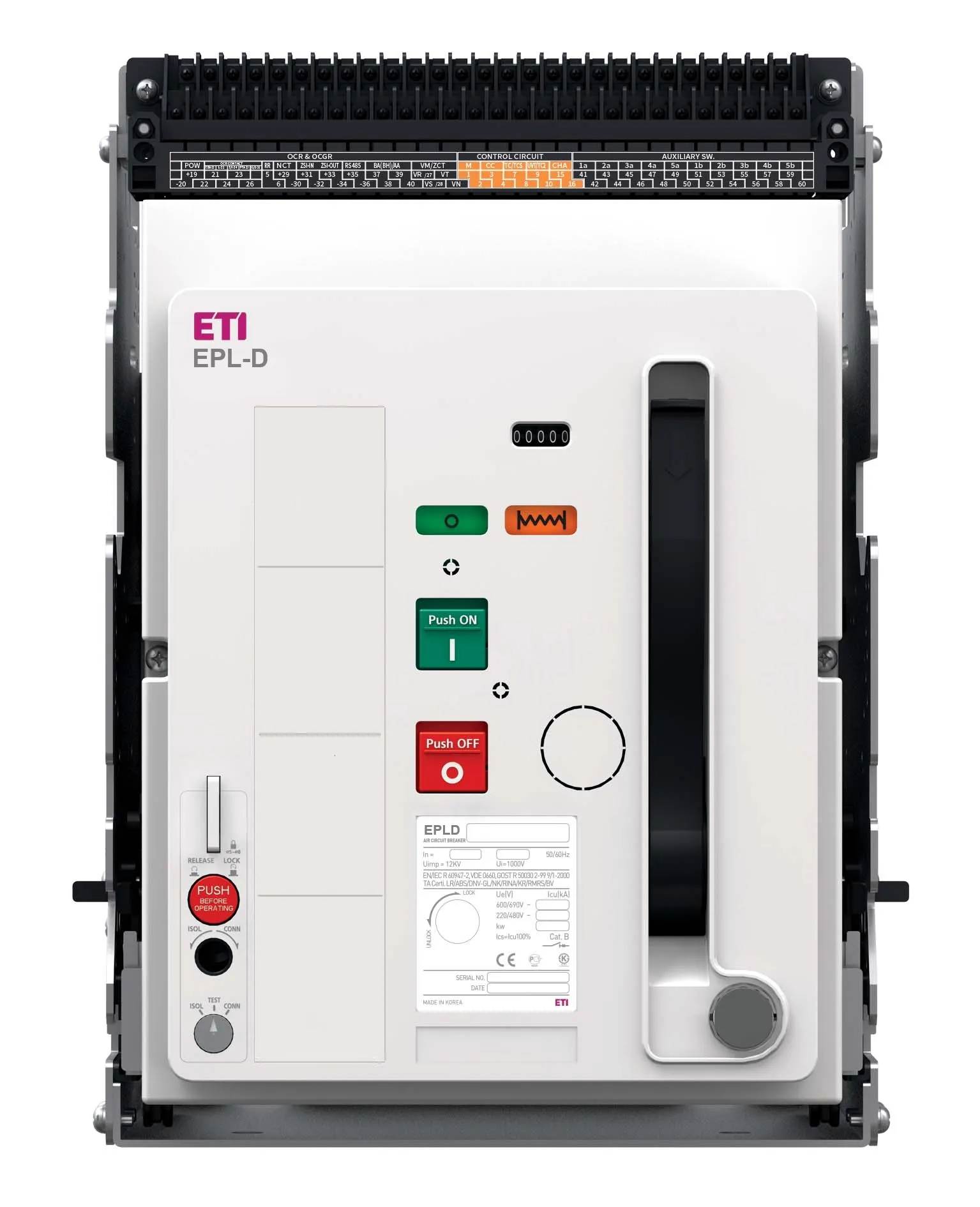

Switch disconnector EPL-D-06 3H AD/M2C2S2 004696600
Specifications
- ETI Code:
- 004696600
- Description:
- EPL-D-06 3H AD/M2C2S2
- Class name:
- Switch disconnector
- sort_order:
- 1
- id_level1:
- 3597
- l1_sort_order:
- 2113
- l2_sort_order:
- 6782
- l3_sort_order:
- 6800
- l4_sort_order:
- 6888
- l5_sort_order:
- 6913
- l6_sort_order:
- 6915
- Rated current (A):
- 630
- Number of poles:
- 3
- Rated impulse withstand voltage Uimp (kV):
- 8
- Catalogue Group:
- ETIPOWER
- Rated operational voltage AC (V):
- 690
- Connection type:
- rear connection
- Standards:
- 60947-3
Documents
Logistic Data
Product
- Net weight of the product
- 61.93 kg
- Customs tariff
- 85362090
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838400107138
- Basic packaging weight
- 62.43 kg
Transport packaging
- Transport packaging quantity
- 6
- EAN code for a transport packaging
- 3838400107152
- Transport packaging weight
- 428 kg
- Pallet quantity
- 6
Intermediate packaging
- qty
- 1 pcs
- Weight
- 66.93 kg
- Height (mm)
- 600 mm
- Depth (mm)
- 600 mm
- volume
- 252 dm3
ETIM Clasification
- Classification
- EC000228
- Class name
- Power circuit-breaker for trafo/generator/installation protection
- Rated permanent current Iu
- 630
- Rated voltage
- 690…690
- Integrated earth fault protection
- Yes
- Type of electrical connection of main circuit
- Connection at separate chassis part
- Device construction
- Built-in device slide-in technique (withdrawable)
- Suitable for DIN rail (top hat rail) mounting
- No
- DIN rail (top hat rail) mounting optional
- No
- Number of auxiliary contacts as change-over contact
- 5
- With switched-off indicator
- Yes
- With under voltage release
- No
- Number of poles
- 3
- Position of connection for main current circuit
- Back side
- Type of control element
- Push button
- Complete device with protection unit
- No
- Motor drive integrated
- Yes
- Motor drive optional
- Yes
- Degree of protection (IP)
- IP20
EPL-D-06 3H AD/M2C2S2
