Time relay SMR-H 002470005
Specifications
- ETI Code:
- 002470005
- Description:
- SMR-H
- Class name:
- Time relay
- sort_order:
- 4
- id_level1:
- 475
- l1_sort_order:
- 1166
- l2_sort_order:
- 1213
- l3_sort_order:
- 1214
- l4_sort_order:
- 1215
- l5_sort_order:
- 1226
- l6_sort_order:
- 1227
- Maximum load capacity at AC1 (VA):
- 200
- Function:
- Time relay
- Voltage type:
- AC
- Mounting:
- Under wall-switch
- Supply voltage (V):
- 230
- Type of contacts:
- triac
- Number of contacts:
- 1
Documents
Logistic Data
Product
- Net weight of the product
- 0.053 kg
- Customs tariff
- 85364900
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 8594030338339
- Basic packaging weight
- 0.05 kg
Transport packaging
- Transport packaging quantity
- 14
- EAN code for a transport packaging
- 3838895231233
- Transport packaging weight
- 0.737 kg
- Pallet quantity
- 4788
ETIM Clasification
- Classification
- EC001439
- Class name
- Timer relay
- Voltage type
- AC
- Mounting method
- Under wall-switch
- Type of electric connection
- Soldering flag connection
- Number of outputs, undelayed, normally open contact
- 1
- With semiconductor output
- Yes
- Width
- 49mm
- Height
- 49mm
- Depth
- 13.3mm

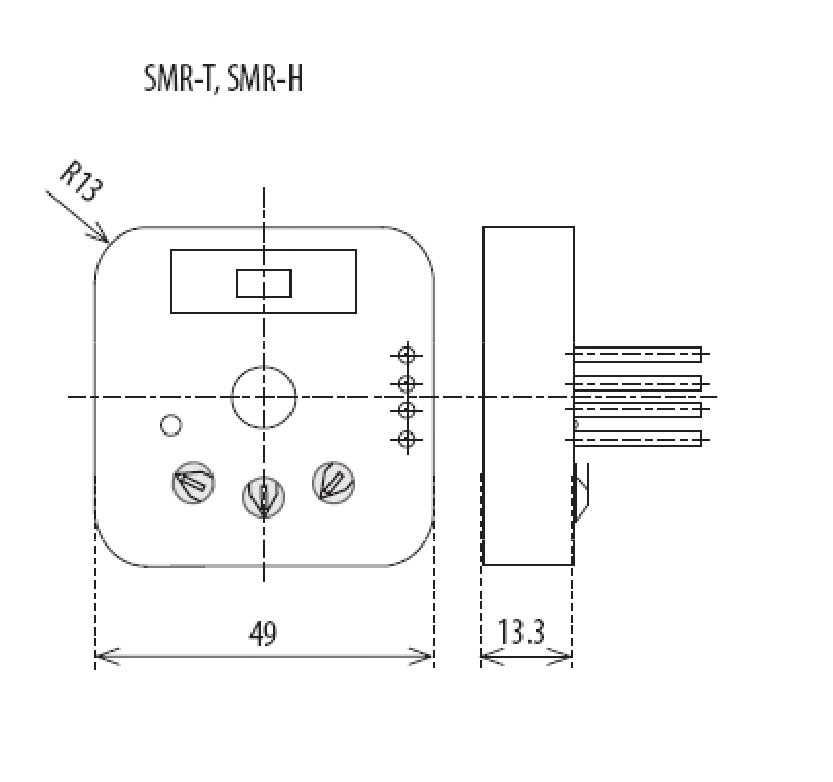

Images & Diagrams
