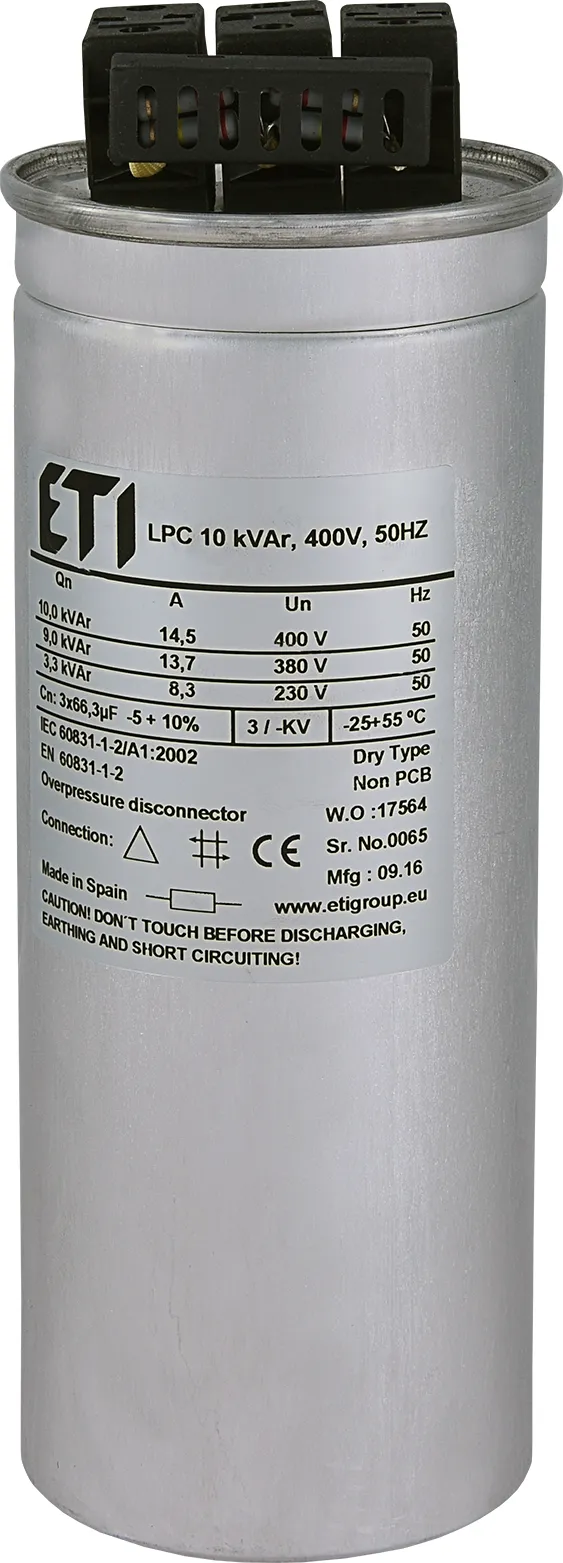

Capacitor LPC 10 kVAr, 400V, 50Hz 004656750
Specifications
- ETI Code:
- 004656750
- Description:
- LPC 10 kVAr, 400V, 50Hz
- Class name:
- Capacitor
- Rated power (kVAr):
- 10
- Rated capacitance (μF):
- 3x66,3
- Rated voltage (V):
- 400
- Type:
- Dry
- Connection type:
- Screw terminal
Documents
Logistic Data
Product
- Net weight of the product
- 1.6 kg
- Customs tariff
- 85321000
- logis_net_width
- 85 mm
- logis_net_height
- 225 mm
- logis_net_depth
- 85 mm
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 3838895696704
- Transport packaging weight
- 1.69 kg
- Pallet quantity
- 473
ETIM Clasification
- Classification
- EC001516
- Class name
- Capacitor
- Capacity
- 66.3µF
- With insert contacts
- No
- Diameter
- 85mm
- Length
- 225mm
