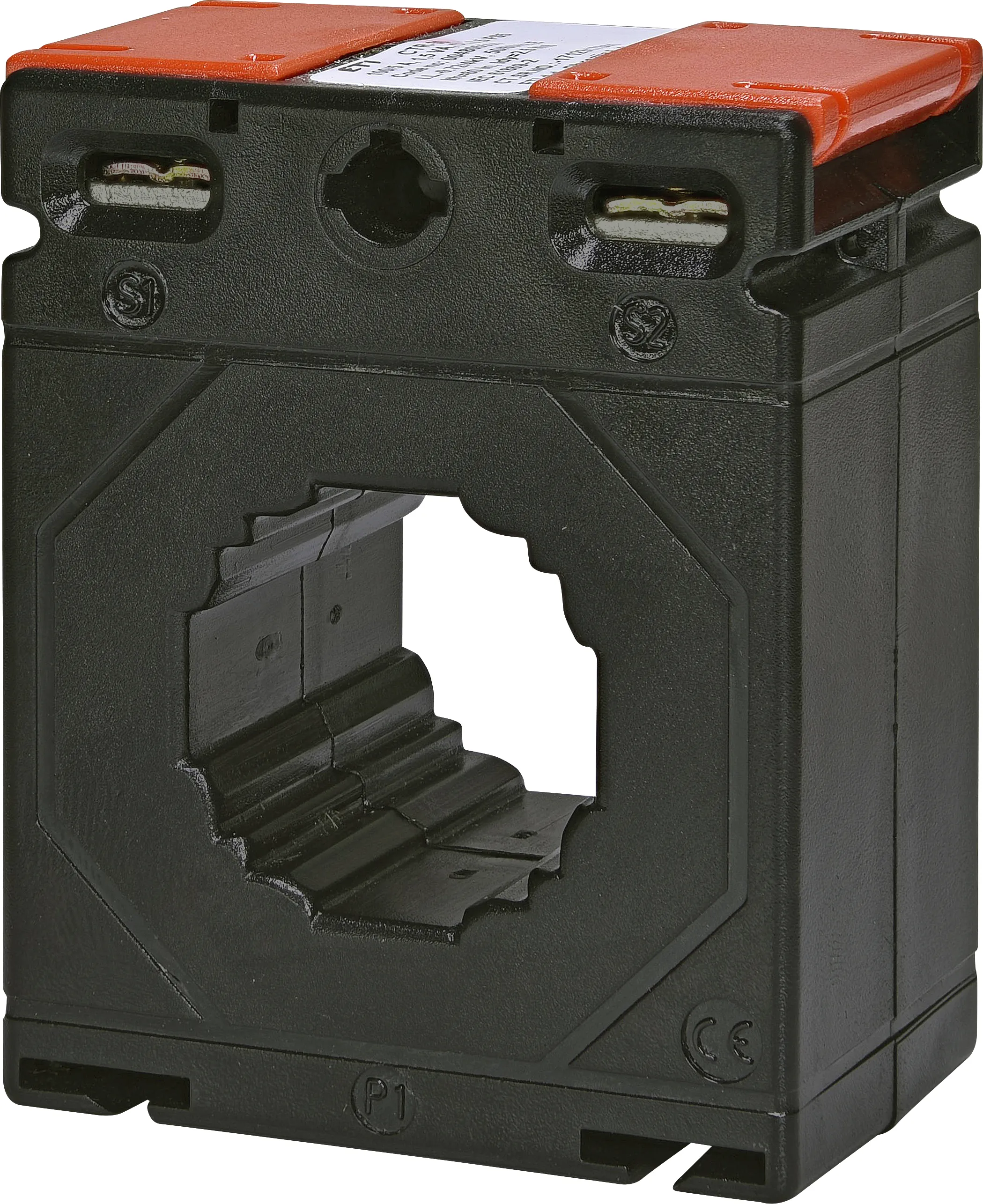

Current transformer CTR-30 100/5 CL.0,5 004805504
Specifications
- ETI Code:
- 004805504
- Description:
- CTR-30 100/5 CL.0,5
- Class name:
- Current transformer
- sort_order:
- 2
- id_level1:
- 4801
- l1_sort_order:
- 1467
- l2_sort_order:
- 1578
- l3_sort_order:
- 1579
- l4_sort_order:
- 1580
- l5_sort_order:
- 1581
- l6_sort_order:
- 1582
- Power (VA):
- 1,5
- Primary current:
- 100
- Secondary Current (A):
- 5
- Accuracy class:
- 0,5
Documents
Logistic Data
Product
- Net weight of the product
- 0.365 kg
- Customs tariff
- 85043129
- logis_net_width
- 62 mm
- logis_net_height
- 40 mm
- logis_net_depth
- 76 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895817147
- Basic packaging weight
- 0.37 kg
Transport packaging
- Transport packaging quantity
- 63
- EAN code for a transport packaging
- 3838895817154
- Transport packaging weight
- 23.31 kg
- Pallet quantity
- 2520
ETIM Clasification
- Classification
- EC002048
- Class name
- Current transformer
- Model
- Attachable current transformer
- Rated primary current
- 100A
- Rated secondary current
- 5A
- Rated secondary apparent power
- 1,5VA
- Accuracy class
- 0,5
- Opening diameter
- 30,5mm
- Secondary connection
- Screw connection
