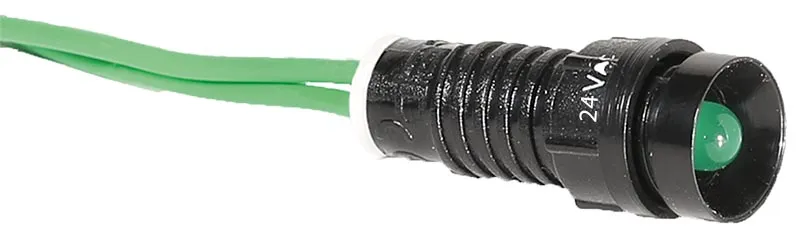

Signal lamp LS LED 5 G 24AC 004770801
Specifications
- ETI Code:
- 004770801
- Description:
- LS LED 5 G 24AC
- Class name:
- Signal lamp
- Function:
- LED indicator
- Type:
- Signal lamp
- Rated AC voltage (V):
- 24 V
- Catalogue Group:
- Actuators and indicators E-line
- Color:
- Green
- Rated Frequency (Hz):
- 50
- Voltage type:
- AC
- IP rating:
- IP20
- Connection:
- LGY 0,5 mm²
- Hole diameter (mm):
- 5
- Power dissipation (W):
- 1
Documents
Logistic Data
Product
- Net weight of the product
- 0.05 kg
- Customs tariff
- 85369095
- logis_net_width
- 12 mm
- logis_net_height
- 12 mm
- logis_net_depth
- 30 mm
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 5904722940598
- Transport packaging weight
- 0.05 kg
- Pallet quantity
- 16000
ETIM Clasification
- Classification
- EC000272
- Class name
- Indicator light complete
- Max. rated operation voltage Ue AC
- 24 V
- Colour
- Green
- Type of drive
- 50
- Degree of protection (IP), front side
- IP20
- Number of indicator lights
- 1
- Colour lens
- Green
- With light source
- Yes
- Rated operating voltage Ue
- 24…24V
- Voltage type
- AC
- Type of electric connection
- Soldering flag connection
- Construction type lens
- Round
- Type of lens
- High
- Hole diameter
- 5mm
- Degree of protection (IP)
- IP20
