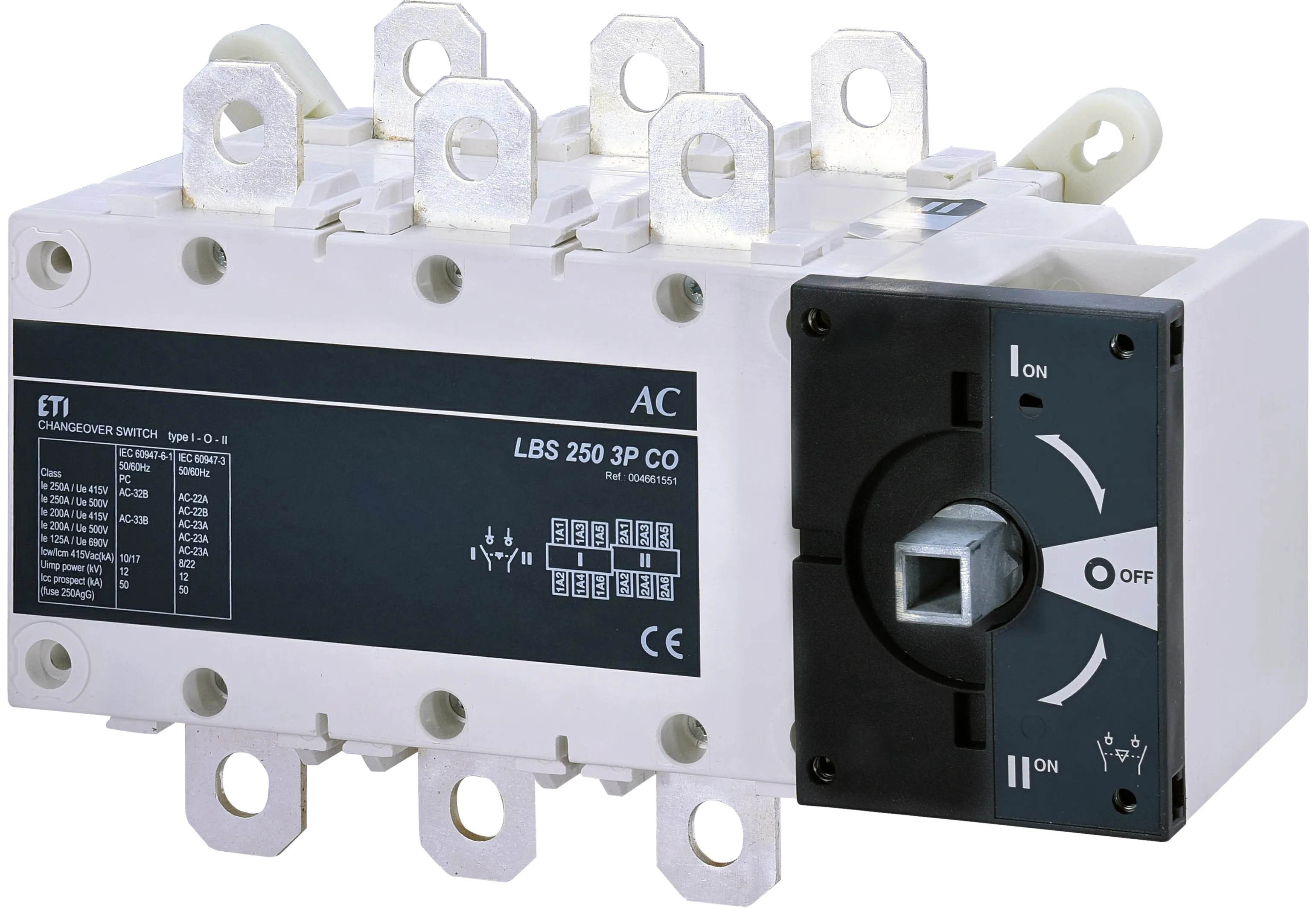

Changeover switch LBS 250 3P CO 004661551
Specifications
- ETI Code:
- 004661551
- Description:
- LBS 250 3P CO
- Class name:
- Changeover switch
- sort_order:
- 2
- id_level1:
- 1057
- l1_sort_order:
- 2119
- l2_sort_order:
- 2240
- l3_sort_order:
- 2241
- l4_sort_order:
- 2242
- l5_sort_order:
- 2243
- l6_sort_order:
- 2244
- Number of poles:
- 3
- Thermal current Ith (A):
- 250
- Rated operational current Ie AC-21 A/B at 415V (A):
- 250
- Rated insulation voltage (V):
- 1000
- Max. rated operational voltage (V AC):
- 690
- Mounting:
- Panel mounted
Documents
Logistic Data
Product
- Net weight of the product
- 4.676 kg
- Customs tariff
- 85365080
- logis_net_width
- 262 mm
- logis_net_height
- 160 mm
- logis_net_depth
- 218 mm
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 3838895719649
- Transport packaging weight
- 4.676 kg
- Pallet quantity
- 50
ETIM Clasification
- Classification
- EC000216
- Class name
- Switch disconnector
- Version as main switch
- Yes
- Version as maintenance-/service switch
- Yes
- Version as safety switch
- Yes
- Max. rated operation voltage Ue AC
- 415V
- Rated permanent current Iu
- 250A
- Rated operation power at AC-23, 400 V
- 132kW
- Number of poles
- 3
- Motor drive integrated
- No
- Suitable for floor mounting
- Yes
- Type of control element
- Toggle
