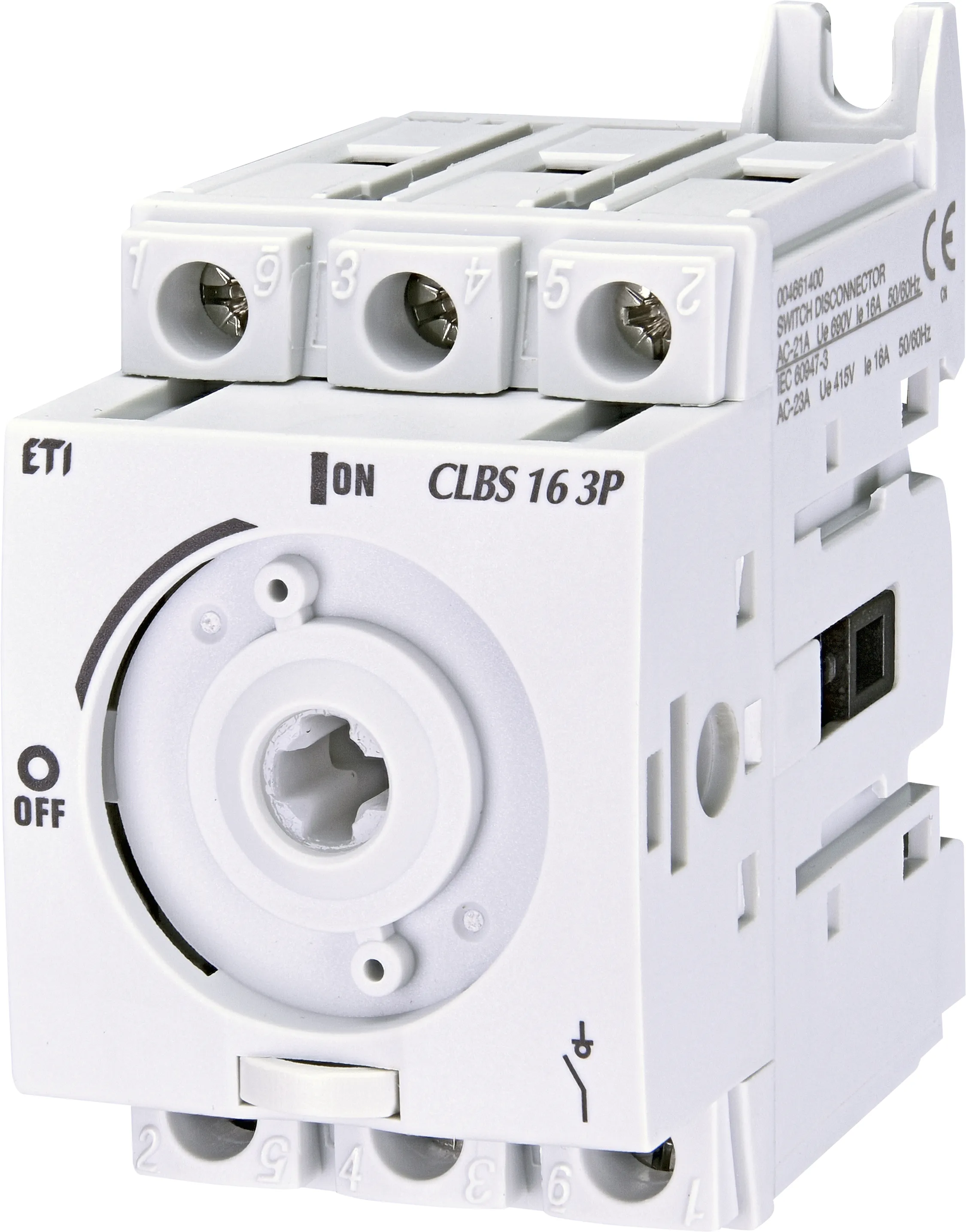

Switch disconnector CLBS 16 3P 004661400
Specifications
- ETI Code:
- 004661400
- Description:
- CLBS 16 3P
- Class name:
- Switch disconnector
- sort_order:
- 1
- id_level1:
- 1057
- l1_sort_order:
- 2119
- l2_sort_order:
- 2120
- l3_sort_order:
- 2121
- l4_sort_order:
- 2122
- l5_sort_order:
- 2123
- l6_sort_order:
- 2124
- Number of poles:
- 3
- Thermal current Ith (A):
- 16
- Rated operational current Ie AC-21 A/B at 415V (A):
- 16 / 16
- Rated insulation voltage (V):
- 800
- Max. rated operational voltage (V AC):
- 690
- Mounting:
- DIN-rail mounted
Documents
Logistic Data
Product
- Net weight of the product
- 0.23 kg
- Customs tariff
- 85365080
- logis_net_width
- 45 mm
- logis_net_height
- 85 mm
- logis_net_depth
- 75 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895717911
- Basic packaging weight
- 0.23 kg
Transport packaging
- Transport packaging quantity
- 24
- EAN code for a transport packaging
- 3838895717928
- Transport packaging weight
- 5.52 kg
- Pallet quantity
- 1680
ETIM Clasification
- Classification
- EC000216
- Class name
- Switch disconnector
- Number of knife blade fuse holders
- 3
- Mounting method
- DIN-rail mounted
- Version as main switch
- Yes
- Version as maintenance-/service switch
- Yes
- Version as safety switch
- Yes
- Version as emergency stop installation
- Yes
- Max. rated operation voltage Ue AC
- 690V
- Rated permanent current Iu
- 16A
- Rated operation power at AC-23, 400 V
- 7,5kW
- Number of poles
- 3
- Motor drive optional
- No
- Motor drive integrated
- No
- Voltage release optional
- No
- Suitable for floor mounting
- Yes
- Suitable for distribution board installation
- Yes
- Suitable for intermediate mounting
- Yes
- Type of control element
- Turn button
- Type of electrical connection of main circuit
- Frame clamp
- Degree of protection (IP), front side
- IP20
