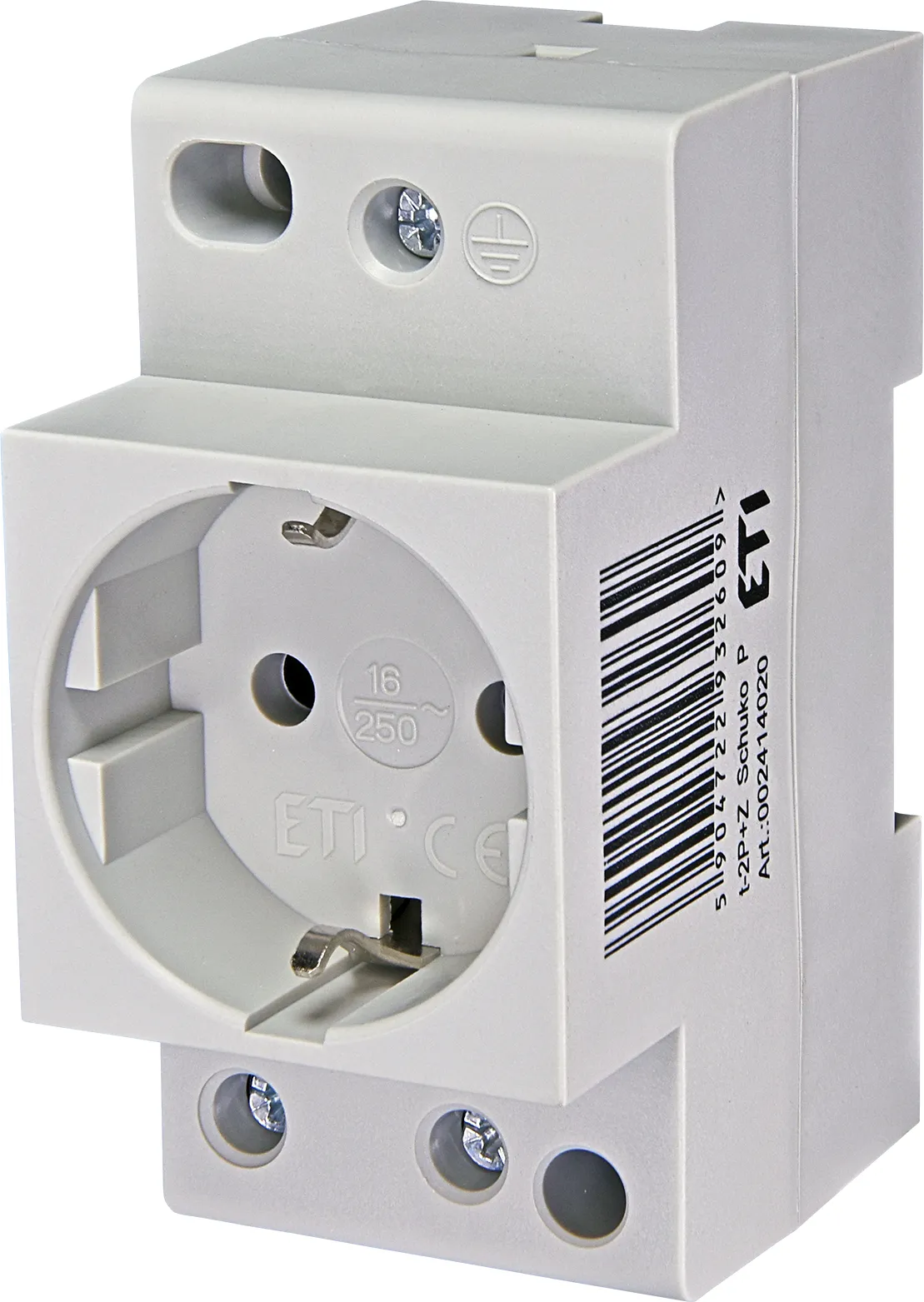

Socket t-2P+Z Schuko P 002414020
Specifications
- ETI Code:
- 002414020
- Description:
- t-2P+Z Schuko P
- Class name:
- Socket
- sort_order:
- 4
- id_level1:
- 475
- l1_sort_order:
- 1166
- l2_sort_order:
- 1178
- l3_sort_order:
- 1179
- l4_sort_order:
- 1180
- l5_sort_order:
- 1211
- l6_sort_order:
- 1212
- Catalogue Group:
- DIN sockets
- Catalogue subgroup:
- Schuko
- Function:
- DIN socket
- Rated current (A):
- 16
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400074485
- Net weight of the product
- 80 g
- Customs tariff
- 85366990
Basic packaging
- Basic packaging quantity
- 5
- EAN code for a basic packaging
- 5904722995956
- Basic packaging weight
- 0.5 kg
Transport packaging
- Transport packaging quantity
- 100
- EAN code for a transport packaging
- 5904722995963
- Transport packaging weight
- 10 kg
- Pallet quantity
- 3000
ETIM Clasification
- Classification
- EC000125
- Class name
- Socket outlet
- Rated current
- 16
- Model
- Protective contact (type F)
- Protective contact
- Yes
- Number of active contacts (round)
- 2
- Number of units
- 1
- Number of modules (module system)
- 2,5
- Number of phases
- 1
- Imprint/indication
- Without imprint
- Connection type
- Screwed terminal
- With hinged lid
- No
- Colour
- Grey
- RAL-number (similar)
- 7035
- Special power supply
- No special power supply
- Mounting method
- Other
- Type of fastening
- Snap mounting (engagement)
- Material
- Plastic
- Halogen free
- Yes
- Nominal current
- 16A
- Nominal voltage
- 250V
- Type of drive
- 50Hz
- Suitable for degree of protection (IP)
- IP20
- Device width
- 45mm
- Device height
- 90mm
- Device depth
- 65mm
