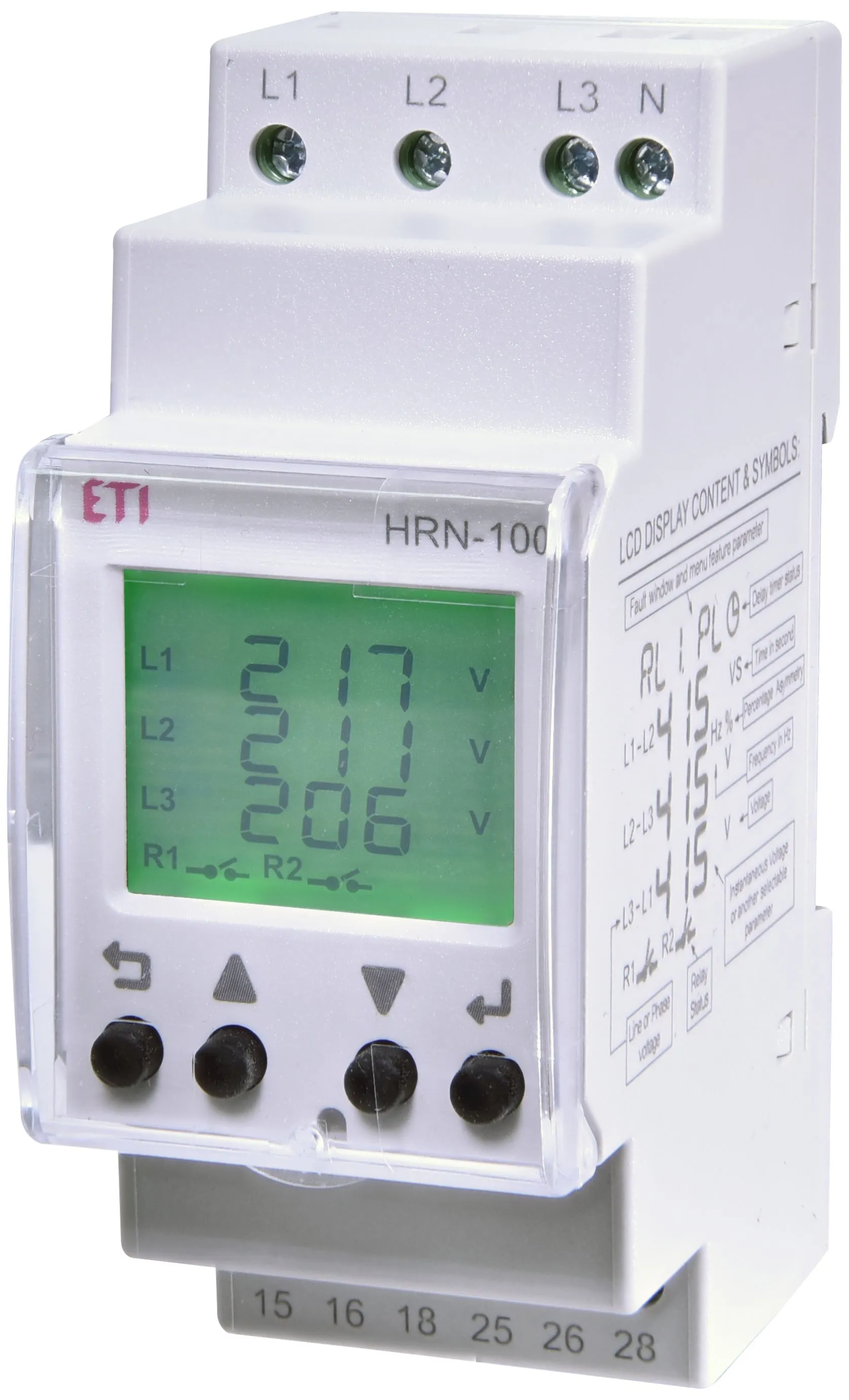

Control relay HRN-100 002470303
Specifications
- ETI Code:
- 002470303
- Description:
- HRN-100
- Class name:
- Control relay
- id_level1:
- 475
- l1_sort_order:
- 1166
- l2_sort_order:
- 1213
- l3_sort_order:
- 1214
- l4_sort_order:
- 1215
- l5_sort_order:
- 1226
- l6_sort_order:
- 1227
- Number of CO contacts:
- 1
- Maximum load capacity at AC1 (VA):
- 1200
- Function:
- Monitoring and Control relays
- Supply voltage (V):
- 400
- Type of control:
- Umax and Umin, sequence phase, phase and neutral failure, frequency
- Number of contacts:
- 2
- Voltage type:
- AC
- Rated current (A):
- 5
Documents
Logistic Data
Product
- Net weight of the product
- 0.132 kg
- Customs tariff
- 85364900
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 3838895981015
- Transport packaging weight
- 0.132 kg
- Pallet quantity
- 2000
ETIM Clasification
- Classification
- EC001438
- Class name
- Voltage monitoring relay
- Voltage type
- AC
- Rated current
- 5
- Type of electric connection
- Screw connection
- Single-phase under voltage possible
- Yes
- Three-phase under voltage possible
- Yes
- Single-phase over voltage possible
- Yes
- Three-phase over voltage possible
- Yes
- Single-phase hysteresis possible
- Yes
- Three-phase hysteresis possible
- Yes
- Contains function DC-under voltage
- No
- Contains function DC-over voltage
- No
- Contains function DC-voltage hysteresis
- No
- Voltage measuring range 1
- 85 to 310V
- Voltage measuring range 2
- 150 to 535V
- Type of voltage measuring range
- AC
- Response value voltage
- 90/155 to 288/500V
- Min. adjustable delay-on energization time
- 0,1s
- Max. permitted delay-on energization time
- 999s
- Min. adjustable off-delay time
- 0,1s
- Max. permitted off-delay time
- 999s
- Number of contacts as change-over contact
- 2
- Width
- 36mm
- Height
- 90mm
- Depth
- 66,5mm
