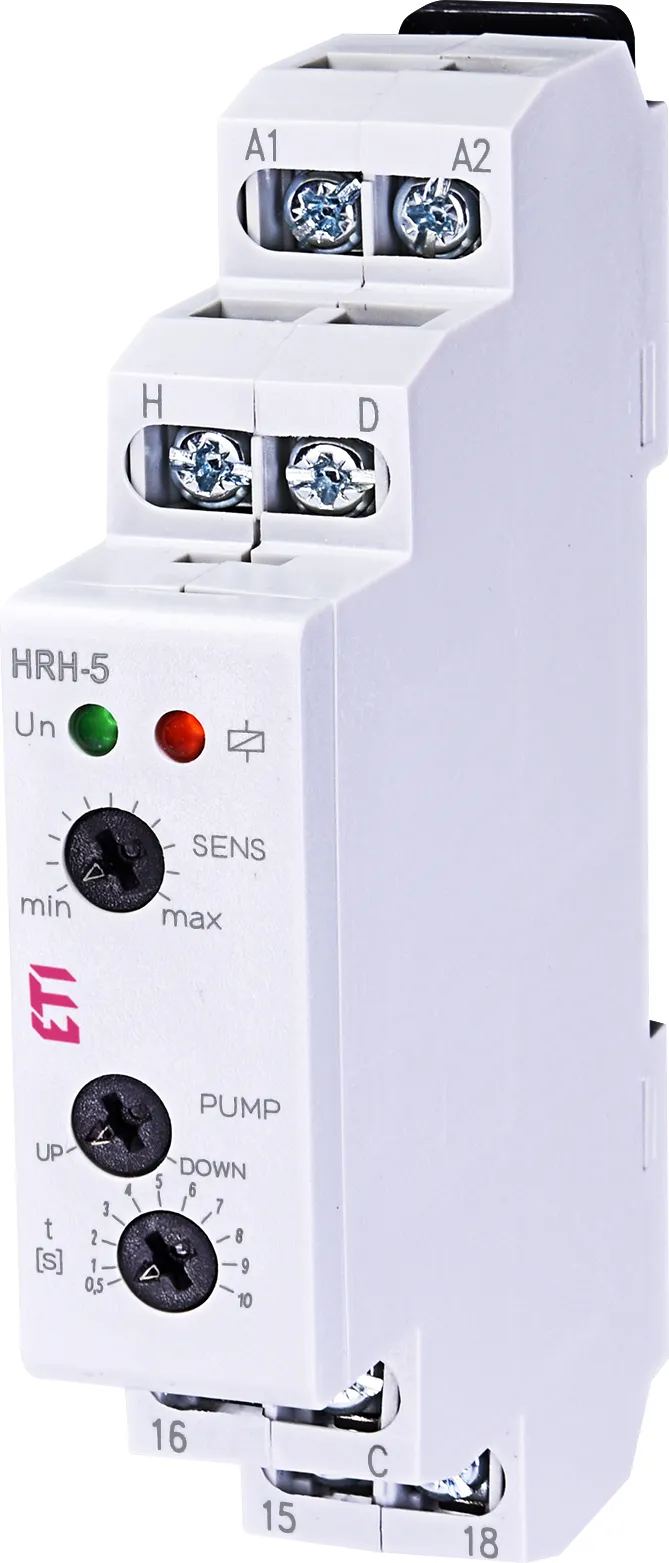

Control relay HRH-5 002471715
Specifications
- ETI Code:
- 002471715
- Description:
- HRH-5
- Class name:
- Control relay
- DC rated control supply voltage Uc (V):
- 24-240
- Maximum load capacity at AC1 (VA):
- 2500
- AC rated control supply voltage Uc (V) :
- 24-240
- Function:
- Monitoring and Control relays
- Supply voltage (V):
- 24-240
- Type of control:
- Monitoring levels
- Number of contacts:
- 1
- Voltage type:
- AC/DC
- Rated current (A):
- 8
- Type of contacts:
- CO
Documents
Logistic Data
Product
- EAN code for a single product
- Net weight of the product
- 0.072 kg
- Customs tariff
- 85364900
- logis_net_width
- 18 mm
- logis_net_height
- 90 mm
- logis_net_depth
- 64 mm
Level 1 Packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895489160
- Basic packaging weight
- 0.08 kg
Level 2 Packaging
- Transport packaging quantity
- 10
- EAN code for a transport packaging
- 3838895494782
- Transport packaging weight
- 0.8 kg
- Pallet quantity
- 10000
ETIM Clasification
- Classification
- EC001447
- Class name
- (Fill) level monitoring relay
- Rated current
- 8
- Voltage type
- AC/DC
- Type of electric connection
- Screw connection
- Rated control supply voltage AC 50 Hz
- 24…240V
- Rated control supply voltage DC
- 24-240V
- Voltage type for actuating
- AC/DC
- Number of inputs for electrodes
- 2
- Min. adjustable operate delay time
- 0.5s
- Max. permitted operate delay time
- 10s
- Response value sensitivity adjustable
- Yes
- Number of contacts as change-over contact
- 1
- Physical measurement principle
- Conductive
- Width
- 18mm
- Height
- 90mm
- Depth
- 65mm
