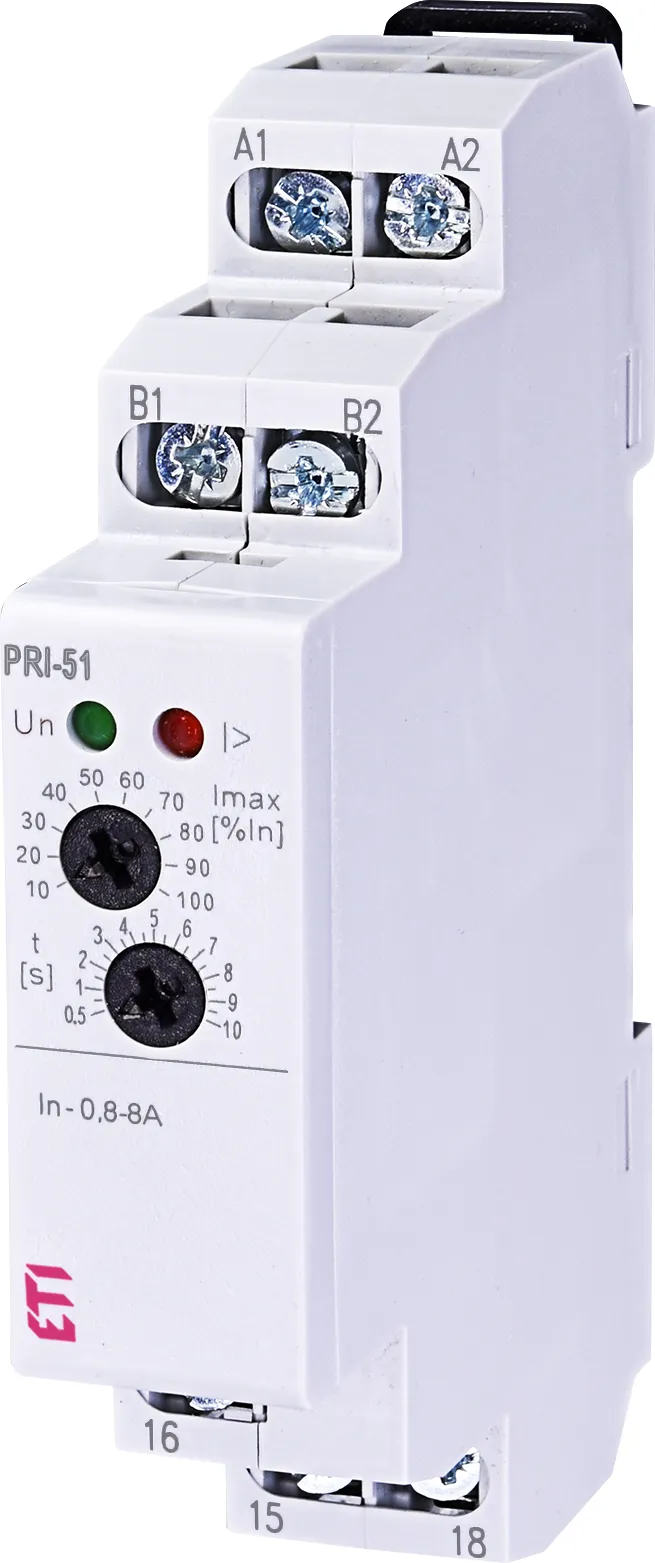

Control relay PRI-51/8 002471819
Specifications
- ETI Code:
- 002471819
- Description:
- PRI-51/8
- Class name:
- Control relay
- sort_order:
- 12
- id_level1:
- 475
- l1_sort_order:
- 1166
- l2_sort_order:
- 1213
- l3_sort_order:
- 1214
- l4_sort_order:
- 1215
- l5_sort_order:
- 1246
- l6_sort_order:
- 1247
- Number of CO contacts:
- 1
- AC rated control supply voltage Uc (V) :
- 24…24
- DC rated control supply voltage Uc (V):
- 24
- Maximum load capacity at AC1 (VA):
- 2500
- Function:
- Monitoring and Control relays
- Supply voltage (V):
- 24-240
- Number of contacts:
- 1
- Voltage type:
- AC/DC
- Rated current (A):
- 8
Documents
Logistic Data
Product
- Net weight of the product
- 0.07 kg
- Customs tariff
- 85364900
- logis_net_width
- 18 mm
- logis_net_height
- 90 mm
- logis_net_depth
- 64 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895424031
- Basic packaging weight
- 0.06 kg
Transport packaging
- Transport packaging quantity
- 10
- EAN code for a transport packaging
- 3838895424048
- Transport packaging weight
- 0.7 kg
- Pallet quantity
- 11250
ETIM Clasification
- Classification
- EC001440
- Class name
- Current monitoring relay
- Rated current
- 8
- Voltage type
- AC/DC
- Type of electric connection
- Clip connection
- Single-phase under current possible
- Yes
- Single-phase overcurrent possible
- Yes
- Rated control supply voltage AC 50 Hz
- 24…240V
- Rated control supply voltage DC
- 24V
- Voltage type for actuating
- AC/DC
- Current measuring range
- 0.8…8A
- Number of contacts as change-over contact
- 1
- Width
- 18mm
- Height
- 90mm
- Depth
- 65mm
Images & Diagrams
