Fuse - base PK 2 M10-M10 DC 1000V 1p 004122024
Specifications
- ETI Code:
- 004122024
- Description:
- PK 2 M10-M10 DC 1000V 1p
- Class name:
- Fuse - base
- sort_order:
- 2
- id_level1:
- 2781
- l1_sort_order:
- 6047
- l2_sort_order:
- 6130
- l3_sort_order:
- 6139
- l4_sort_order:
- 6140
- l5_sort_order:
- 6141
- l6_sort_order:
- 6142
- Rated current (A):
- 400
- Size:
- NH2
- Rated AC voltage (V):
- 1000
- Rated DC voltage (V):
- 1000
- Product group:
- LV-fuse base
- Connection:
- M10
- Mounting:
- Screw mounting
- Standards:
- IEC60269
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400061690
- Net weight of the product
- 0.85 kg
- Customs tariff
- 85389099
- logis_net_width
- 25 mm
- logis_net_height
- 225 mm
- logis_net_depth
- 87 mm
Basic packaging
- Basic packaging quantity
- 3
- EAN code for a basic packaging
- 3838895742289
- Basic packaging weight
- 2.69 kg
Transport packaging
- Transport packaging quantity
- 15
- EAN code for a transport packaging
- 3838895742296
- Transport packaging weight
- 13.7 kg
- Pallet quantity
- 270
ETIM Clasification
- Classification
- EC000067
- Class name
- Low Voltage HRC fuse base
- Max. rated operation voltage Ue AC
- 1000
- Rated voltage DC
- 1000
- Mounting method
- Screw mounting
- Construction size
- Other
- Number of poles
- 1
- Rated current
- 400A

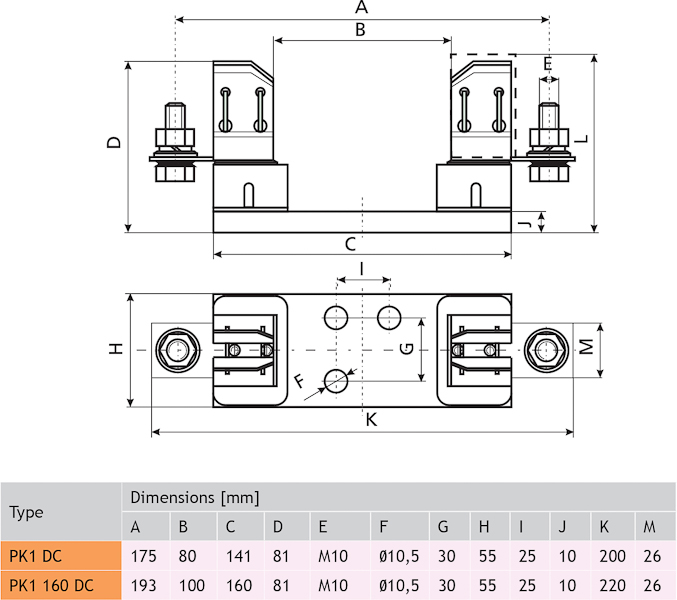

Images & Diagrams
Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
Tags
Accessories 60
>
>
0
PK 2 M10-M10 DC 1000V 1p
