Fuse - base U1-1/GZ/PV 004122035
Specifications
- ETI Code:
- 004122035
- Description:
- U1-1/GZ/PV
- Class name:
- Fuse - base
- sort_order:
- 1
- id_level1:
- 2781
- l1_sort_order:
- 6047
- l2_sort_order:
- 6130
- l3_sort_order:
- 6147
- l4_sort_order:
- 6148
- l5_sort_order:
- 6149
- l6_sort_order:
- 6150
- Rated current (A):
- 160
- Size:
- NH1
- Rated DC voltage (V):
- 1000
- Product group:
- LV-fuse base
- Connection:
- M10
- Max. permissable power dissipation per fuse link (W):
- 45
Documents
Logistic Data
Product
- Net weight of the product
- 0.38 kg
- Customs tariff
- 85389099
- logis_net_width
- 59 mm
- logis_net_height
- 200 mm
- logis_net_depth
- 107 mm
Basic packaging
- Basic packaging quantity
- 2
- EAN code for a basic packaging
- 3838895601302
- Basic packaging weight
- 0.768 kg
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 3838400068910
- Transport packaging weight
- 0.387 kg
ETIM Clasification
- Classification
- EC000067
- Class name
- Low Voltage HRC fuse base
- Rated voltage DC
- 1000
- Construction size
- NH1
- Number of poles
- 1
- Rated current
- 160A

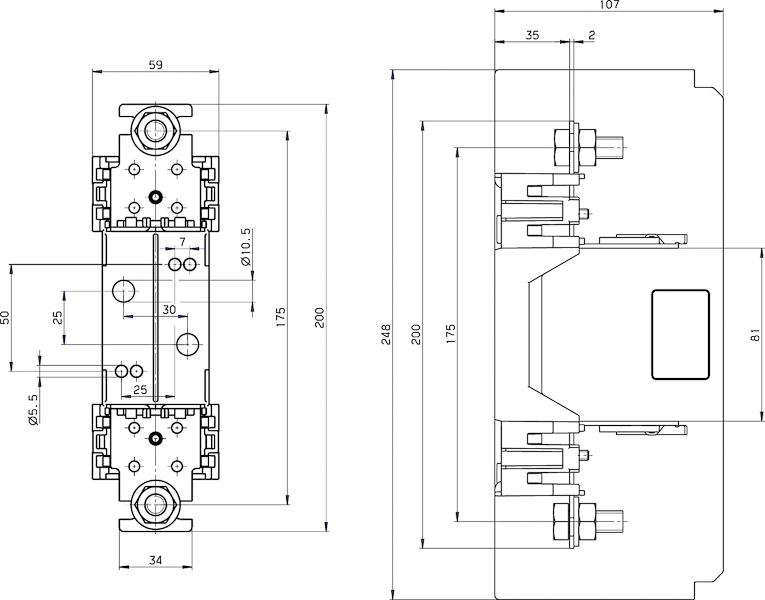

Images & Diagrams
