Strip-fuseway L3-2/1500V/3A/HA/PV 004122041
Specifications
- ETI Code:
- 004122041
- Description:
- L3-2/1500V/3A/HA/PV
- Class name:
- Strip-fuseway
- sort_order:
- 10015
- id_level1:
- 2579
- l1_sort_order:
- 5505
- l2_sort_order:
- 5929
- l3_sort_order:
- 5930
- l4_sort_order:
- 5931
- l5_sort_order:
- 5935
- l6_sort_order:
- 5936
- Rated current (A):
- 400
- Size:
- 2XL
- Rated AC voltage (V):
- 1500
- Rated DC voltage (V):
- 1500
- Product group:
- LV-fuse rail
- Connection:
- M12
Documents
Logistic Data
Product
- Net weight of the product
- 3.9 kg
- Customs tariff
- 85389099
- logis_net_width
- 100 mm
- logis_net_height
- 675 mm
- logis_net_depth
- 154 mm
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 3838895601517
- Transport packaging weight
- 3.89 kg
- Pallet quantity
- 115
ETIM Clasification
- Classification
- EC000067
- Class name
- Low Voltage HRC fuse base
- Max. rated operation voltage Ue AC
- 1500
- Rated voltage DC
- 1500
- Construction size
- Other
- Number of poles
- 1
- Rated current
- 400A

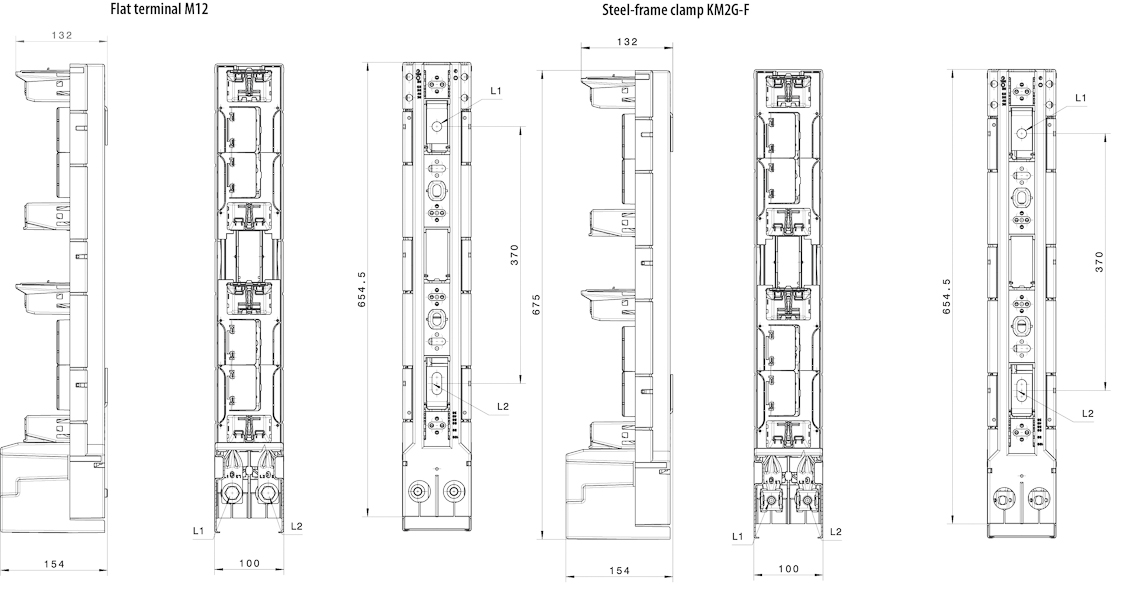

Images & Diagrams
Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
Tags
Accessories 13
>
>
0
L3-2/1500V/3A/HA/PV
