Fuse - base PK 2XL M10-M10 1500V 1p 004132019
Specifications
- ETI Code:
- 004132019
- Description:
- PK 2XL M10-M10 1500V 1p
- Class name:
- Fuse - base
- id_level1:
- 2579
- l1_sort_order:
- 5505
- l2_sort_order:
- 5869
- l3_sort_order:
- 5870
- l4_sort_order:
- 5871
- l5_sort_order:
- 5872
- l6_sort_order:
- 5874
- Rated current (A):
- 400
- Size:
- 2XL
- Rated AC voltage (V):
- 1500
- Rated DC voltage (V):
- 1500
- UL certificate:
- E356295
- Product group:
- LV-fuse base
- Connection:
- M10
- Mounting:
- Screw mounting
- Max. permissable power dissipation per fuse link (W):
- 45
- Standards:
- IEC 60269, UL 4248-1, UL 4248-19
Documents
Logistic Data
Product
- Net weight of the product
- 921 g
- Customs tariff
- 85389099
- logis_net_width
- 65 mm
- logis_net_height
- 285 mm
- logis_net_depth
- 87 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895654834
- Basic packaging weight
- 1.1 kg
Transport packaging
- Transport packaging quantity
- 8
- EAN code for a transport packaging
- 3838895654841
- Transport packaging weight
- 9.15 kg
- Pallet quantity
- 144
ETIM Clasification
- Classification
- EC000067
- Class name
- Low Voltage HRC fuse base
- Mounting method
- Screw mounting
- Max. rated operation voltage Ue AC
- 1500
- Rated voltage DC
- 1500
- Construction size
- Other
- Number of poles
- 1
- Rated current
- 400A

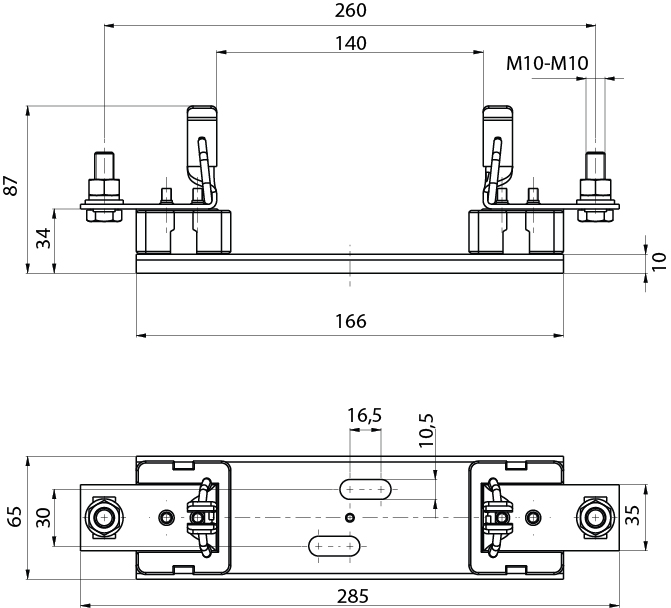

Images & Diagrams
