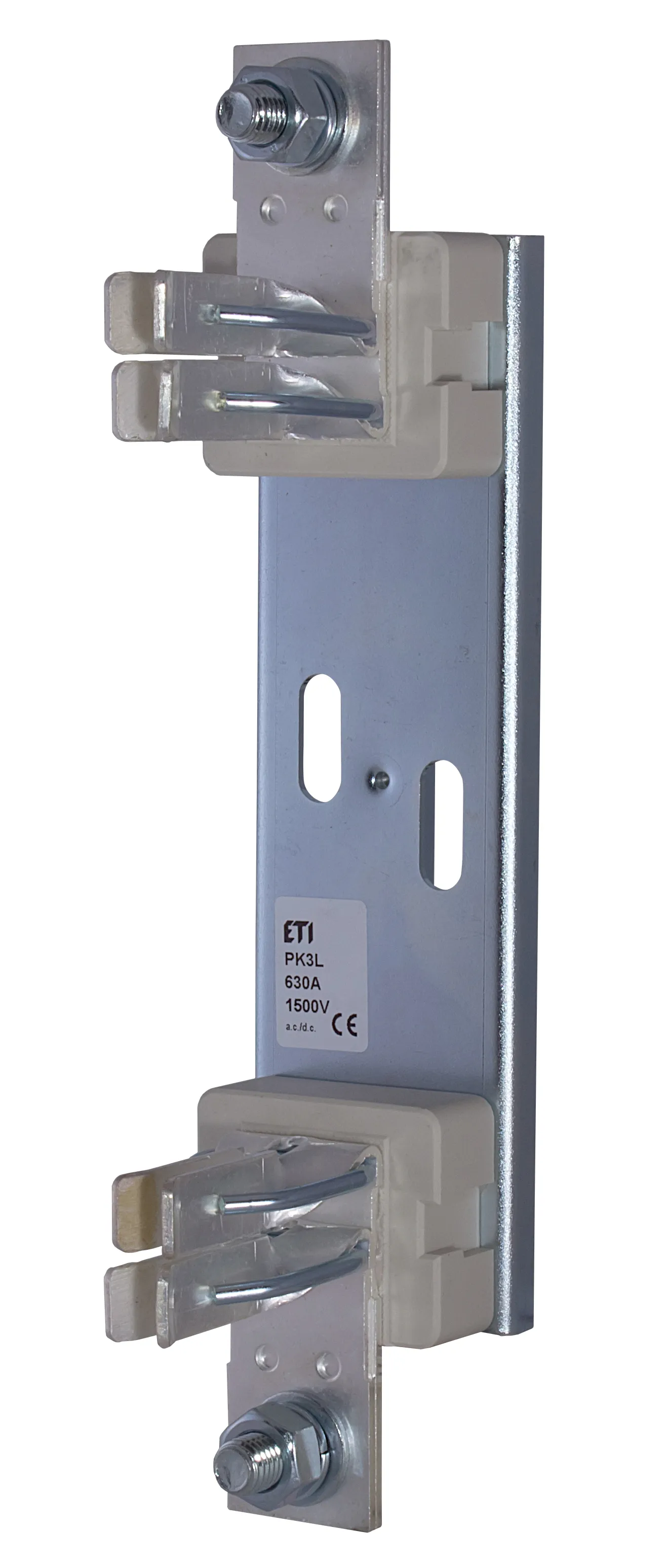

Fuse - base PK 3L M12-M12 1500V 1p 004132023
Specifications
- ETI Code:
- 004132023
- Description:
- PK 3L M12-M12 1500V 1p
- Class name:
- Fuse - base
- id_level1:
- 2579
- l1_sort_order:
- 5505
- l2_sort_order:
- 5869
- l3_sort_order:
- 5870
- l4_sort_order:
- 5871
- l5_sort_order:
- 5872
- l6_sort_order:
- 5875
- Rated current (A):
- 630
- Size:
- 3L
- Rated AC voltage (V):
- 1500
- Rated DC voltage (V):
- 1500
- UL certificate:
- E356295
- Product group:
- LV-fuse base
- Connection:
- M12
- Mounting:
- Screw mounting
- Max. permissable power dissipation per fuse link (W):
- 60
- Standards:
- IEC 60269, UL 4248-1, UL 4248-19
Documents
Logistic Data
Product
- Net weight of the product
- 1.184 kg
- Customs tariff
- 85389099
- logis_net_width
- 65 mm
- logis_net_height
- 300 mm
- logis_net_depth
- 102 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895654858
- Basic packaging weight
- 1.35 kg
Transport packaging
- Transport packaging quantity
- 10
- EAN code for a transport packaging
- 3838895654865
- Transport packaging weight
- 13.94 kg
- Pallet quantity
- 160
ETIM Clasification
- Classification
- EC000067
- Class name
- Low Voltage HRC fuse base
- Mounting method
- Screw mounting
- Max. rated operation voltage Ue AC
- 1500
- Rated voltage DC
- 1500
- Construction size
- Other
- Number of poles
- 1
- Rated current
- 630A

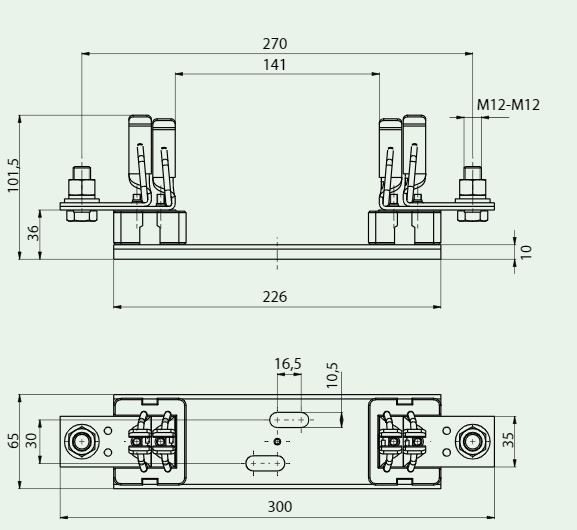

Images & Diagrams
