Assemblied distribution box RFVE1100/12-DC2/2-16-EMT12 001105402

Specifications

ETI Code:
001105402
Description:
RFVE1100/12-DC2/2-16-EMT12
Class name:
Assemblied distribution box
Number of inputs:
2
Rated current (A):
16
Rated DC voltage (V):
1100

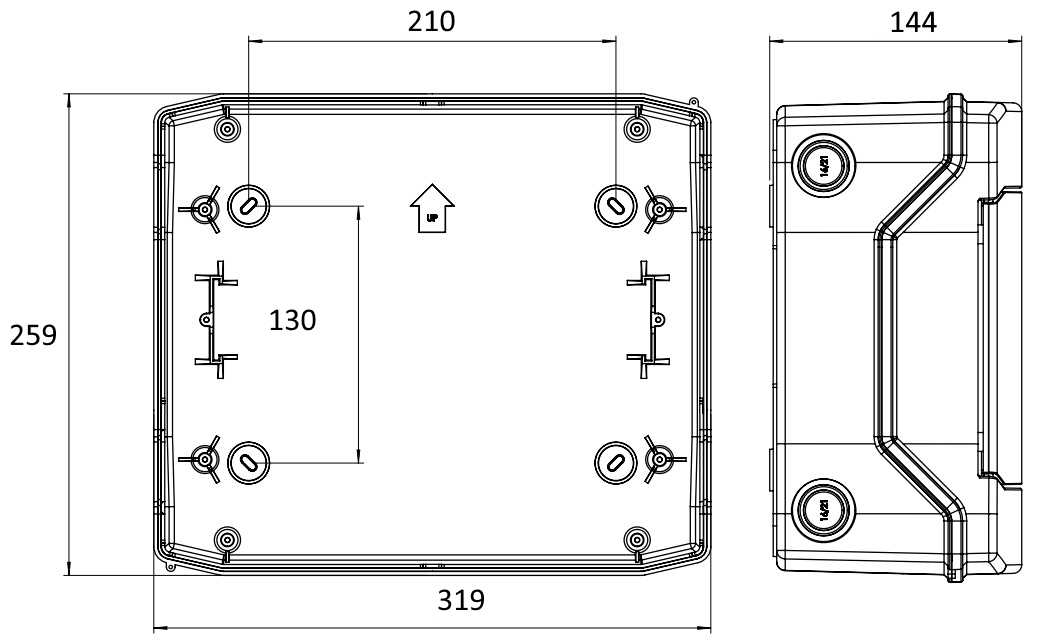

Dimensions:
319x259x144

Documents

Product

Net weight of the product
2.48  kg
Customs tariff
85371098

Transport packaging

Transport packaging quantity
1
EAN code for a transport packaging
3838895948063
Transport packaging weight
2.7  kg
Pallet quantity
100

Images & Diagrams

001105402 Assemblied distribution box, RFVE1100/12-DC2/2-16-EMT12 Green protect PV distribution boards 1, 2 inputs 12 modules 1100V d.c. 16 A d.c. Photovoltaic, battery fuses and devices GREEN PROTECT PV Distribution Boards RFVE1100/12-DC2/ Rated current 16A Rated DC voltage 1100V Dimensions 319x259x144 Number of inputs 2
