Assemblied distribution box RFVE1100/24-DC2/2-16-EMT2-VC 001105426

Specifications

ETI Code:
001105426
Description:
RFVE1100/24-DC2/2-16-EMT2-VC
Class name:
Assemblied distribution box
Number of inputs:
2
Rated current (A):
16
Rated DC voltage (V):
1100

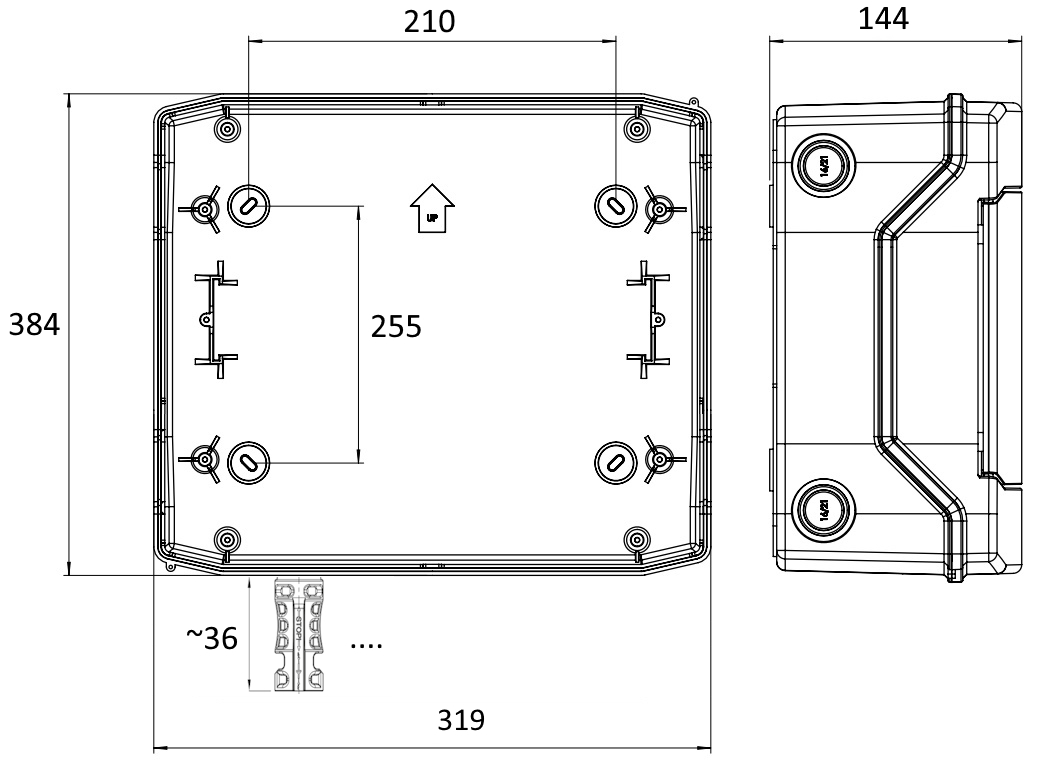

Dimensions:
319x384x144

Documents

Product

Net weight of the product
3.5  kg
Customs tariff
85371098

Transport packaging

Transport packaging quantity
1
EAN code for a transport packaging
3838400137326
Transport packaging weight
3.5  kg
Pallet quantity
56

Images & Diagrams

001105426 Assemblied distribution box, RFVE1100/24-DC2/2-16-EMT2-VC Green protect PV distribution boards 1, 2 inputs 24 modules 1100V d.c. 16 A d.c. Photovoltaic, battery fuses and devices GREEN PROTECT PV Distribution Boards RFVE1100/24-DC2/ Rated current 16A Rated DC voltage 1100V Dimensions 319x384x144 Number of inputs 2
