Assemblied distribution box RFVE1100/18-DC3/3-16-EMT2-C 001107015

Specifications

ETI Code:
001107015
Description:
RFVE1100/18-DC3/3-16-EMT2-C
Class name:
Assemblied distribution box
Number of inputs:
3
Rated current (A):
16
Rated DC voltage (V):
1100

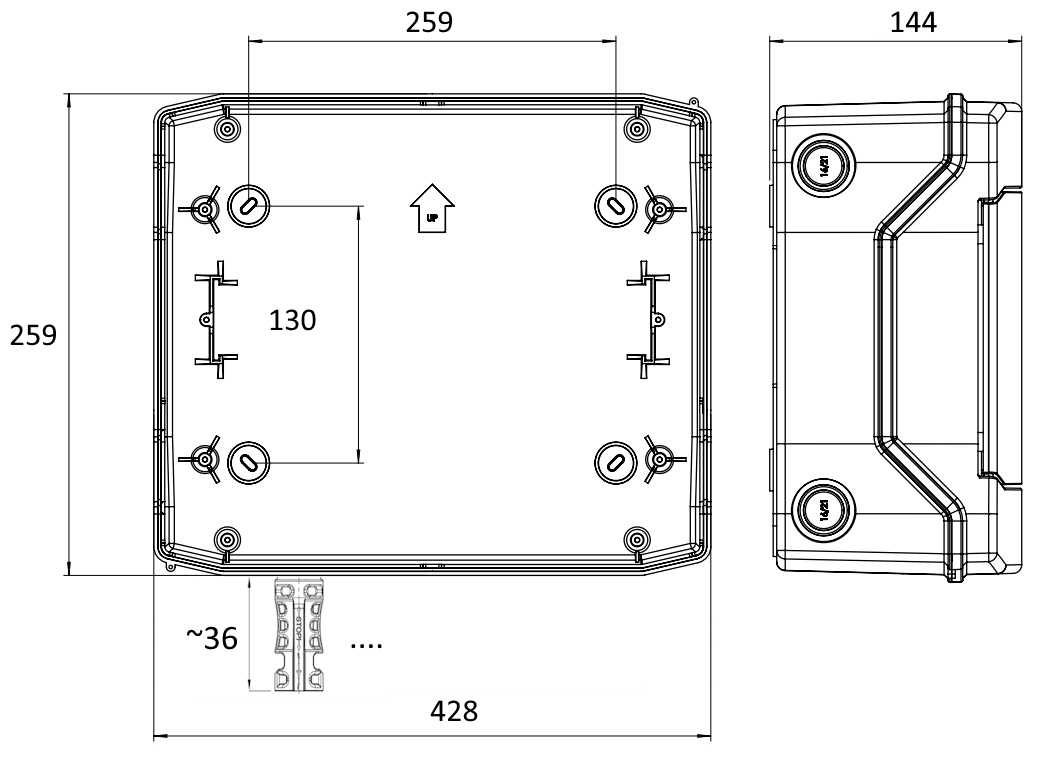

Dimensions:
428x259x144

Documents

Product

Net weight of the product
4.33  kg
Customs tariff
85371098

Transport packaging

Transport packaging quantity
1
EAN code for a transport packaging
3838400114273
Transport packaging weight
4.5  kg
Pallet quantity
62

Images & Diagrams

001107015 Assemblied distribution box, RFVE1100/18-DC3/3-16-EMT2-C Green protect PV distribution boards 3, 4, 5, 6 inputs 18 modules 1100V d.c. 16 A d.c. Photovoltaic, battery fuses and devices GREEN PROTECT PV Distribution Boards RFVE1100/18-DC3/ Rated current 16A Rated DC voltage 1100V Dimensions 428x259x144 Number of inputs 3
