Assemblied distribution box RFVE1100/44-DC4/4-16-EMT12-C 001107084

Specifications

ETI Code:
001107084
Description:
RFVE1100/44-DC4/4-16-EMT12-C
Class name:
Assemblied distribution box
Number of inputs:
4
Rated current (A):
16
Rated DC voltage (V):
1100
Dimensions:
400x400x200

Documents

Product

Net weight of the product
9.53  kg
Customs tariff
85371098

Transport packaging

Transport packaging quantity
1
EAN code for a transport packaging
3838400114990
Transport packaging weight
16  kg
Pallet quantity
31

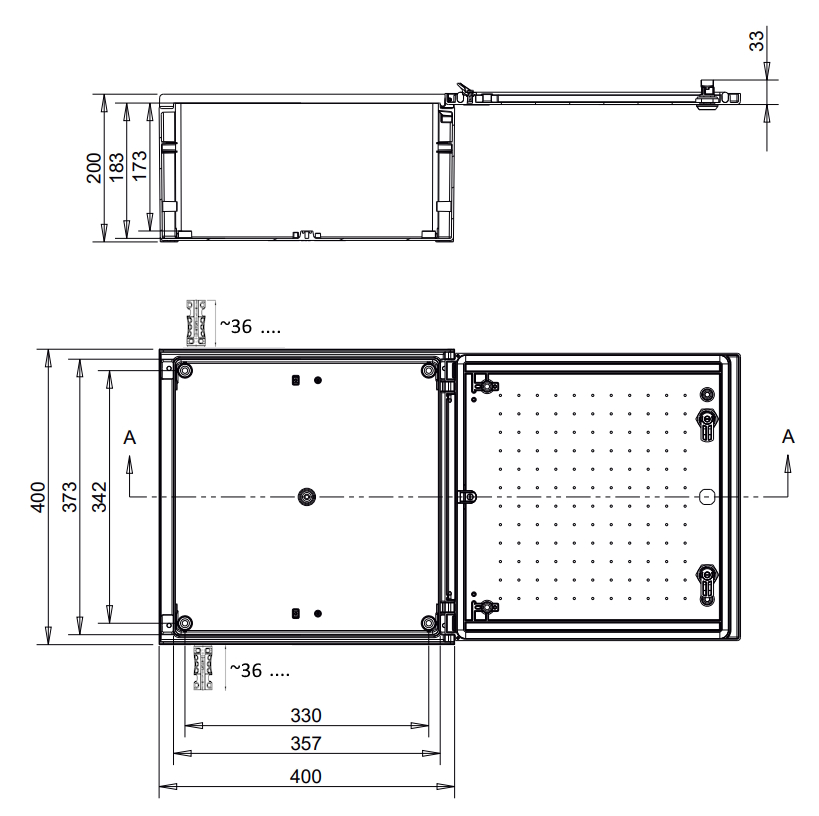

Images & Diagrams

001107084 Assemblied distribution box, RFVE1100/44-DC4/4-16-EMT12-C Green protect PV distribution boards Custom Custom Custom Custom Photovoltaic, battery fuses and devices GREEN PROTECT PV Distribution Boards RFVE1100/44-DC4/ Rated current 16A Rated DC voltage 1100V Dimensions 400x400x200 Number of inputs 4
