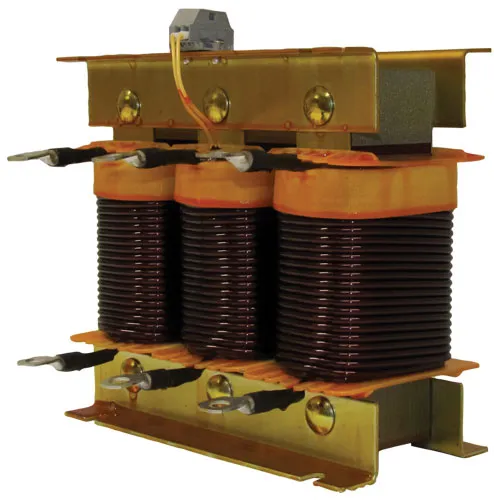

Detuning reactor HFL 14/30 Al 004656832
Specifications
- ETI Code:
- 004656832
- Description:
- HFL 14/30 Al
- Class name:
- Detuning reactor
- sort_order:
- 3
- id_level1:
- 3117
- l1_sort_order:
- 1918
- l2_sort_order:
- 1976
- l3_sort_order:
- 1977
- l4_sort_order:
- 1978
- l5_sort_order:
- 1982
- l6_sort_order:
- 1984
- Rated current (A):
- 43,3
- Rated voltage (V):
- 400
- Type:
- aluminum wire
- Reactive power (kVAr):
- 30
- Filtering factor:
- 0,14
- Inductance (µH):
- 2760
- Heat insulation:
- F (155°C)
- Thermal protection (°C) NC contact:
- 90
Documents
Logistic Data
Product
- Net weight of the product
- 44 kg
- Customs tariff
- 85049013
- logis_net_width
- 360 mm
- logis_net_height
- 320 mm
- logis_net_depth
- 160 mm
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 3838895698005
- Transport packaging weight
- 44 kg
- Pallet quantity
- 18
ETIM Clasification
- Classification
- EC002563
- Class name
- Coil for low-voltage
- Suitable as interference suppression reactance coil
- Yes
- Number of poles, primary side
- 3
- Rated operating frequency
- 50…50Hz
- Max. rated operation voltage Ue
- 400V
- Degree of protection (IP)
- IP00
- Resonance frequency
- 134Hz
