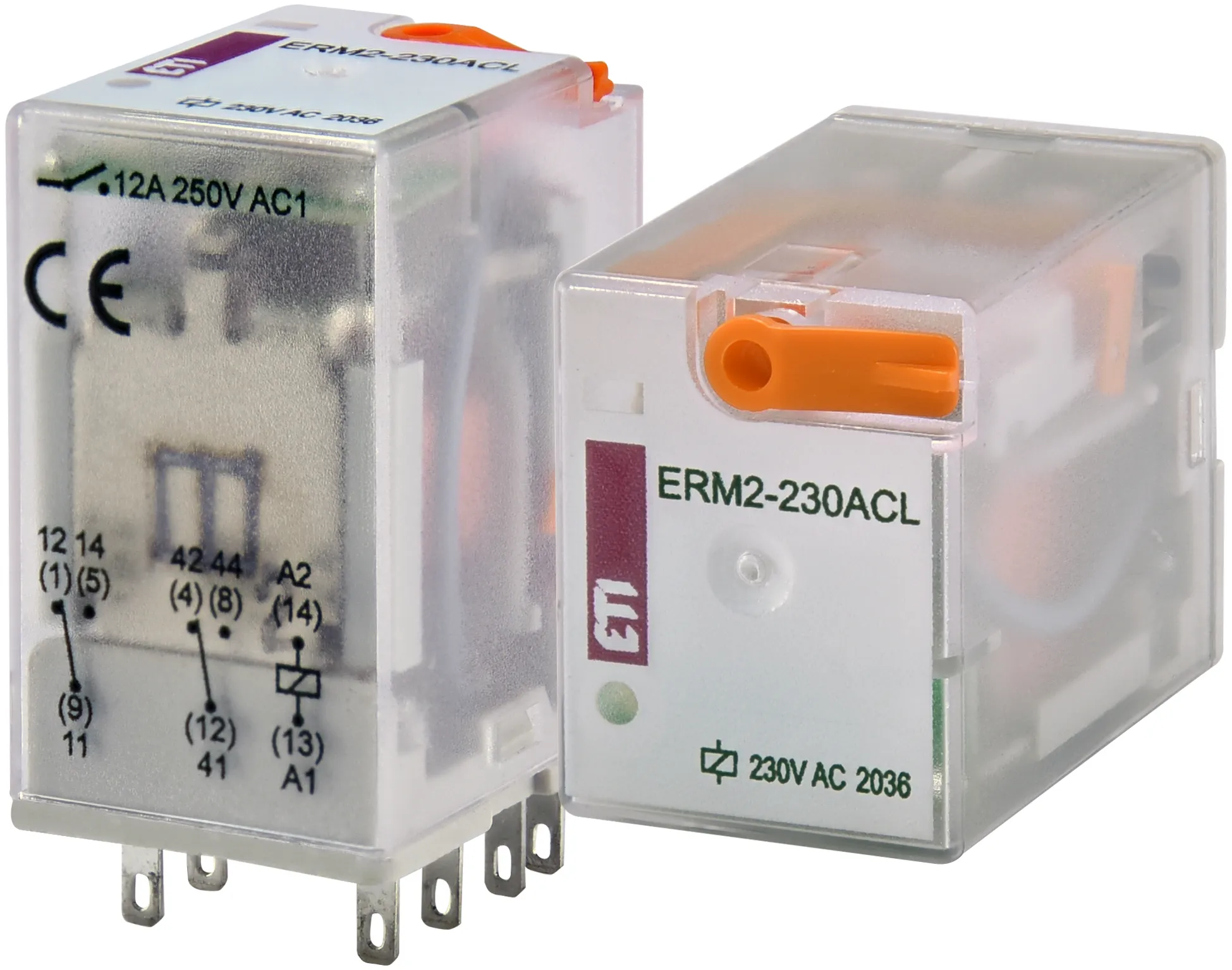

Relay ERM2-230ACL 002473005
Specifications
- ETI Code:
- 002473005
- Description:
- ERM2-230ACL
- Class name:
- Relay
- id_level1:
- 475
- l1_sort_order:
- 1166
- l2_sort_order:
- 1347
- l3_sort_order:
- 1348
- l4_sort_order:
- 1349
- l5_sort_order:
- 1350
- l6_sort_order:
- 1351
- Rated current (A):
- 12
- Voltage type:
- AC
- Uc rated coil voltage (V):
- 230
- Number of CO contacts:
- 2
- Switching voltage (V):
- 250
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400013590
- Net weight of the product
- 0.033 kg
- Customs tariff
- 85364900
- logis_net_width
- 21 mm
- logis_net_height
- 28 mm
- logis_net_depth
- 36 mm
Basic packaging
- Basic packaging quantity
- 10
- EAN code for a basic packaging
- 3838895680338
- Basic packaging weight
- 0.333 kg
Transport packaging
- Transport packaging quantity
- 100
- EAN code for a transport packaging
- 3838895680345
- Transport packaging weight
- 3.4 kg
- Pallet quantity
- 14700
ETIM Clasification
- Classification
- EC001437
- Class name
- Switching relay
- Rated current
- 12
- Voltage type
- AC
- Type of electric connection
- Plug-in connection
- Rated control supply voltage AC 50 Hz
- 230…230V
- Voltage type for actuating
- AC
- Drive, switching attitude
- Mono stable
- Number of contacts as change-over contact
- 2
- Complete with socket
- No
- Degree of protection (IP)
- IP40
- Width
- 21.2mm
- Height
- 27.5mm
- Depth
- 35.6mm
