Relay SSR1-230ACDC 002473051
Specifications
- ETI Code:
- 002473051
- Description:
- SSR1-230ACDC
- Class name:
- Relay
- Function:
- Slim relay
- Output circuit:
- Triac
- Uc rated coil voltage (V):
- 230
- Number of contacts:
- 1
- Rated current (A):
- 1,2
- Switching voltage (V):
- 400
- Voltage type:
- AC/DC
- Type of contacts:
- NO
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400013972
- Net weight of the product
- 0.04 kg
- Customs tariff
- 85364900
- logis_net_width
- 6 mm
- logis_net_height
- 94 mm
- logis_net_depth
- 80 mm
Level 1 Packaging
- Basic packaging quantity
- 10
- EAN code for a basic packaging
- 3838895761518
- Basic packaging weight
- 0.4 kg
Level 2 Packaging
- Transport packaging quantity
- 100
- EAN code for a transport packaging
- 3838895761532
- Transport packaging weight
- 4.3 kg
- Pallet quantity
- 3600

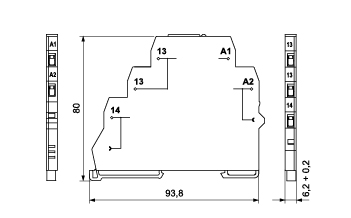

Images & Diagrams
