Relay SER1-230ACDC 002473053
Specifications
- ETI Code:
- 002473053
- Description:
- SER1-230ACDC
- Class name:
- Relay
- sort_order:
- 2
- id_level1:
- 475
- l1_sort_order:
- 1166
- l2_sort_order:
- 1347
- l3_sort_order:
- 1378
- l4_sort_order:
- 1379
- l5_sort_order:
- 1380
- l6_sort_order:
- 1381
- Function:
- Slim relay
- Output circuit:
- Electric
- Uc rated coil voltage (V):
- 230
- Number of contacts:
- 1
- Rated current (A):
- 6
- Switching voltage (V):
- 250
- Voltage type:
- AC/DC
- Type of contacts:
- 1xCO
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400013958
- Net weight of the product
- 0.04 kg
- Customs tariff
- 85364900
- logis_net_width
- 6 mm
- logis_net_height
- 94 mm
- logis_net_depth
- 80 mm
Basic packaging
- Basic packaging quantity
- 10
- EAN code for a basic packaging
- 3838895761570
- Basic packaging weight
- 0.4 kg
Transport packaging
- Transport packaging quantity
- 100
- EAN code for a transport packaging
- 3838895761594
- Transport packaging weight
- 4.3 kg
- Pallet quantity
- 3600
ETIM Clasification
- Classification
- EC001437
- Class name
- Switching relay
- Type of electric connection
- Screw connection
- With detachable clamps
- No
- Nominal current
- 6A
- Rated control supply voltage AC 50 Hz
- 230V
- Rated control supply voltage DC
- 230V
- Voltage type for actuating
- AC/DC
- Number of contacts as change-over contact
- 1
- Complete with socket
- Yes
- With LED indication
- Yes
- Width
- 7mm
- Height
- 80mm
- Depth
- 94mm

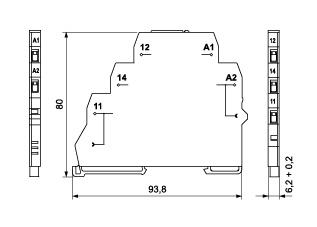

Images & Diagrams
