Base GZS80 002473100
Specifications
- ETI Code:
- 002473100
- Description:
- GZS80
- Class name:
- Base
Documents
Logistic Data
Product
- Net weight of the product
- 0.04 kg
- Customs tariff
- 85364900
Basic packaging
- Basic packaging quantity
- 10
- EAN code for a basic packaging
- 3838895715474
- Basic packaging weight
- 0.38 kg
Transport packaging
- Transport packaging quantity
- 450
- EAN code for a transport packaging
- 3838895715498
- Transport packaging weight
- 17.1 kg
- Pallet quantity
- 9000
ETIM Clasification
- Classification
- EC001456
- Class name
- Relay socket
- Type of electric connection
- Screw connection
- Mounting method
- DIN rail (top hat rail) 35 mm
- With detachable clamps
- No
- Number of pins
- 8

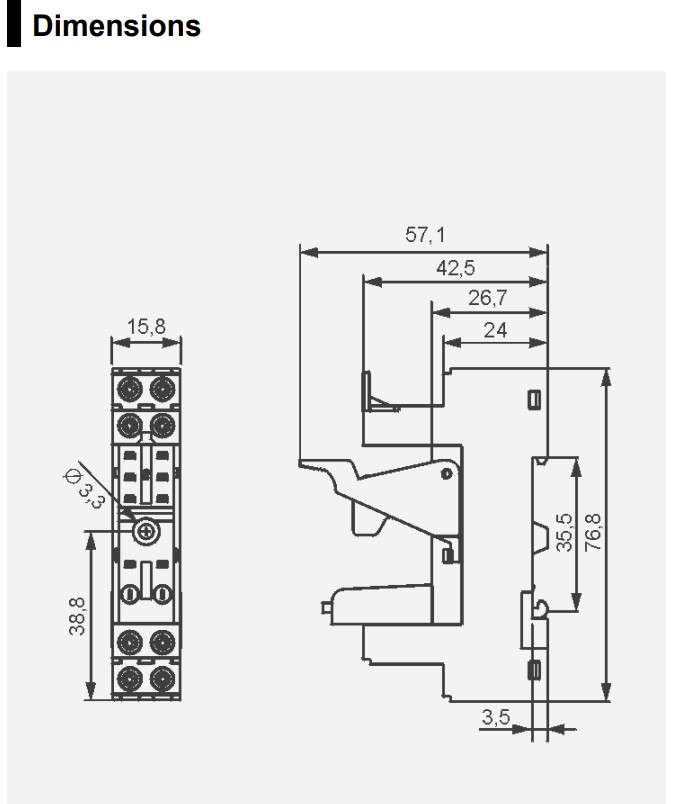

- Width
- 16mm
- Height
- 77mm
- Depth
- 43mm
GZS80
