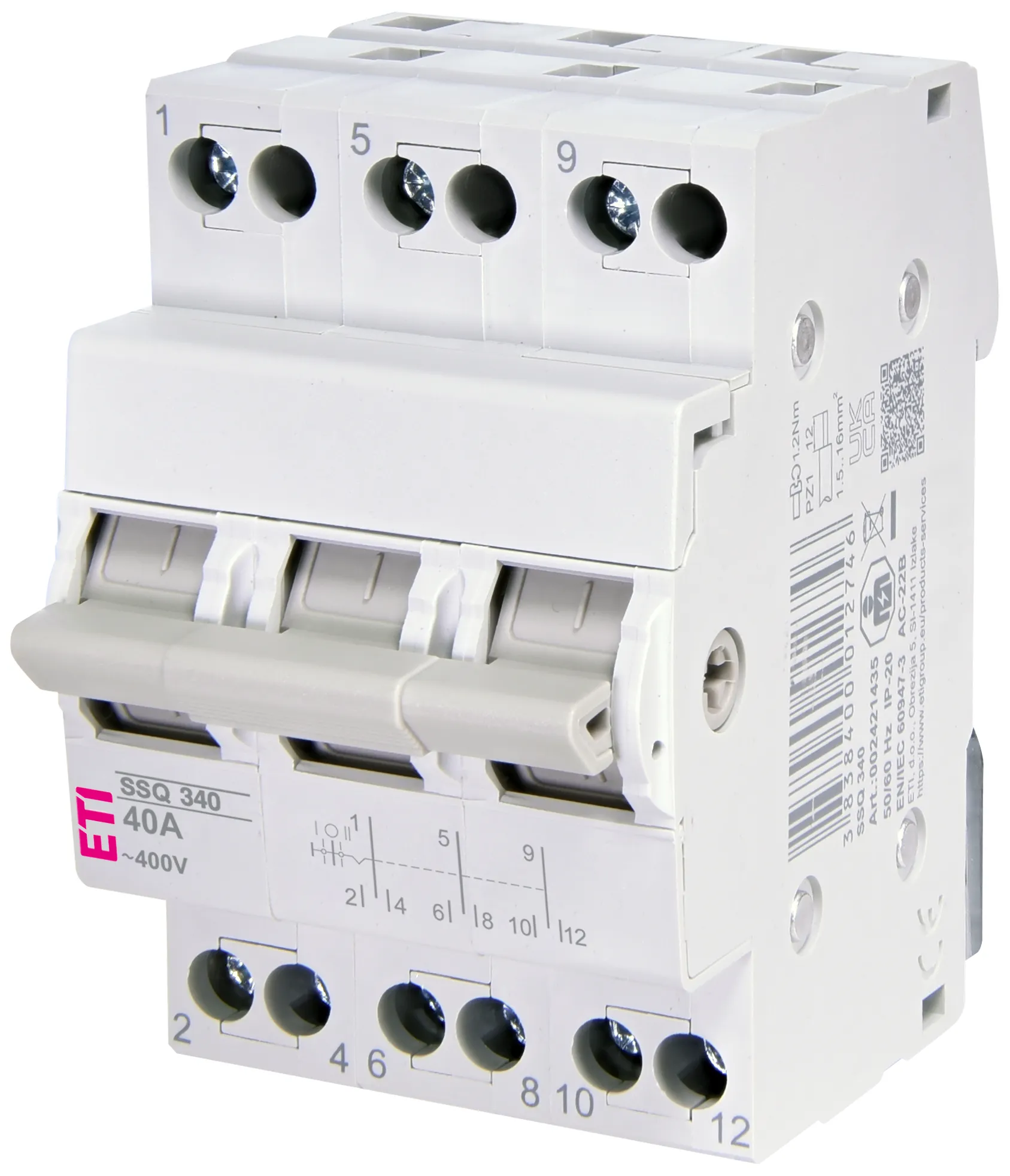

Center-off change-over switch SSQ 340 002421435
Specifications
- ETI Code:
- 002421435
- Description:
- SSQ 340
- Class name:
- Center-off change-over switch
- Function:
- Center-off change-over switch
- Rated current (A):
- 40
- Rated AC voltage (V):
- 400
- Number of poles:
- 3
- IP rating:
- IP20
- Max input cross-section (mm²):
- 16
- Rated Frequency (Hz):
- 50/60
- Standards:
- 60947-3
Documents
Logistic Data
Product
- Net weight of the product
- 0.234 kg
- Customs tariff
- 85365080
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895930785
- Basic packaging weight
- 0.264 kg
Transport packaging
- Transport packaging quantity
- 4
- EAN code for a transport packaging
- 3838895930792
- Transport packaging weight
- 1.056 kg
- Pallet quantity
- 2000
ETIM Clasification
- Classification
- EC001545
- Class name
- Main switch for distribution board
- Degree of protection (IP), front side
- 20
- Max. rated operation voltage Ue AC
- 400
- Number of knife blade fuse holders
- 3
- Type of drive
- 50/60
- Switching function
- Two-way switch
- Number of contacts as change-over contact
- 3
- Number of poles
- 3
- Rated current
- 40A
- Rated voltage
- 400V
- Min. rated voltage
- 10V
- Voltage type
- AC
- With signal lamp
- No
- Width in number of modular spacings
- 3
- Built-in depth
- 70mm
- Degree of protection (IP)
- IP20

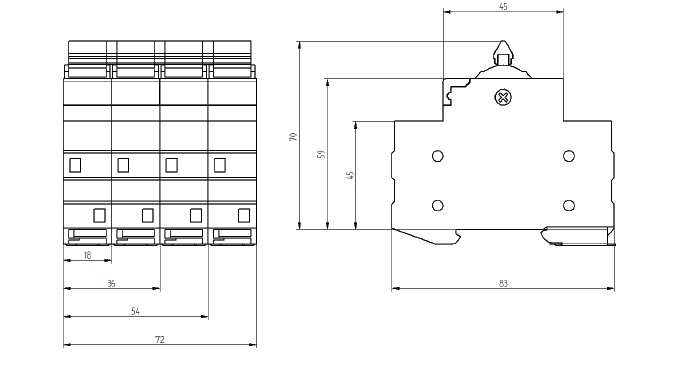

Images & Diagrams
Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
SSQ 340
