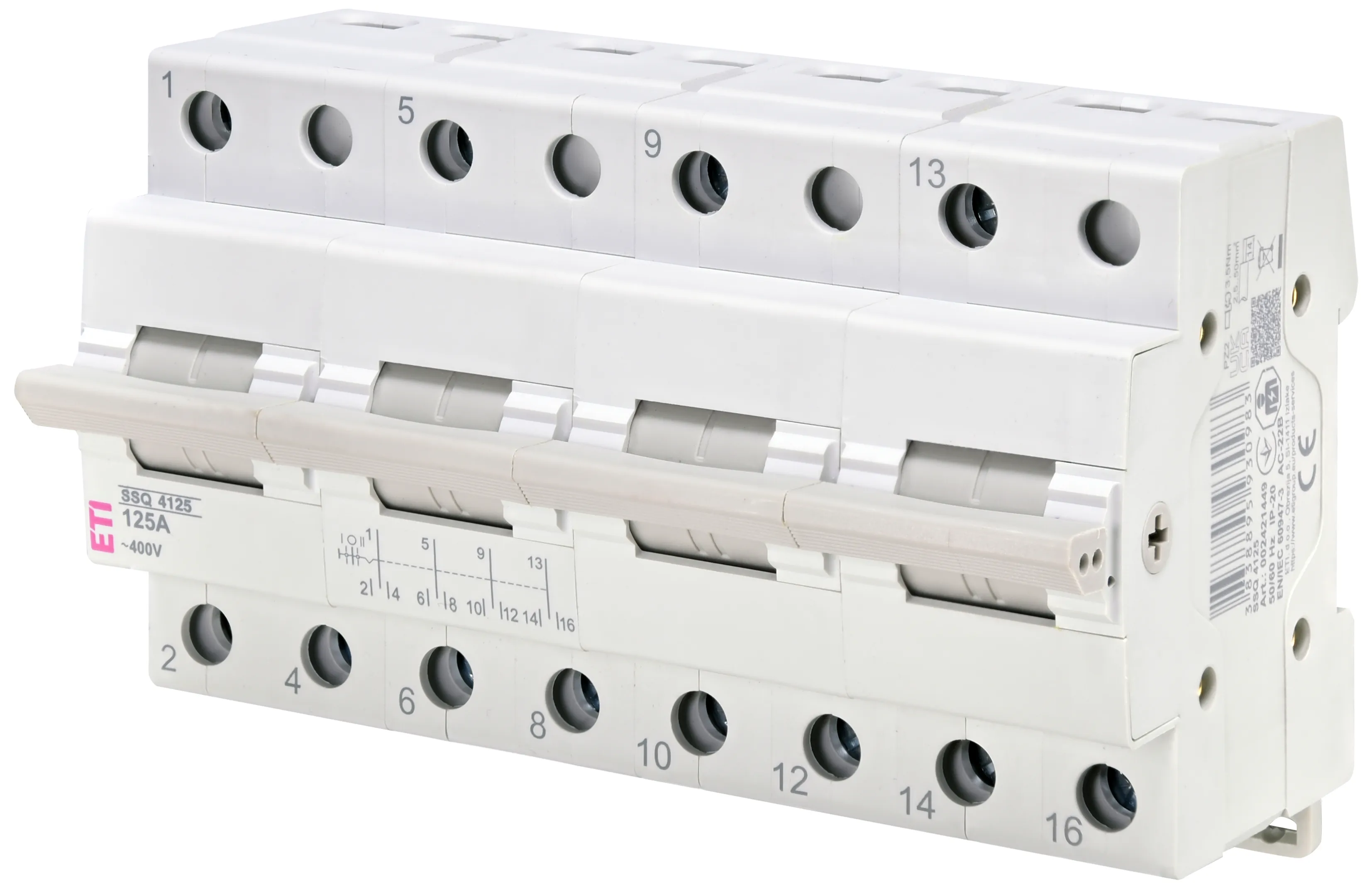

Center-off change-over switch SSQ 4125 002421449
Specifications
- ETI Code:
- 002421449
- Description:
- SSQ 4125
- Class name:
- Center-off change-over switch
- sort_order:
- 24
- id_level1:
- 475
- l1_sort_order:
- 1166
- l2_sort_order:
- 1178
- l3_sort_order:
- 1179
- l4_sort_order:
- 1180
- l5_sort_order:
- 1187
- l6_sort_order:
- 1188
- Catalogue subgroup:
- Change-over switch 1-0-2
- Function:
- Center-off change-over switch
- Rated current (A):
- 125
- Rated AC voltage (V):
- 400
- Number of poles:
- 4
- IP rating:
- IP20
- Max input cross-section (mm²):
- 50
- Rated Frequency (Hz):
- 50/60
- Standards:
- 60947-3
- Utilization category:
- AC-22B
Documents
Logistic Data
Product
- Net weight of the product
- 0.604 kg
- Customs tariff
- 85365080
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895930983
- Basic packaging weight
- 0.644 kg
Transport packaging
- Transport packaging quantity
- 14
- EAN code for a transport packaging
- 3838895930990
- Transport packaging weight
- 1.932 kg
- Pallet quantity
- 4200
ETIM Clasification
- Classification
- EC001545
- Class name
- Main switch for distribution board
- Degree of protection (IP), front side
- 20
- Max. rated operation voltage Ue AC
- 400
- Number of knife blade fuse holders
- 4
- Type of drive
- 50/60
- Switching function
- Two-way switch
- Number of contacts as change-over contact
- 4
- Number of poles
- 4
- Rated current
- 125A
- Rated voltage
- 400V
- Min. rated voltage
- 10V
- Rated switching capacity
- 4kA
- Short-circuit breaking capacity (Icw)
- 2,7kA
- Voltage type
- AC
- With signal lamp
- No
- Width in number of modular spacings
- 8
- Built-in depth
- 70mm
- Degree of protection (IP)
- IP20
SSQ 4125
