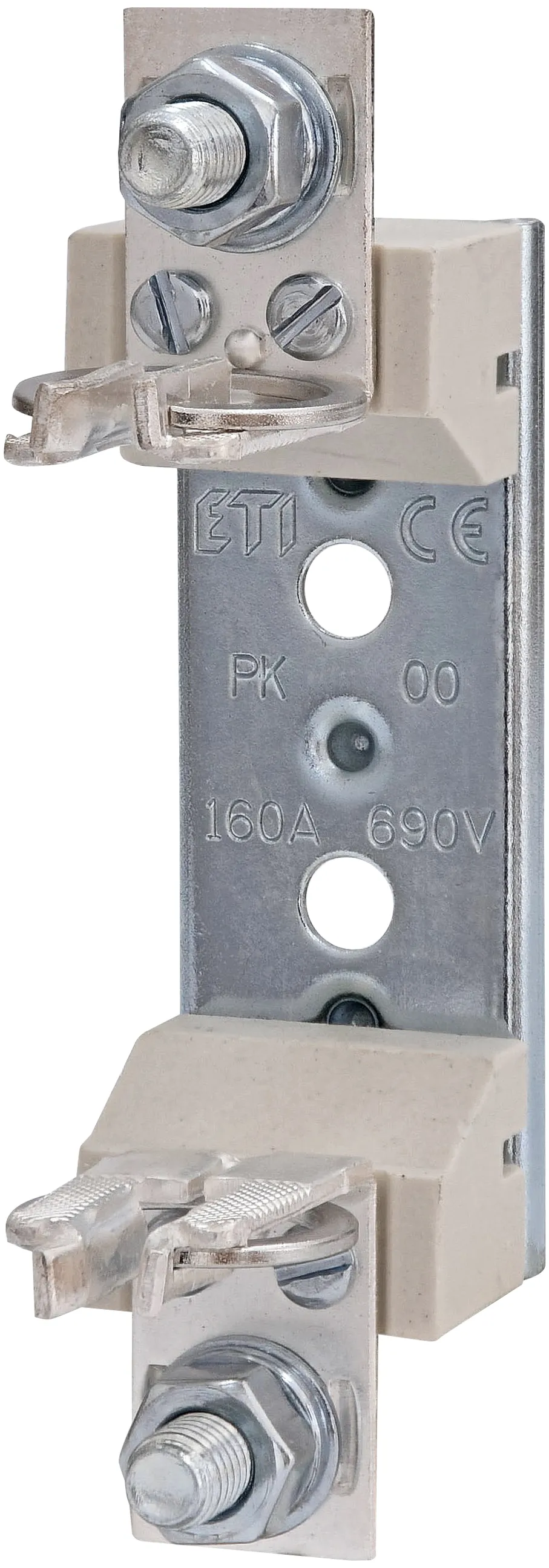

Fuse - base PK 00 M8-M8 1p S 004123000

Specifications

ETI Code:
004123000
Description:
PK 00 M8-M8 1p S
Class name:
Fuse - base
Product group:
LV-fuse base
Size:
NH00
Number of poles:
1
Rated current (A):
160
Rated AC voltage (V):
690
Breaking capacity AC (kA):
200
Rated Frequency (Hz):
40-60
Overvoltage Category:
III
Mounting:
Screw-on
Standards:
IEC 60269-2
Ambient temperature (°C):
-25... 55°C
Conventional free air thermal current with fuse links (A):
160A
Conventional free air thermal current with solid links (A):
200A
Max. permissable power dissipation per fuse link (W):
12
Rated operating mode:
uninterrupted
Pollution degree:
3

Documents

Product

EAN code for a single product
3838895906698
Net weight of the product
0.173  kg
Customs tariff
85389099

Basic packaging

Basic packaging quantity
3
EAN code for a basic packaging
3838895756057
Basic packaging weight
0.579  kg

Transport packaging

Transport packaging quantity
75
EAN code for a transport packaging
3838895756064
Transport packaging weight
14.93  kg
Pallet quantity
675
Classification
EC000067
Class name
Low Voltage HRC fuse base
Construction size
NH00
Number of poles
1
Rated current
160
ETIM Classification – Version 7.0
