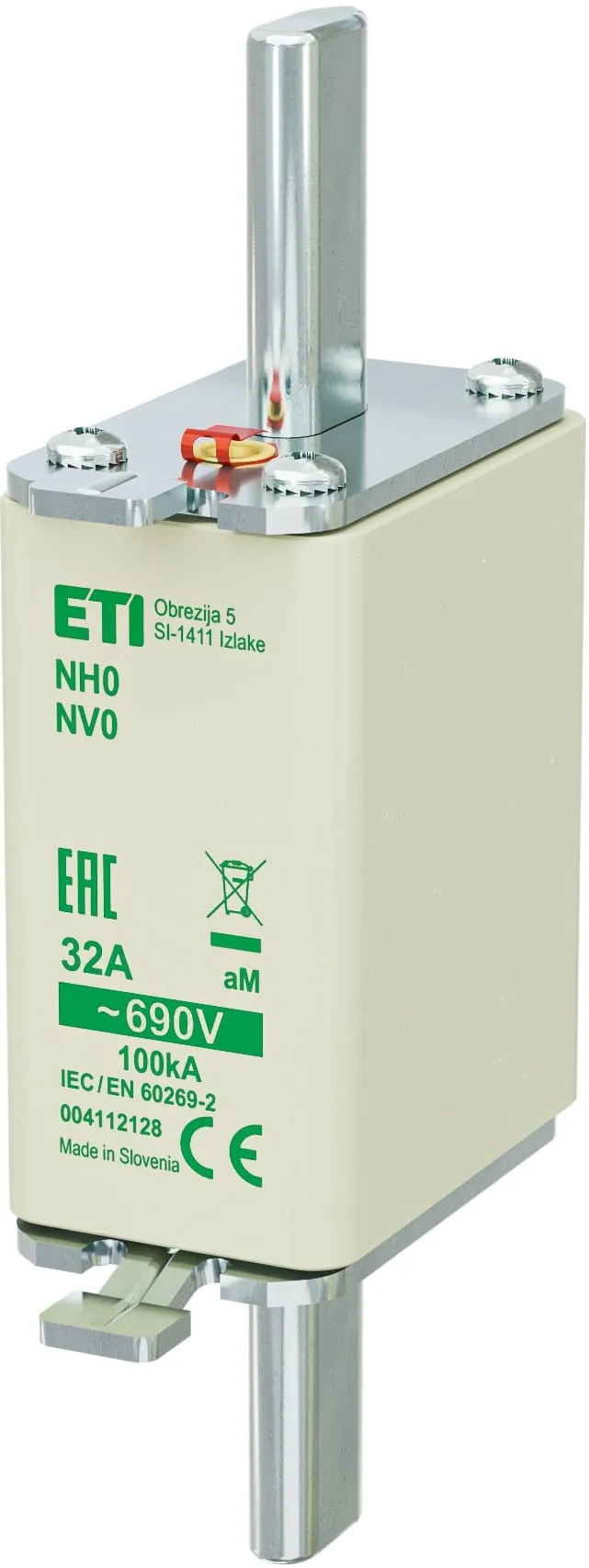

Fuse link NH0 aM 32A/690V 004112128
Specifications
- ETI Code:
- 004112128
- Description:
- NH0 aM 32A/690V
- Class name:
- Fuse link
- sort_order:
- 6980
- id_level1:
- 1531
- l1_sort_order:
- 3090
- l2_sort_order:
- 3091
- l3_sort_order:
- 3250
- l4_sort_order:
- 3254
- l5_sort_order:
- 3255
- l6_sort_order:
- 3256
- Type:
- NH
- Size:
- NH0
- Rated current (A):
- 32
- Rated AC voltage (V):
- 690
- Characteristics:
- aM
- Breaking capacity AC (kA):
- 100
- Application:
- For relays, contactors and motors protection in case of short-circuit
- Indicator:
- Top fuse status indicator
- Standards:
- VDE 0636-2011
Documents
Logistic Data
Product
- EAN code for a single product
- 5904722911512
- Net weight of the product
- 265 g
- Customs tariff
- 85361050
- logis_net_width
- 30 mm
- logis_net_height
- 125 mm
- logis_net_depth
- 56 mm
Basic packaging
- Basic packaging quantity
- 3
- EAN code for a basic packaging
- 3838895026280
- Basic packaging weight
- 0.68 kg
Transport packaging
- Transport packaging quantity
- 45
- EAN code for a transport packaging
- 3838895159452
- Transport packaging weight
- 10.9 kg
- Pallet quantity
- 2925
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Construction size
- NH0
- Rated current
- 32
- Rated voltage
- 690
- Voltage type
- AC
- Rated switching capacity
- 100
- Utilization category
- aM (switchgear protection)
- Type of fuse status indicator
- Top fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No
