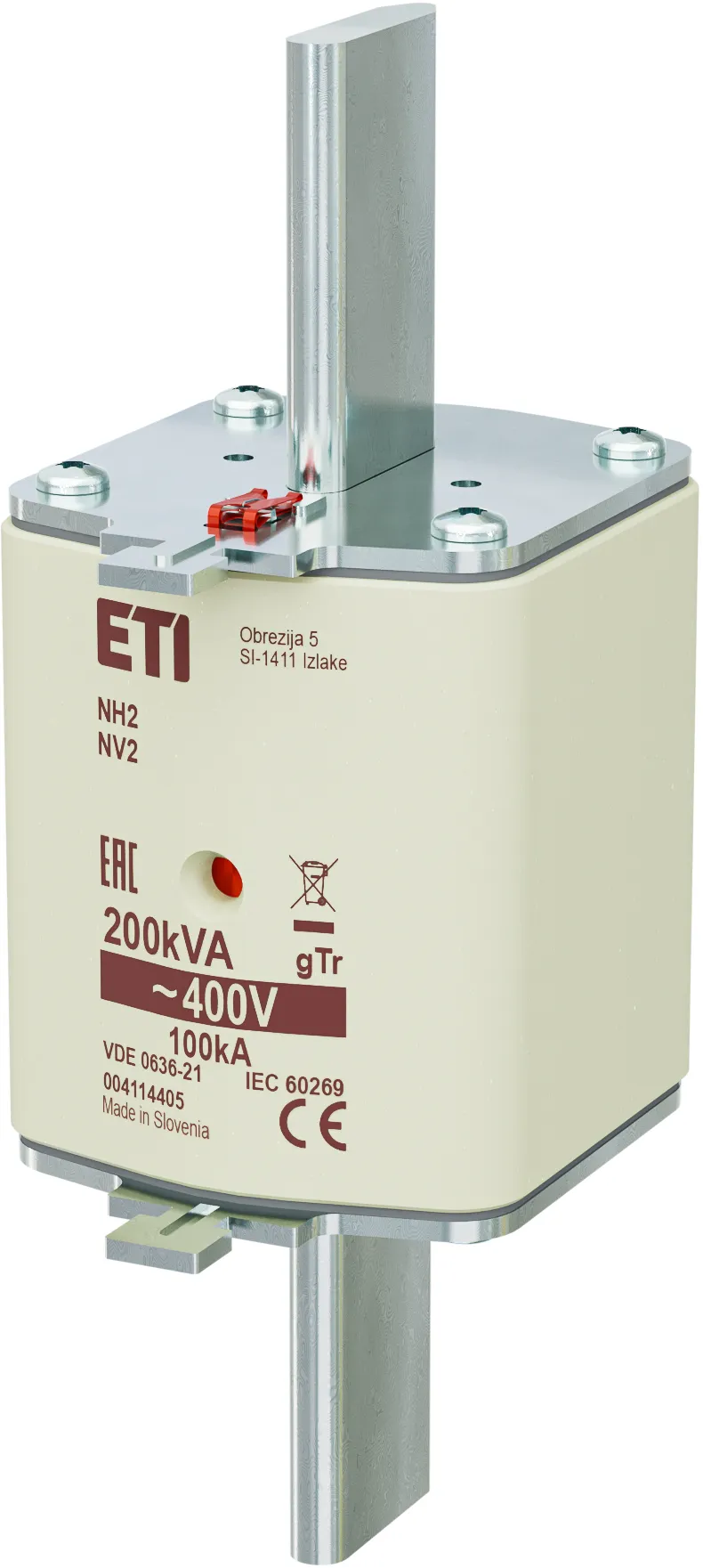

Fuse link NH2 gTr 289A/400V/200kVA 004114405
Specifications
- ETI Code:
- 004114405
- Description:
- NH2 gTr 289A/400V/200kVA
- Class name:
- Fuse link
- sort_order:
- 20
- id_level1:
- 1531
- l1_sort_order:
- 3090
- l2_sort_order:
- 3091
- l3_sort_order:
- 3285
- l4_sort_order:
- 3286
- l5_sort_order:
- 3287
- l6_sort_order:
- 3288
- efuse:
- 1
- Type:
- NH
- Size:
- NH2
- Transformer:
- 200kVA
- Rated AC voltage (V):
- 400
- Characteristics:
- gTr
- Breaking capacity AC (kA):
- 100
- Application:
- Protection of transformers
- Indicator:
- Combination fuse status indicator
- Power dissipation (W):
- 21
- Operating joule integral (A2s):
- 910.000
- Prearcing joule integral (A2s):
- 339.000
- Standards:
- VDE 0636-21
Documents
Logistic Data
Product
- EAN code for a single product
- 5904722986565
- Net weight of the product
- 580 g
- Customs tariff
- 85361090
- logis_net_width
- 54 mm
- logis_net_height
- 150 mm
- logis_net_depth
- 73 mm
Basic packaging
- Basic packaging quantity
- 3
- EAN code for a basic packaging
- 3838895401124
- Basic packaging weight
- 1.95 kg
Transport packaging
- Transport packaging quantity
- 15
- EAN code for a transport packaging
- 3838895401643
- Transport packaging weight
- 10.3 kg
- Pallet quantity
- 780
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Construction size
- NH2
- Rated current
- 289
- Rated voltage
- 400
- Voltage type
- AC
- Rated switching capacity
- 100
- Utilization category
- gTr (Transformer protection)
- Type of fuse status indicator
- Combination fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No
