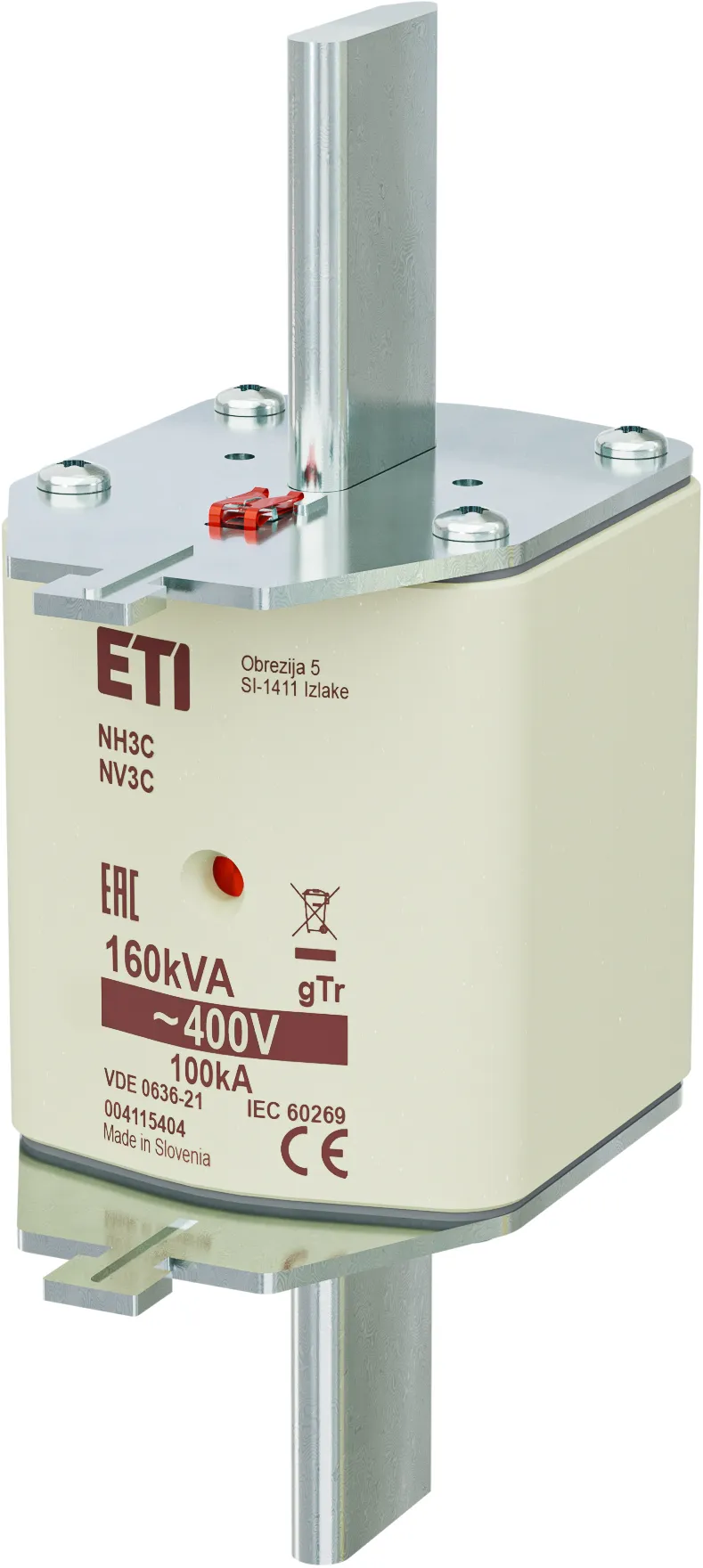

Fuse link NH3C gTr 231A/400V/160kVA 004115404
Specifications
- ETI Code:
- 004115404
- Description:
- NH3C gTr 231A/400V/160kVA
- Class name:
- Fuse link
- sort_order:
- 7067
- id_level1:
- 1531
- l1_sort_order:
- 3090
- l2_sort_order:
- 3091
- l3_sort_order:
- 3285
- l4_sort_order:
- 3289
- l5_sort_order:
- 3290
- l6_sort_order:
- 3291
- Type:
- NH
- Size:
- NH3C
- Transformer:
- 160kVA
- Rated AC voltage (V):
- 400
- Characteristics:
- gTr
- Breaking capacity AC (kA):
- 100
- Application:
- Protection of transformers
- Indicator:
- Combination fuse status indicator
- Power dissipation (W):
- 17
- Operating joule integral (A2s):
- 585.000
- Prearcing joule integral (A2s):
- 220.000
- Standards:
- VDE 0636-21
Documents
Logistic Data
Product
- EAN code for a single product
- 5904722988880
- Net weight of the product
- 585 g
- Customs tariff
- 85361090
- logis_net_width
- 54 mm
- logis_net_height
- 150 mm
- logis_net_depth
- 84 mm
Basic packaging
- Basic packaging quantity
- 3
- EAN code for a basic packaging
- 3838895612704
- Basic packaging weight
- 2.775 kg
Transport packaging
- Transport packaging quantity
- 12
- EAN code for a transport packaging
- 3838895401179
- Transport packaging weight
- 11.65 kg
- Pallet quantity
- 624
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Construction size
- NH3C
- Rated current
- 231
- Rated voltage
- 400
- Voltage type
- AC
- Rated switching capacity
- 100
- Utilization category
- gTr (Transformer protection)
- Type of fuse status indicator
- Combination fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No
