Fuse link NHU3L/150 gPV 500A/1000V DC 004110804
Specifications
- ETI Code:
- 004110804
- Description:
- NHU3L/150 gPV 500A/1000V DC
- Class name:
- Fuse link
- sort_order:
- 5
- id_level1:
- 2579
- l1_sort_order:
- 5505
- l2_sort_order:
- 6679
- l3_sort_order:
- 6680
- l4_sort_order:
- 6682
- l5_sort_order:
- 6685
- l6_sort_order:
- 6686
- Application:
- For protection on DC side of EV chargers
- Standards:
- IEC 60269-6
- Prearcing joule integral (A2s):
- 120.000
- Power dissipation (0,7x In) (W):
- 29
- Power dissipation (W):
- 72
- Operating joule integral (A2s):
- 450.000
- L/R (ms):
- 3
- Breaking capacity DC (kA):
- 30
- Indicator:
- Top fuse status indicator
- Type:
- NH-U
- Size:
- 3L
- Rated current (A):
- 500
- Rated DC voltage (V):
- 1000
- Characteristics:
- gPV
Documents
Logistic Data
Product
- Net weight of the product
- 1200 g
- Customs tariff
- 85361090
- logis_net_width
- 64 mm
- logis_net_height
- 180 mm
- logis_net_depth
- 70 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838400101020
- Basic packaging weight
- 1.36 kg
Transport packaging
- Transport packaging quantity
- 9
- EAN code for a transport packaging
- 3838400101037
- Transport packaging weight
- 12.6 kg
- Pallet quantity
- 468
Intermediate packaging
- qty
- 1 pcs
- Weight
- 1.36 kg
- volume
- 1.52 dm3
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Application
- For protection on DC side of EV chargers
- Rated voltage DC
- 1000
- Construction size
- Other
- Rated current
- 500
- Rated voltage
- 1000
- Voltage type
- DC
- Rated switching capacity
- 30
- Utilization category
- Other
- Type of fuse status indicator
- Top fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No

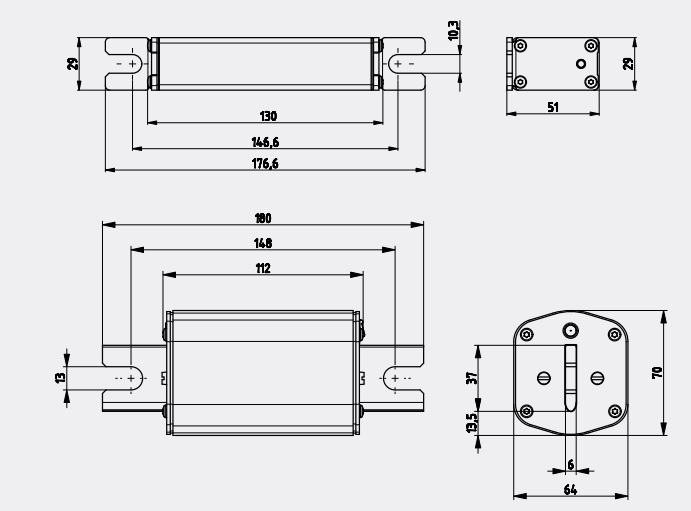

Images & Diagrams
