Fuse link NHU01XL/150 aR 63A/1000V DC 004110810
Specifications
- ETI Code:
- 004110810
- Description:
- NHU01XL/150 aR 63A/1000V DC
- Class name:
- Fuse link
- sort_order:
- 2
- id_level1:
- 2579
- l1_sort_order:
- 5505
- l2_sort_order:
- 6679
- l3_sort_order:
- 6680
- l4_sort_order:
- 6681
- l5_sort_order:
- 6683
- l6_sort_order:
- 6684
- Application:
- For protection on DC side of EV chargers
- Standards:
- IEC 60269-4
- Prearcing joule integral (A2s):
- 500
- Power dissipation (0,7x In) (W):
- 9
- Power dissipation (W):
- 19
- Operating joule integral (A2s):
- 3.000
- L/R (ms):
- 3
- Breaking capacity DC (kA):
- 30
- Indicator:
- Top fuse status indicator
- Type:
- NH-U
- Size:
- 01XL
- Rated current (A):
- 63
- Rated DC voltage (V):
- 1000
- Characteristics:
- aR
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400101099
- Net weight of the product
- 450 g
- Customs tariff
- 85361050
- logis_net_width
- 29 mm
- logis_net_height
- 177 mm
- logis_net_depth
- 51 mm
Basic packaging
- Basic packaging quantity
- 3
- EAN code for a basic packaging
- 3838400101105
- Basic packaging weight
- 1.24 kg
Transport packaging
- Transport packaging quantity
- 30
- EAN code for a transport packaging
- 3838400101112
- Transport packaging weight
- 12.75 kg
- Pallet quantity
- 1560
Intermediate packaging
- qty
- 1 pcs
- Weight
- 0.4 kg
- volume
- 0.38 dm3
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Rated voltage DC
- 1000
- Application
- For protection on DC side of EV chargers
- Construction size
- Other
- Rated current
- 63
- Rated voltage
- 1000
- Voltage type
- DC
- Rated switching capacity
- 30
- Utilization category
- Other
- Type of fuse status indicator
- Top fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No

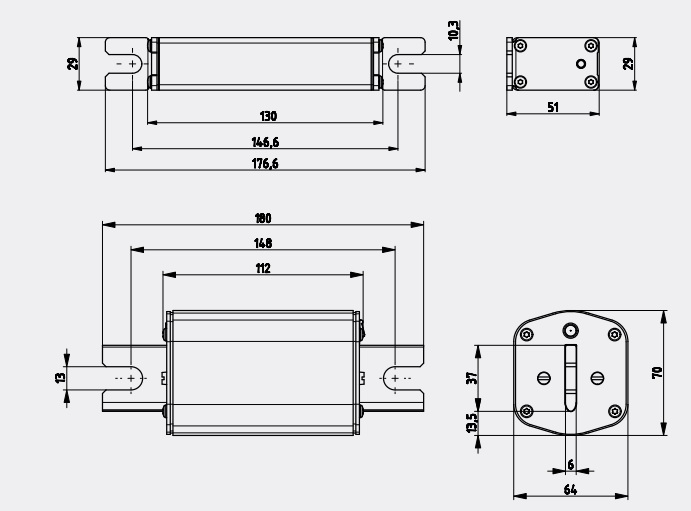

Images & Diagrams
