Fuse link NHU1/110/M aR 250A/1000V DC 004110866
Specifications
- ETI Code:
- 004110866
- Description:
- NHU1/110/M aR 250A/1000V DC
- Class name:
- Fuse link
- Application:
- For protection on DC side of EV chargers
- Standards:
- IEC 60269-4
- Prearcing joule integral (A2s):
- 9000
- Power dissipation (0,7x In) (W):
- 21W
- Power dissipation (W):
- 53.7W
- Operating joule integral (A2s):
- 80000
- L/R (ms):
- 2ms
- Breaking capacity DC (kA):
- 30kA
- Indicator:
- Centre fuse status indicator
- Type:
- NH-U

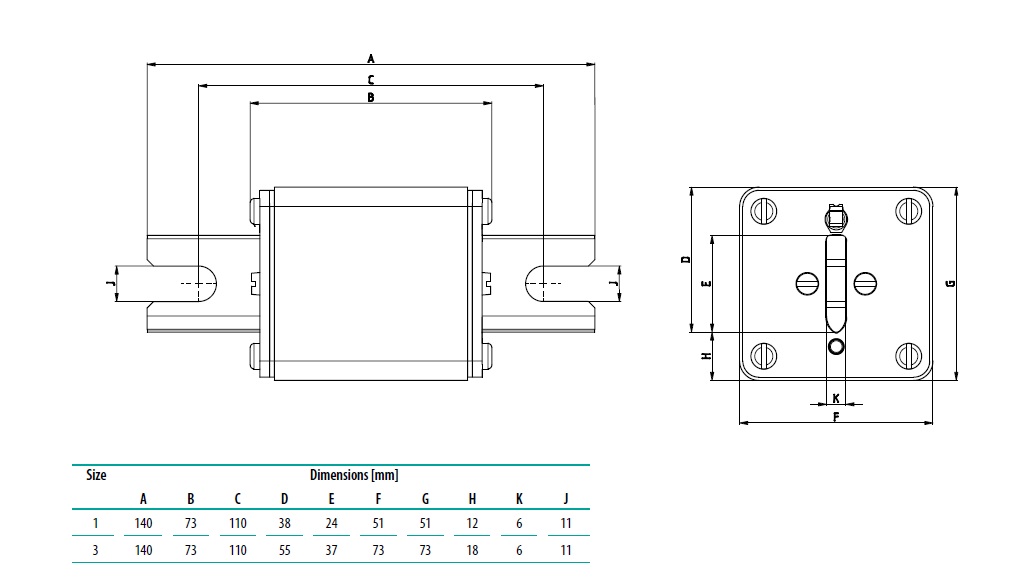

- Size:
- NH1/110
- Rated current (A):
- 250A
- Rated DC voltage (V):
- 1000V
- Characteristics:
- aR
Documents
Logistic Data
Product
- Net weight of the product
- 620 g
- Customs tariff
- 85361090
- logis_net_width
- 56 mm
- logis_net_height
- 139 mm
- logis_net_depth
- 51 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838400102614
- Basic packaging weight
- 0.6 kg
Transport packaging
- Transport packaging quantity
- 26
- EAN code for a transport packaging
- 3838400102621
- Transport packaging weight
- 15.95 kg
- Pallet quantity
- 1352
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Construction size
- Other
- Rated current
- 250
- Rated voltage
- 1000
- Voltage type
- DC
- Rated switching capacity
- 30
- Utilization category
- aR (accompanied semiconductor protection)
- Type of fuse status indicator
- Centre fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No
NHU1/110/M aR 250A/1000V DC
