Fuse link NHU3/110/M aR 630A/1000V DC 004110891
Specifications
- ETI Code:
- 004110891
- Description:
- NHU3/110/M aR 630A/1000V DC
- Class name:
- Fuse link
- Application:
- For protection on DC side of EV chargers
- Standards:
- IEC 60269-4
- Prearcing joule integral (A2s):
- 89000
- Power dissipation (0,7x In) (W):
- 48.5W
- Power dissipation (W):
- 153W
- Operating joule integral (A2s):
- 420000
- L/R (ms):
- 2ms
- Breaking capacity DC (kA):
- 30kA
- Indicator:
- Centre fuse status indicator
- Type:
- NH-U

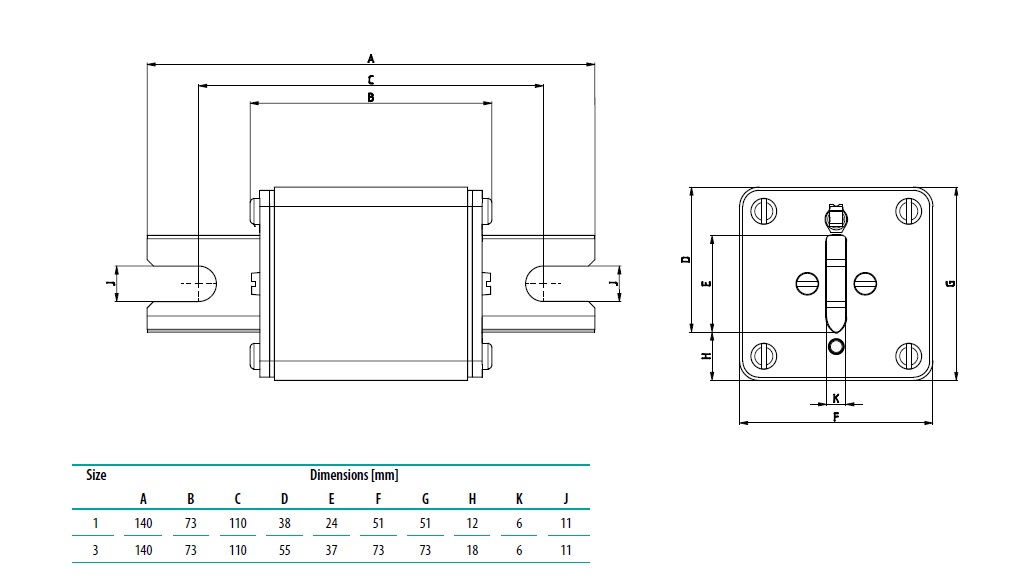

- Size:
- NH3/110
- Rated current (A):
- 630A
- Rated DC voltage (V):
- 1000V
- Characteristics:
- aR
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400111531
- Net weight of the product
- 1250 g
- Customs tariff
- 85361090
- logis_net_width
- 73 mm
- logis_net_height
- 139 mm
- logis_net_depth
- 73 mm
Basic packaging
- Basic packaging quantity
- 3
- EAN code for a basic packaging
- 3838400103208
- Basic packaging weight
- 4.15 kg
Transport packaging
- Transport packaging quantity
- 15
- EAN code for a transport packaging
- 3838400103215
- Transport packaging weight
- 21.3 kg
- Pallet quantity
- 360
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Construction size
- Other
- Rated current
- 630
- Rated voltage
- 1000
- Voltage type
- DC
- Rated switching capacity
- 30
- Utilization category
- aR (accompanied semiconductor protection)
- Type of fuse status indicator
- Centre fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No
NHU3/110/M aR 630A/1000V DC
