Fuse link NHS3 gPV 315A/1000V DC 004110294
Specifications
- ETI Code:
- 004110294
- Description:
- NHS3 gPV 315A/1000V DC
- Class name:
- Fuse link
- Type:
- NH-S
- Size:
- NH3
- Rated current (A):
- 315A
- Rated DC voltage (V):
- 1000V
- Characteristics:
- gPV
- L/R (ms):
- 1ms
- Breaking capacity DC (kA):
- 30kA
- Application:
- Fuse link for DC application
- Indicator:
- Top fuse status indicator
- Power dissipation (W):
- 54W
- Power dissipation (0,7x In) (W):
- 24W
- Operating joule integral (A2s):
- 80000
- Prearcing joule integral (A2s):
- 40000
- Standards:
- IEC 60269-6
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895799962
- Net weight of the product
- 1250 g
- Customs tariff
- 85361090

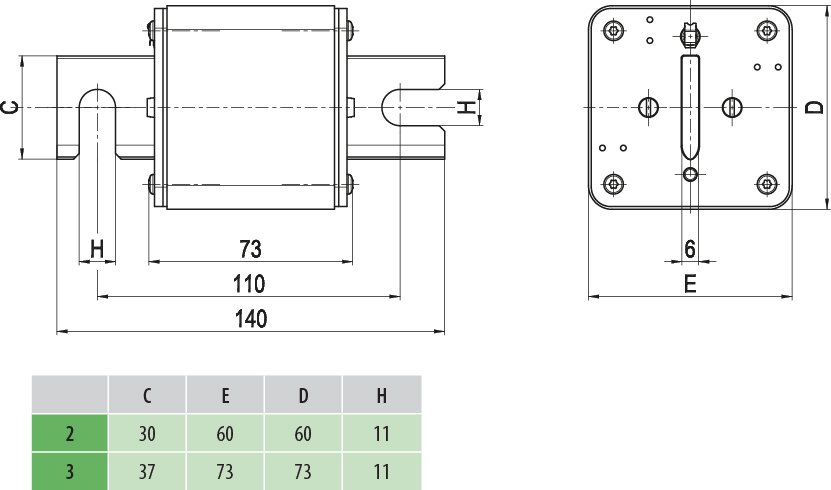

- logis_net_width
- 73 mm
- logis_net_height
- 139 mm
- logis_net_depth
- 73 mm
Basic packaging
- Basic packaging quantity
- 3
- EAN code for a basic packaging
- 3838895799979
- Basic packaging weight
- 2.7 kg
Transport packaging
- Transport packaging quantity
- 15
- EAN code for a transport packaging
- 3838895799986
- Transport packaging weight
- 14 kg
- Pallet quantity
- 360
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Construction size
- NH3
- Rated current
- 315
- Rated voltage
- 1000
- Voltage type
- DC
- Rated switching capacity
- 30
- Utilization category
- gPV (photovoltaic protection)
- Type of fuse status indicator
- Top fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No
NHS3 gPV 315A/1000V DC
