Auxiliary switch PS EFI - MD 002069001
Specifications
- ETI Code:
- 002069001
- Description:
- PS EFI - MD
- Class name:
- Auxiliary switch
- Function:
- Auxiliary switch
- For use with:
- EFI (16-80 A)
- Rated current (A):
- 6
- Rated voltage (V):
- 230
- Rated Frequency (Hz):
- 50/60
- Terminals (mm²):
- 1-2.5
- Standards:
- EN 62019
- Contacts:
- 2
Documents
Logistic Data
Product
- EAN code for a single product
- Net weight of the product
- 38 g
- Customs tariff
- 85365080
- logis_net_width
- 9 mm
- logis_net_height
- 88 mm
- logis_net_depth
- 63 mm
Level 1 Packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895177388
- Basic packaging weight
- 0.045 kg
Level 2 Packaging
- Transport packaging quantity
- 12
- EAN code for a transport packaging
- 3838895177395
- Transport packaging weight
- 0.6 kg
- Pallet quantity
- 624
ETIM Clasification
- Classification
- EC001286
- Class name
- Auxiliary device for distribution board devices
- Connectable conductor cross section multi-wired
- 1-2.5
- Type of drive
- 50/60
- Rated current
- 6
- Device fitting
- Earth leakage switch
- Additional equipment
- Auxiliary switch
- Installed at the factory
- No
- Assembly width (in number of modular spacings)
- 0.5
- Number of contacts as normally open contact
- 1
- Number of contacts as normally closed contact
- 1
- Rated switch current
- 6A
- Rated voltage
- 230V
- Voltage type for actuating
- AC
- Suitable for max. number of poles main contact unit (total)
- 4
- Suitable for max. current main contact unit
- 80A

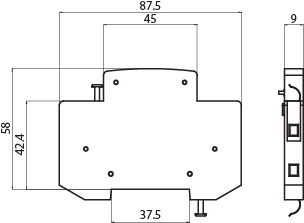

Images & Diagrams
