Auxiliary switch PS EFI 100/125 - 2xNO 002069008
Specifications
- ETI Code:
- 002069008
- Description:
- PS EFI 100/125 - 2xNO
- Class name:
- Auxiliary switch
- id_level1:
- 1
- l1_sort_order:
- 1
- l2_sort_order:
- 600
- l3_sort_order:
- 740
- l4_sort_order:
- 741
- l5_sort_order:
- 742
- l6_sort_order:
- 743
- Number of NO contacts:
- 2
- Function:
- Auxiliary switch
- For use with:
- RCCB 100-125A
- Rated current (A):
- 6
- Rated voltage (V):
- 230 V ac/dc
- Max. inrush current (A):
- 6
- Rated Frequency (Hz):
- 50/60
- Rated cross section:
- 1-2,5
- Standards:
- IEC/EN 60947-5-1
Documents
Logistic Data
Product
- Net weight of the product
- 0.031 kg
- Customs tariff
- 39269097
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895969587
- Basic packaging weight
- 0.039 kg
Transport packaging
- Transport packaging quantity
- 12
- EAN code for a transport packaging
- 3838895969594
- Transport packaging weight
- 0.538 kg
- Pallet quantity
- 2880
ETIM Clasification
- Classification
- EC001286
- Class name
- Auxiliary device for distribution board devices
- Rated current
- 6
- Type of drive
- 50/60
- Connectable conductor cross section multi-wired
- 1-2,5
- Device fitting
- Earth leakage switch
- Additional equipment
- Auxiliary switch
- Installed at the factory
- No
- Assembly width (in number of modular spacings)
- 0,5
- Number of contacts as normally open contact
- 2
- Rated switch current
- 6A
- Rated voltage
- 230 V ac/dcV
- Voltage type for actuating
- AC/DC
- With auto test for earth leakage function
- No
- Suitable for max. number of poles main contact unit (total)
- 4
- Suitable for max. current main contact unit
- 125A

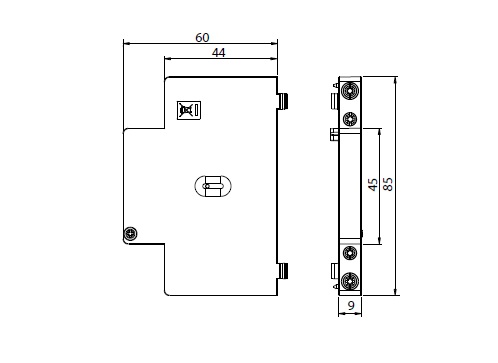

Images & Diagrams
