Fuse link CH10x38SU FCF 8A/450V DC 002626206
Specifications
- ETI Code:
- 002626206
- Description:
- CH10x38SU FCF 8A/450V DC
- Class name:
- Fuse link
- sort_order:
- 3
- id_level1:
- 2781
- l1_sort_order:
- 6047
- l2_sort_order:
- 6481
- l3_sort_order:
- 6482
- l4_sort_order:
- 6483
- l5_sort_order:
- 6484
- l6_sort_order:
- 6485
- efuse:
- 1
- Type:
- CH SU

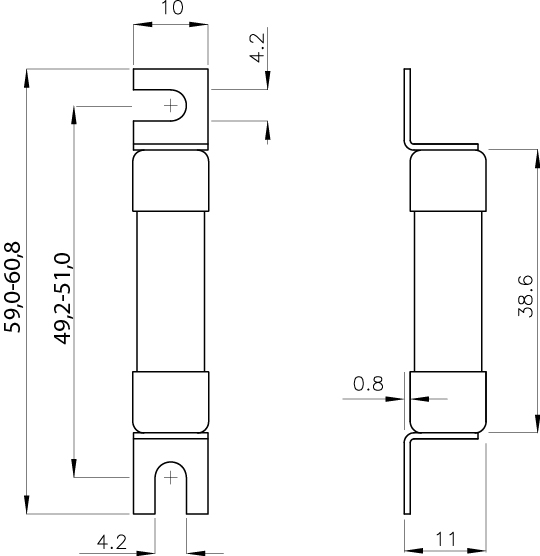

- Size:
- 10x38
- Rated DC voltage (V):
- 450
- Breaking capacity DC (kA):
- 2
- Operating joule integral (A2s):
- 21
- Prearcing joule integral (A2s):
- 9
- Application:
- Fuel cell protection
- Power dissipation (W):
- 1,3
- Power dissipation (0,7x In) (W):
- 0,6
- Standards:
- ISO 8820-7
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400064660
- Net weight of the product
- 10.2 g
- Customs tariff
- 85361010
- logis_net_width
- 10 mm
- logis_net_height
- 60 mm
- logis_net_depth
- 11 mm
Basic packaging
- Basic packaging quantity
- 10
- EAN code for a basic packaging
- 3838895735885
- Basic packaging weight
- 0.106 kg
Transport packaging
- Transport packaging quantity
- 380
- EAN code for a transport packaging
- 3838895735892
- Transport packaging weight
- 4.12 kg
- Pallet quantity
- 63840
