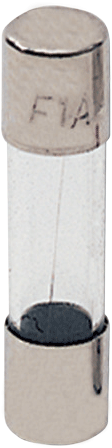

Fuse link Mini fuse 5x20 FF 800mA/250V 006710117
Specifications
- ETI Code:
- 006710117
- Description:
- Mini fuse 5x20 FF 800mA/250V
- Class name:
- Fuse link
- Rated current (A):
- 0.8A
- Type:
- CH
- Size:
- 5x20
- Characteristics:
- FF
- Rated AC voltage (V):
- 250V
- Rated DC voltage (V):
- 250V
- Breaking capacity AC (kA):
- 1.5kA
- Operating joule integral (A2s):
- 0.26
- Application:
- Electronic devices protection
- Power dissipation (W):
- 0.48W
- Standards:
- IEC 60127-1,IEC 60127-2
Documents
Logistic Data
Product
- Net weight of the product
- 5 g
- Customs tariff
- 85361010
- logis_net_width
- 7 mm
- logis_net_height
- 20 mm
- logis_net_depth
- 7 mm
Transport packaging
- Transport packaging quantity
- 10
- EAN code for a transport packaging
- 8024873023104
- Transport packaging weight
- 0.05 kg
- Pallet quantity
- 160000
ETIM Clasification
- Classification
- EC000035
- Class name
- Miniature fuse
- Release characteristic
- Super fast (FF)
- Model
- Ceramic fuse
- Rated current
- 0,8A
- Rated voltage
- 250V
