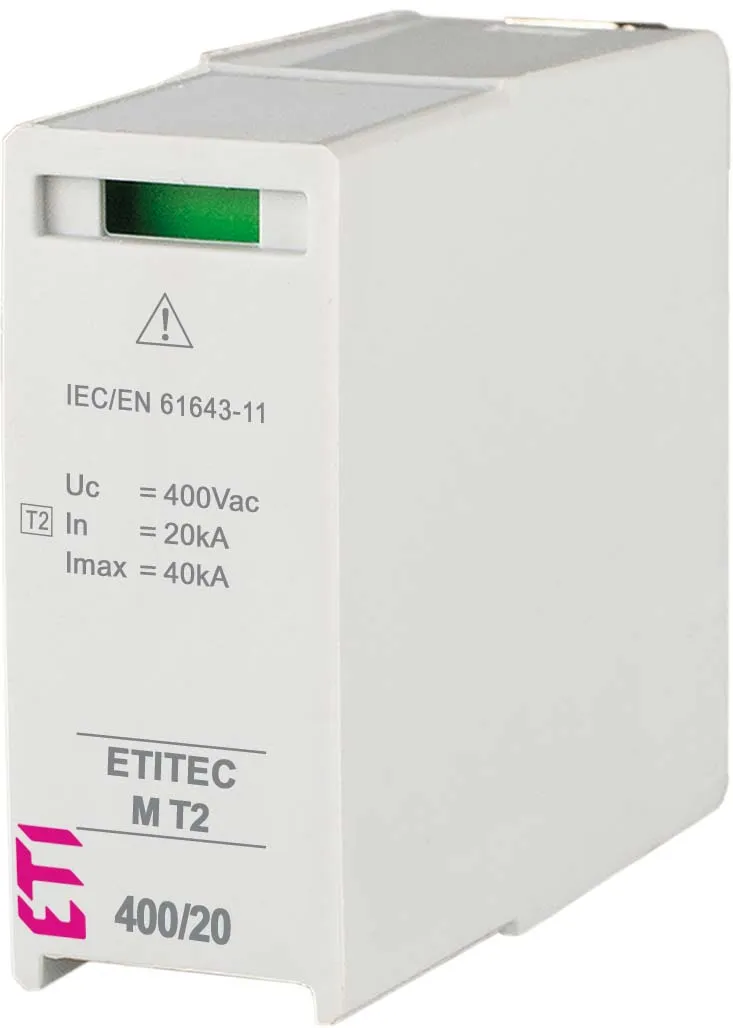

Surge arrester MOD.ETITEC M T2 400/20 PE/N 002440822
Specifications
- ETI Code:
- 002440822
- Description:
- MOD.ETITEC M T2 400/20 PE/N
- Class name:
- Surge arrester
- sort_order:
- 3
- id_level1:
- 2579
- l1_sort_order:
- 5505
- l2_sort_order:
- 5947
- l3_sort_order:
- 7042
- l4_sort_order:
- 7043
- l5_sort_order:
- 7044
- l6_sort_order:
- 7045
- Usage (IEC/VDE):
- II / C
- Current type:
- AC
- Function:
- SPD Module
- Type:
- T2
- For use with:
- ETITEC M T2 AC
- Size:
- 1 module
- IP rating:
- IP20
- Mounting:
- On basic element
- Catalogue Group:
- ETITEC M AC
- Leakage current:
- YES
- Applied technology:
- MOV
- Max. discharge current Imax, 8/20 (kA):
- 40
- In 8/20 (kA):
- 20
- Installation:
- PV inverters protection on the AC side
Documents
Logistic Data
Product
- Net weight of the product
- 0.092 kg
- Customs tariff
- 85363090
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895985174
- Basic packaging weight
- 0.102 kg
Transport packaging
- Transport packaging quantity
- 24
- EAN code for a transport packaging
- 3838895985181
- Transport packaging weight
- 2.701 kg
- Pallet quantity
- 5328
ETIM Clasification
- Classification
- EC000941
- Class name
- Surge protection device for power supply systems
- Number of knife blade fuse holders
- MOV
- Leakage current type
- AC
- Degree of protection (IP), front side
- 20
- System configuration DC
- No
- System configuration IT
- Yes
- System configuration TN
- No
- System configuration TN-C
- No
- System configuration TN-C-S
- No
- System configuration TN-S
- No
- System configuration TT
- No
- System configuration other
- No
- Nominal discharge surge current (8/20)
- 20
- Short-circuit breaking capacity (Isccr)
- 25
- Max. continuous voltage AC
- 400
- Max. discharge surge current (8/20)
- 40
- Mounting method
- On basic element
- Integrated backup fuse
- No
- Signalling at the device
- Optical
- Category type 2
- Yes
- Degree of protection (IP)
- IP20
