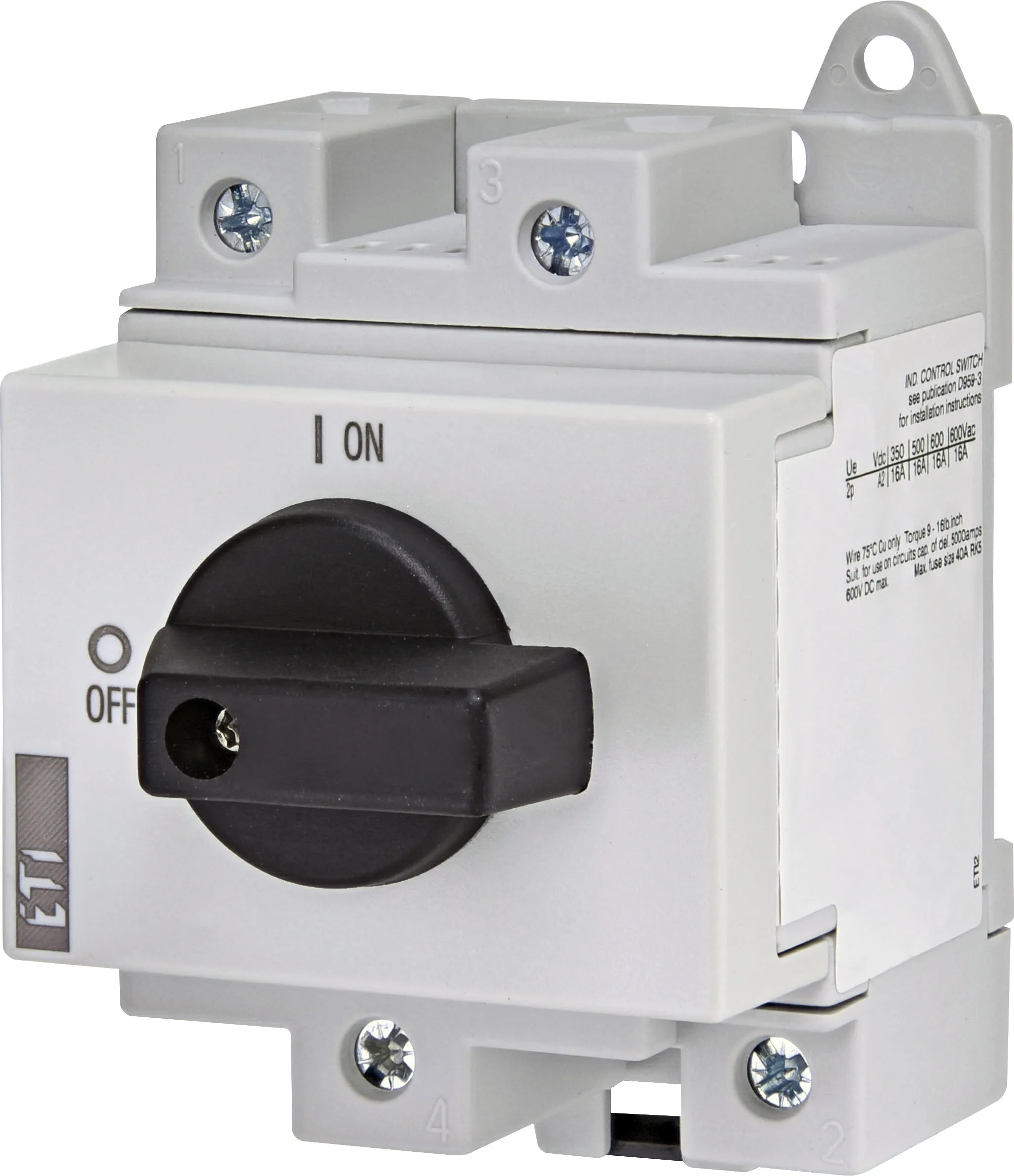

Switch disconnector PV LS16 SMA A2 004660060
Specifications
- ETI Code:
- 004660060
- Description:
- LS16 SMA A2
- Class name:
- Switch disconnector PV
- sort_order:
- 10049
- id_level1:
- 2579
- l1_sort_order:
- 5505
- l2_sort_order:
- 6001
- l3_sort_order:
- 6002
- l4_sort_order:
- 6003
- l5_sort_order:
- 6004
- l6_sort_order:
- 6005
- Function:
- PV Switch disconnectors, 0-1
- Number of poles:
- 2
- Max. rated operational voltage Ur (V):
- 1500
- Thermal current Ith (A):
- 16
- Rated operational current Ie DC-21 B at 1000V DC (A):
- 16
- Mounting:
- DIN-rail mounted
Documents
Logistic Data
Product
- Net weight of the product
- 0.354 kg
- Customs tariff
- 85365080
- logis_net_width
- 60 mm
- logis_net_height
- 96 mm
- logis_net_depth
- 83 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895567592
- Basic packaging weight
- 0.213 kg
Transport packaging
- Transport packaging quantity
- 40
- EAN code for a transport packaging
- 3838895712855
- Transport packaging weight
- 9.32 kg
- Pallet quantity
- 2560
ETIM Clasification
- Classification
- EC000216
- Class name
- Switch disconnector
- Number of knife blade fuse holders
- 2
- Mounting method
- DIN-rail mounted
- Version as main switch
- Yes
- Version as maintenance-/service switch
- Yes
- Version as safety switch
- Yes
- Version as emergency stop installation
- No
- Version as reversing switch
- No
- Max. rated operation voltage Ue AC
- 440V
- Rated operating voltage
- 300…1000V
- Rated permanent current Iu
- 16A
- Rated permanent current at AC-21, 400 V
- 16A
- Conditioned rated short-circuit current Iq
- 5kA
- Number of poles
- 2
- Motor drive optional
- No
- Motor drive integrated
- No
- Voltage release optional
- No
- Device construction
- Built-in device fixed built-in technique
- Suitable for floor mounting
- No
- Suitable for front mounting 4-hole
- No
- Suitable for front mounting centre
- No
- Suitable for distribution board installation
- Yes
- Suitable for intermediate mounting
- No
- Colour control element
- Black
- Type of control element
- Turn button
- Interlockable
- No
- Type of electrical connection of main circuit
- Frame clamp
- Degree of protection (IP), front side
- IP20
