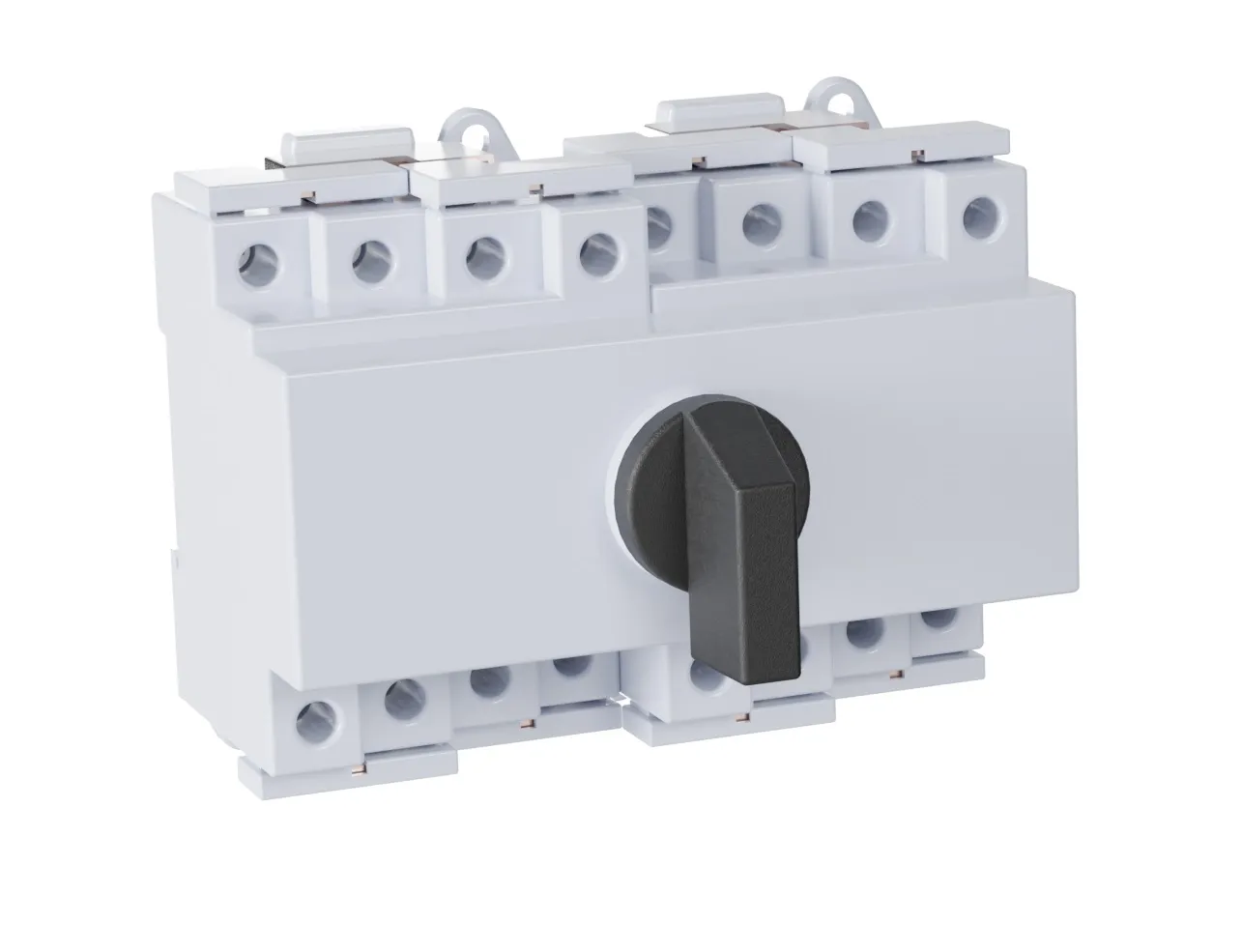

Switch disconnector PV LS32 SMA A4+2 004660066
Specifications
- ETI Code:
- 004660066
- Description:
- LS32 SMA A4+2
- Class name:
- Switch disconnector PV
- sort_order:
- 10055
- id_level1:
- 2579
- l1_sort_order:
- 5505
- l2_sort_order:
- 6001
- l3_sort_order:
- 6002
- l4_sort_order:
- 6006
- l5_sort_order:
- 6007
- l6_sort_order:
- 6008
- Function:
- PV Switch disconnectors, 0-1
- Number of poles:
- 4+4
- Max. rated operational voltage Ur (V):
- 1500
- Thermal current Ith (A):
- 32
- Rated operational current Ie DC-21 B at 1000V DC (A):
- 58
- Mounting:
- DIN-rail mounted
Documents
Logistic Data
Product
- Net weight of the product
- 0.43 kg
- Customs tariff
- 85365080
- logis_net_width
- 120 mm
- logis_net_height
- 96 mm
- logis_net_depth
- 102 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895627364
- Basic packaging weight
- 0.53 kg
Transport packaging
- Transport packaging quantity
- 20
- EAN code for a transport packaging
- 3838895712916
- Transport packaging weight
- 11.92 kg
- Pallet quantity
- 600
ETIM Clasification
- Classification
- EC000216
- Class name
- Switch disconnector
- Number of knife blade fuse holders
- 4+4
- Mounting method
- DIN-rail mounted
- Version as main switch
- Yes
- Version as maintenance-/service switch
- Yes
- Version as safety switch
- Yes
- Version as emergency stop installation
- No
- Version as reversing switch
- No
- Max. rated operation voltage Ue AC
- 440V
- Rated operating voltage
- 300…1000V
- Rated permanent current Iu
- 58A
- Rated permanent current at AC-21, 400 V
- 32A
- Conditioned rated short-circuit current Iq
- 5kA
- Number of poles
- 6
- Motor drive optional
- No
- Motor drive integrated
- No
- Voltage release optional
- No
- Device construction
- Built-in device fixed built-in technique
- Suitable for floor mounting
- No
- Suitable for front mounting 4-hole
- No
- Suitable for front mounting centre
- No
- Suitable for distribution board installation
- Yes
- Suitable for intermediate mounting
- No
- Colour control element
- Black
- Type of control element
- Turn button
- Interlockable
- No
- Type of electrical connection of main circuit
- Frame clamp
- Degree of protection (IP), front side
- IP20
