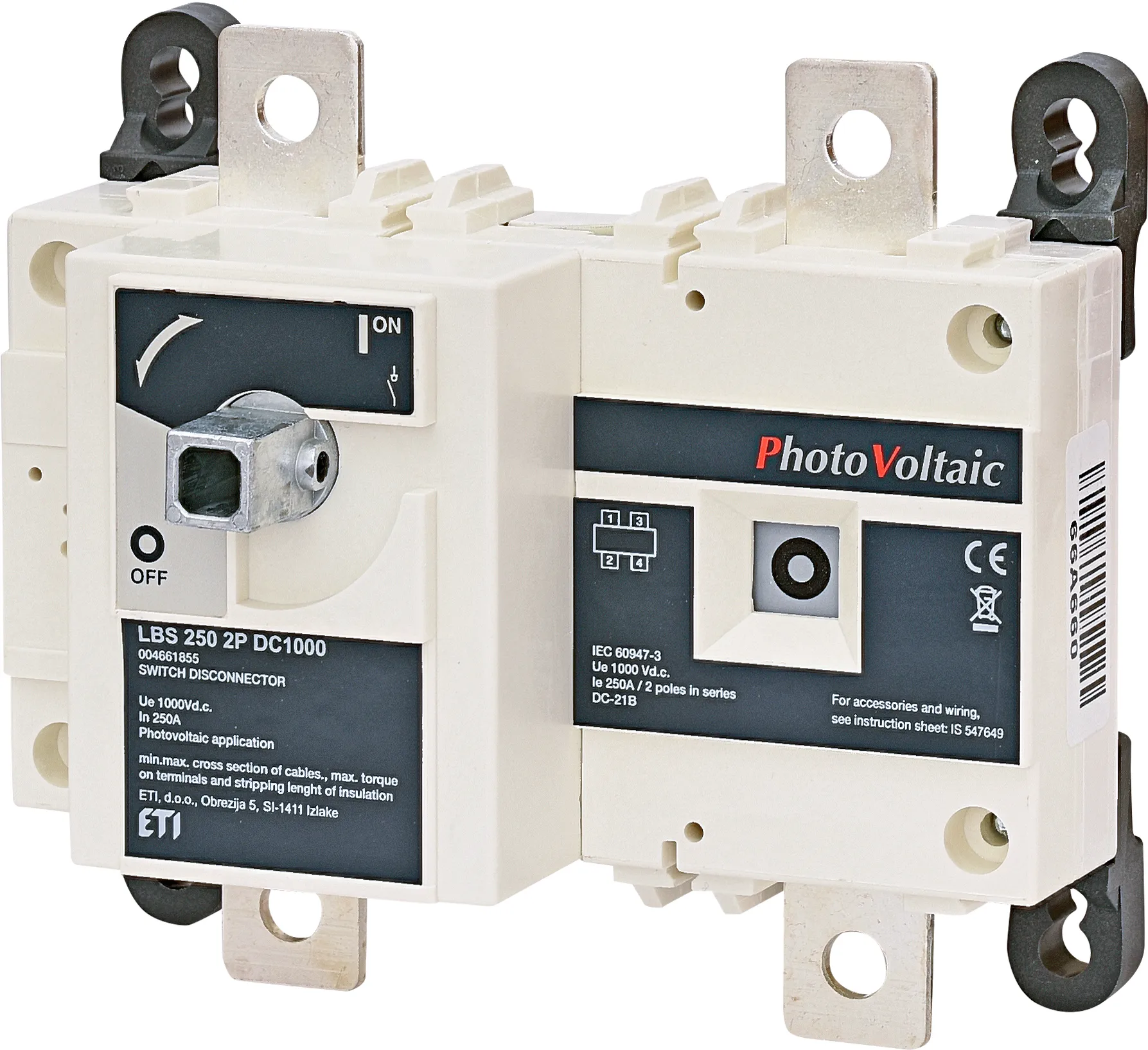

Switch disconnector PV LBS 250 2P DC1000 004661855
Specifications
- ETI Code:
- 004661855
- Description:
- LBS 250 2P DC1000
- Class name:
- Switch disconnector PV
- sort_order:
- 3
- id_level1:
- 2579
- l1_sort_order:
- 5505
- l2_sort_order:
- 6001
- l3_sort_order:
- 6012
- l4_sort_order:
- 6013
- l5_sort_order:
- 6014
- l6_sort_order:
- 6015
- Function:
- PV Switch disconnectors, 0-1
- Number of poles:
- 2
- Max. rated operational voltage Ur (V):
- 1000
- Thermal current Ith (A):
- 250
- Rated operational current Ie DC-21 B at 1000V DC (A):
- 250
- Mounting:
- Mounting plate
Documents
Logistic Data
Product
- Net weight of the product
- 1.85 kg
- Customs tariff
- 85365080
- logis_net_width
- 180 mm
- logis_net_height
- 160 mm
- logis_net_depth
- 95 mm
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 3838895823742
- Transport packaging weight
- 1.85 kg
- Pallet quantity
- 200
ETIM Clasification
- Classification
- EC000216
- Class name
- Switch disconnector
- Number of knife blade fuse holders
- 2
- Mounting method
- Mounting plate
- Version as main switch
- Yes
- Max. rated operation voltage Ue AC
- 1000V
- Rated permanent current Iu
- 250A
- Number of poles
- 2
- Device construction
- Built-in device fixed built-in technique
- Suitable for floor mounting
- Yes
