Fuse link DV UQ gR 160A/500V 004325002
Specifications
- ETI Code:
- 004325002
- Description:
- DV UQ gR 160A/500V
- Class name:
- Fuse link
- sort_order:
- 8957
- id_level1:
- 2343
- l1_sort_order:
- 5171
- l2_sort_order:
- 5179
- l3_sort_order:
- 5180
- l4_sort_order:
- 5181
- l5_sort_order:
- 5191
- l6_sort_order:
- 5192
- efuse:
- 1
- Product group:
- Semiconductor Protection
- Type:
- D
- Size:
- DV
- Rated current (A):
- 160
- Rated AC voltage (V):
- 500
- Rated DC voltage (V):
- 315
- Characteristics:
- gR
- Breaking capacity AC (kA):
- 50
- Breaking capacity DC (kA):
- 8
- Application:
- For protection of semiconductor devices
- Indicator:
- Top fuse status indicator
- Power dissipation (W):
- 71
- Operating joule integral (A2s):
- 24.000
- Standards:
- IEC 60269-4
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400052186
- Net weight of the product
- 210 g
- Customs tariff
- 85361090

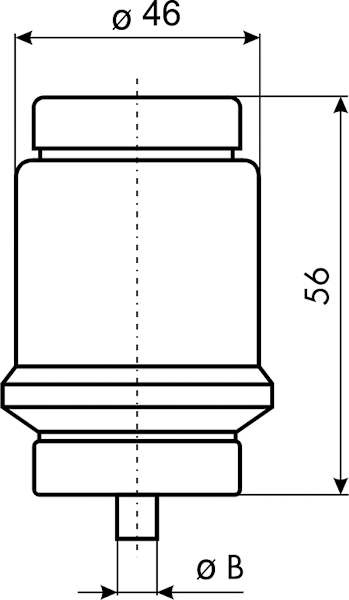

- logis_net_width
- 46 mm
- logis_net_height
- 56 mm
- logis_net_depth
- 46 mm
Basic packaging
- Basic packaging quantity
- 10
- EAN code for a basic packaging
- 3838895012306
- Basic packaging weight
- 2.02 kg
Transport packaging
- Transport packaging quantity
- 60
- EAN code for a transport packaging
- 3838895166221
- Transport packaging weight
- 12.6 kg
- Pallet quantity
- 3120
ETIM Clasification
- Classification
- EC000099
- Class name
- D-system fuse link
- Rated voltage DC
- 315
- Application
- For protection of semiconductor devices
- Breaking capacity
- 50
- Type of fuse status indicator
- Top fuse status indicator
- Max. rated operation voltage Ue AC
- 500
- Construction size
- DV
- Rated current
- 160A
- Rated voltage
- 500V
- Colour code
- Copper
- Utilization category
- Other
- Release characteristic
- Super fast (FF)
