Distribution box ECM24PO 001101016
Specifications
- ETI Code:
- 001101016
- Description:
- ECM24PO
- Class name:
- Distribution box
- sort_order:
- 5
- id_level1:
- 1844
- l1_sort_order:
- 3599
- l2_sort_order:
- 3600
- l3_sort_order:
- 3601
- l4_sort_order:
- 3619
- l5_sort_order:
- 3622
- l6_sort_order:
- 3623
- Mounting type:
- Flush mounted
- Rated current (A):
- 63
- Rated voltage (V):
- 400
- IP rating:
- IP40
- Number of modules (Total/per row):
- 24 / 12
- Frame size (Number of rows):
- 2
- Door (material, color):
- Plastic, white
- Enclosure base (material, color):
- Plastic, white
- Number of PE/N terminals (connections):
- 13 / 13
- Glow wire test (°C):
- 650
Documents
Logistic Data
Product
- Net weight of the product
- 1.444 kg
- Customs tariff
- 85381000
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895456865
- Basic packaging weight
- 1.338 kg
Transport packaging
- Transport packaging quantity
- 5
- EAN code for a transport packaging
- 3838895456872
- Transport packaging weight
- 7.22 kg
- Pallet quantity
- 140
ETIM Clasification
- Classification
- EC000214
- Class name
- Small distribution board
- Degree of protection (IP), front side
- IP 40
- Rated voltage
- 400
- Rated current
- 63
- Mounting method
- Other
- Width in number of modular spacings
- 24
- Type of covering
- Door
- Cover model
- With notch
- Transparent cover/door
- Yes
- Housing material
- Plastic
- Extension possible
- No
- Colour
- Other
- RAL-number
- 7035
- Degree of protection (IP)
- IP40
- With lock
- Yes

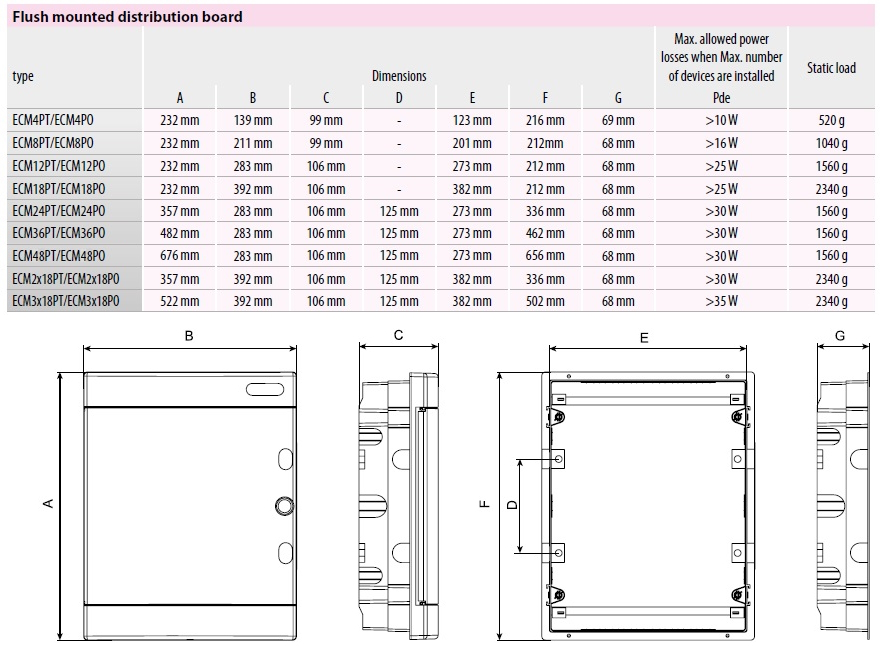

Images & Diagrams
