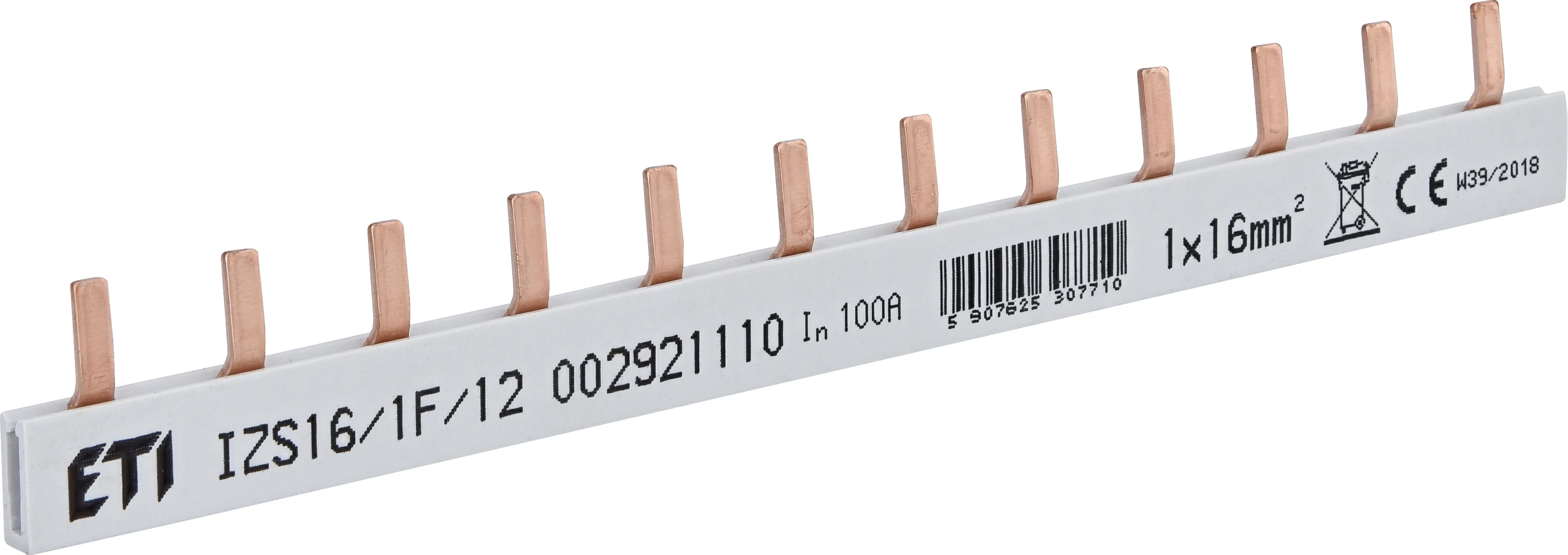

Insulated busbar IZS16/1F/12 (0,21) 002921110
Specifications
- ETI Code:
- 002921110
- Description:
- IZS16/1F/12 (0,21)
- Class name:
- Insulated busbar
- sort_order:
- 5
- id_level1:
- 1844
- l1_sort_order:
- 3599
- l2_sort_order:
- 3781
- l3_sort_order:
- 3788
- l4_sort_order:
- 3789
- l5_sort_order:
- 3794
- l6_sort_order:
- 3795
- Function:
- Section rails
- Type:
- Pin type
- Rated current (A):
- 100
- Rated voltage (V):
- 500 V AC
- Rated cross section:
- 16
- Lenght in modules:
- 12
- Number of phases:
- 1
- Type accessories:
- Section rails
- For use with:
- ETIMAT 6, ETITEC, SV, VLD01, ETIMAT P10
Documents
Logistic Data
Product
- EAN code for a single product
- 5907625307710
- Net weight of the product
- 0.05 kg
- Customs tariff
- 85389099
Basic packaging
- Basic packaging quantity
- 40
- EAN code for a basic packaging
- 5907625307727
- Basic packaging weight
- 2 kg
Transport packaging
- Transport packaging quantity
- 480
- EAN code for a transport packaging
- 5907625307734
- Transport packaging weight
- 24 kg
- Pallet quantity
- 15840
ETIM Clasification
- Classification
- EC000215
- Class name
- Phase busbar
- Rated voltage
- 500 V AC
- Rated current
- 100
- Number of phases
- 1
- Module width
- 17.8mm
- Cross section
- 16mm²
- Length
- 210mm
- Rated permanent current Iu
- 100A
- Type of electric connection
- Pin
- Insulated
- Yes
